Ball Valve 1630 Series | 4G Ghidini

Ball Valve 1630 Series | 4G Ghidini: Precision and Reliability for Every Industrial Application

Experience unmatched performance and dependability with the Ball Valve 1630 Series | 4G Ghidini. This robust valve is built for industrial environments where efficiency and safety come first. Designed to handle demanding tasks, it ensures smooth operation every time, giving you peace of mind in your daily processes.

Features & Benefits of the Ball Valve 1630 Series | 4G Ghidini

  • Superior Build Quality: Made from top-grade materials, the Ball Valve 1630 Series is crafted to resist corrosion, withstand high pressures, and perform reliably under tough conditions.
  • Effortless Operation: The ergonomic lever offers smooth and precise control, making it easy to open or close the valve with minimal effort.
  • Leak-Proof Design: Engineered with a tight seal, this valve prevents leaks, ensuring your systems stay secure and efficient.
  • Versatile Application: Suitable for a wide range of industrial uses, from water management to chemical processing, thanks to its durable construction and compatibility with various media.
  • Long-Lasting Performance: Built to last, the 1630 Series minimizes maintenance needs, reducing downtime and saving you valuable resources.

Advanced features set the Ball Valve 1630 Series | 4G Ghidini apart. Its full-bore design allows maximum flow with minimal resistance, optimizing efficiency in your operations. The valve is also simple to install, fitting seamlessly into most piping systems, which accelerates project timelines and simplifies maintenance procedures.

Safety is a priority with the 1630 Series. The robust locking mechanism prevents accidental operation, while the clear open/close indication ensures that users always know the valve’s status. With this valve, you can focus on your tasks knowing your systems are both safe and dependable.

Choose the Ball Valve 1630 Series | 4G Ghidini for a solution that delivers top-tier performance, ultimate reliability, and straightforward operation. It’s the trusted choice for professionals who demand quality and consistency in industrial settings.


Type : 163050
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

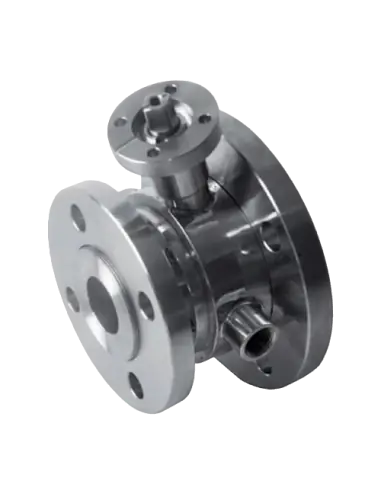

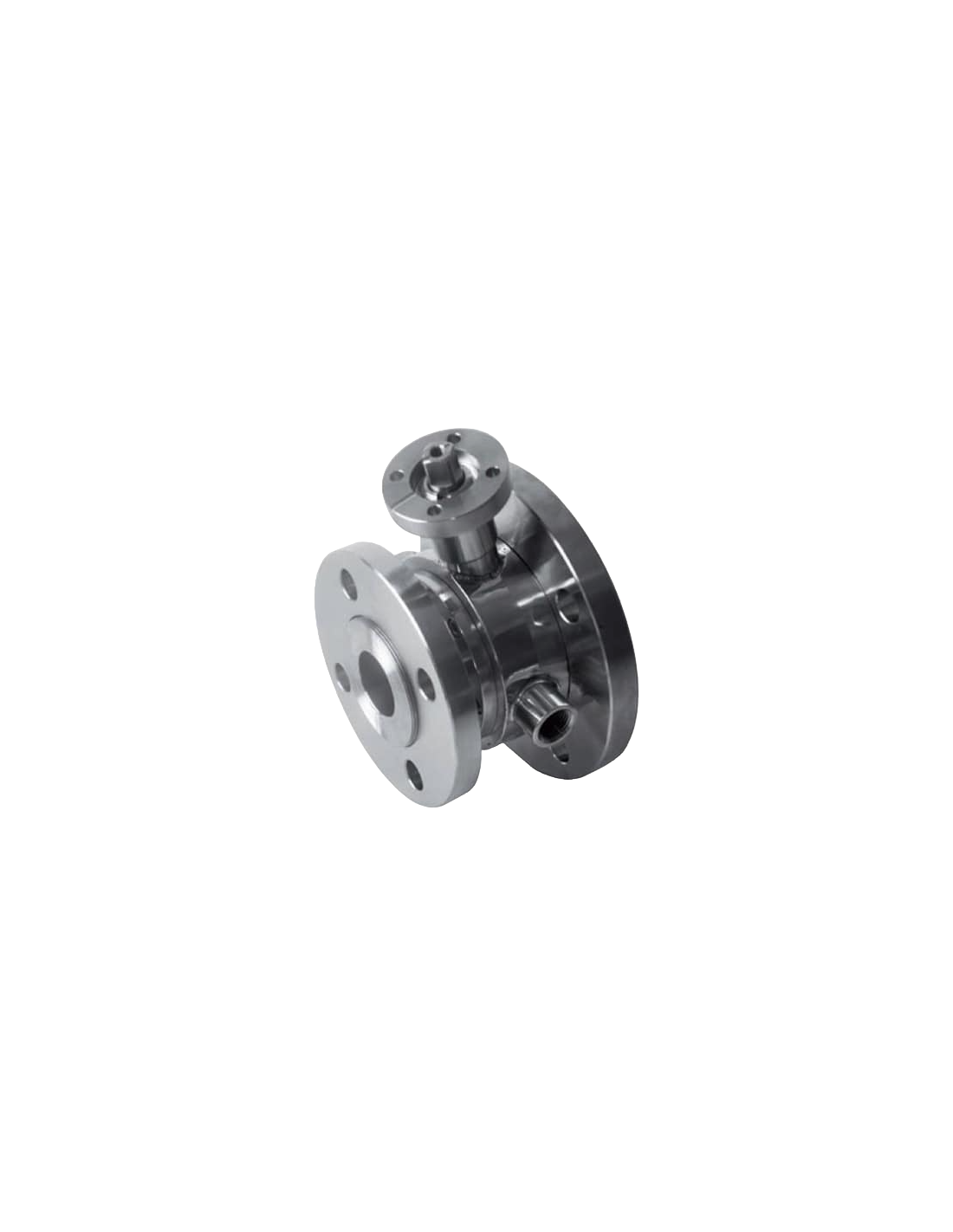

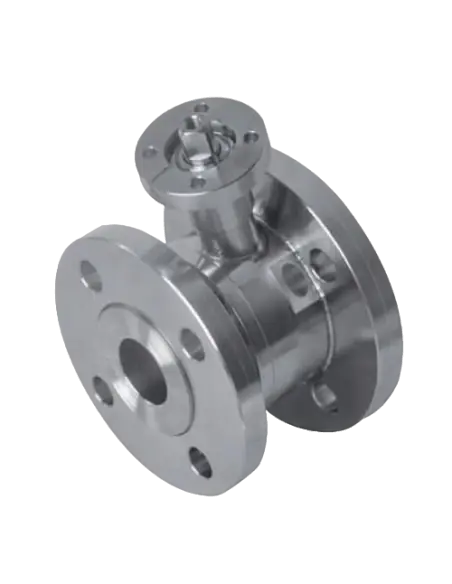

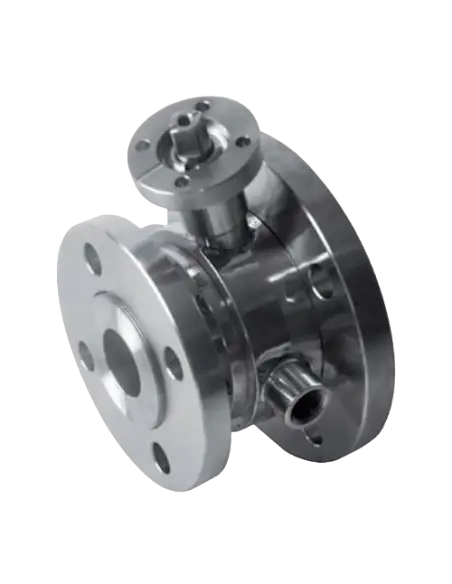

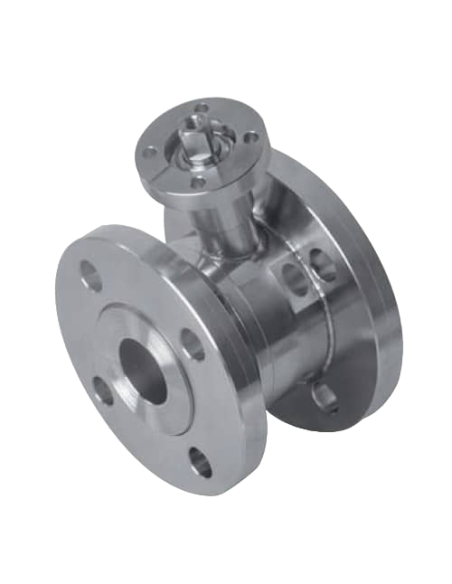

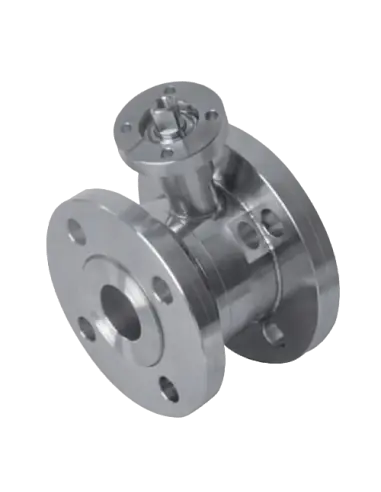

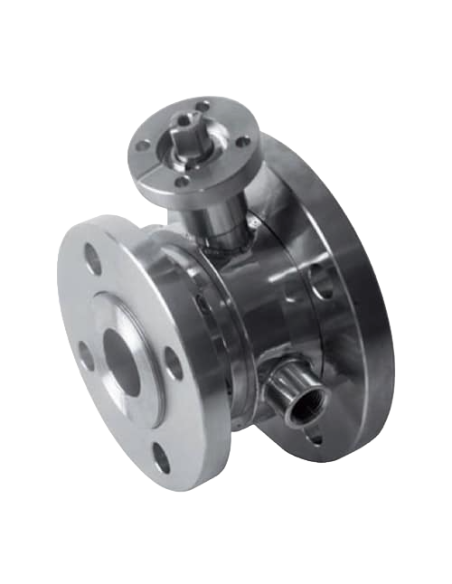

TWO way ball valve STEM BENT BOTTOM with “INTEGRAL SEAL” / TWO-way ball valve STEM BENT BOTTOM with “INTEGRAL SEAL” with HEATING JACKET

Use: Valve for tank bottom

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

Drive: ISO 5211 – DIN 3337 flange for actuator

Connections: Flange-Flange, tank side flange fixed and revolving threaded flange according to UNI EN 1092-1:2003 on outlet side

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN40 to DN125

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

• MANUAL with LEVER Kit

• Counterflanges for Tank
