Ball Valve 1301 Series | 4G Ghidini

Ball Valve 1301 Series | 4G Ghidini – Reliable Performance for Industrial Demands

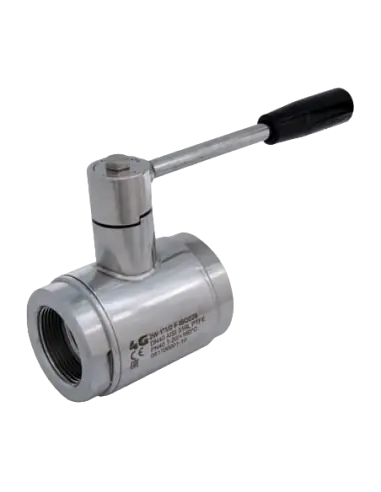

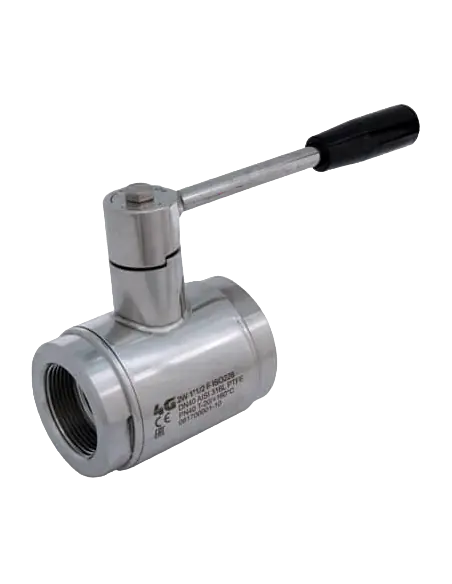

The Ball Valve 1301 Series | 4G Ghidini is engineered for reliable performance and long-lasting operation in demanding industrial environments. Built with precision and strength, this valve is designed to control the flow of liquids and gases efficiently, making it a trusted solution for numerous industrial applications.

Features & Benefits of Ball Valve 1301 Series | 4G Ghidini

  • High-Quality Materials: Constructed from robust brass or stainless steel, the Ball Valve 1301 Series offers exceptional resistance to corrosion and wear, ensuring dependable operation even in the toughest conditions.
  • Full Bore Design: The full bore construction allows for maximum flow with minimal pressure loss, making it ideal for demanding systems that require efficient throughput and reduced energy consumption.
  • Easy Operation: With a quarter-turn handle, switching flow on or off is quick and simple, reducing effort and minimizing the risk of leaks or accidental opening. This straightforward design provides peace of mind for everyday use.
  • Durable Sealing: Featuring high-integrity PTFE seals, the valve maintains a secure, leak-proof connection under varying pressures and temperatures, safeguarding your system from unplanned downtime.
  • Wide Compatibility: The compact size and versatile fitting options ensure seamless integration into existing pipelines and machinery, supporting an easy and hassle-free installation process.
  • Maintenance-Free Design: Thanks to its self-lubricating components and precise engineering, the Ball Valve 1301 Series operates smoothly for extended periods without the need for frequent maintenance or servicing.

By choosing the Ball Valve 1301 Series | 4G Ghidini, you invest in a product that delivers consistent, trouble-free performance, helps prevent costly system interruptions, and boosts the overall efficiency of your operations. Its reliable construction, user-friendly design, and advanced sealing technology make it the smart choice for anyone looking for quality and ease of use in one dependable solution.

Experience seamless flow control with the Ball Valve 1301 Series | 4G Ghidini – built for safety, efficiency, and durability in industrial use.


Type : 130104
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • NPT
  • Revolving Threaded Flanges
  • Butt Weld
  • Aceptik
  • Clamp
  • ISO 228-1
  • DIN 11851
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

from 1/4” to 4”

from 1” to 4”

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
