A simple construction of double sensors and pucks in a uniform size is now possible. With our new WDF in combination with the MB series, you can easily equip the drives and fittings in different sizes with one and the same double sensor or puck, as the unit has an interface on the top in accordance with VDI/VDE 3845, a drilling pattern of 80x30 mm and a shaft height of 20 mm. This saves time during assembly and also brings a price advantage, as different components are no longer required from the sensor manufacturers.
Brackets - VDI - VDE - MB-WDF | Eurotec

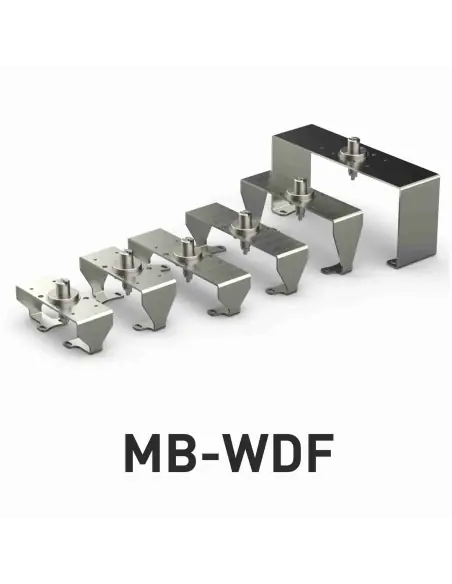

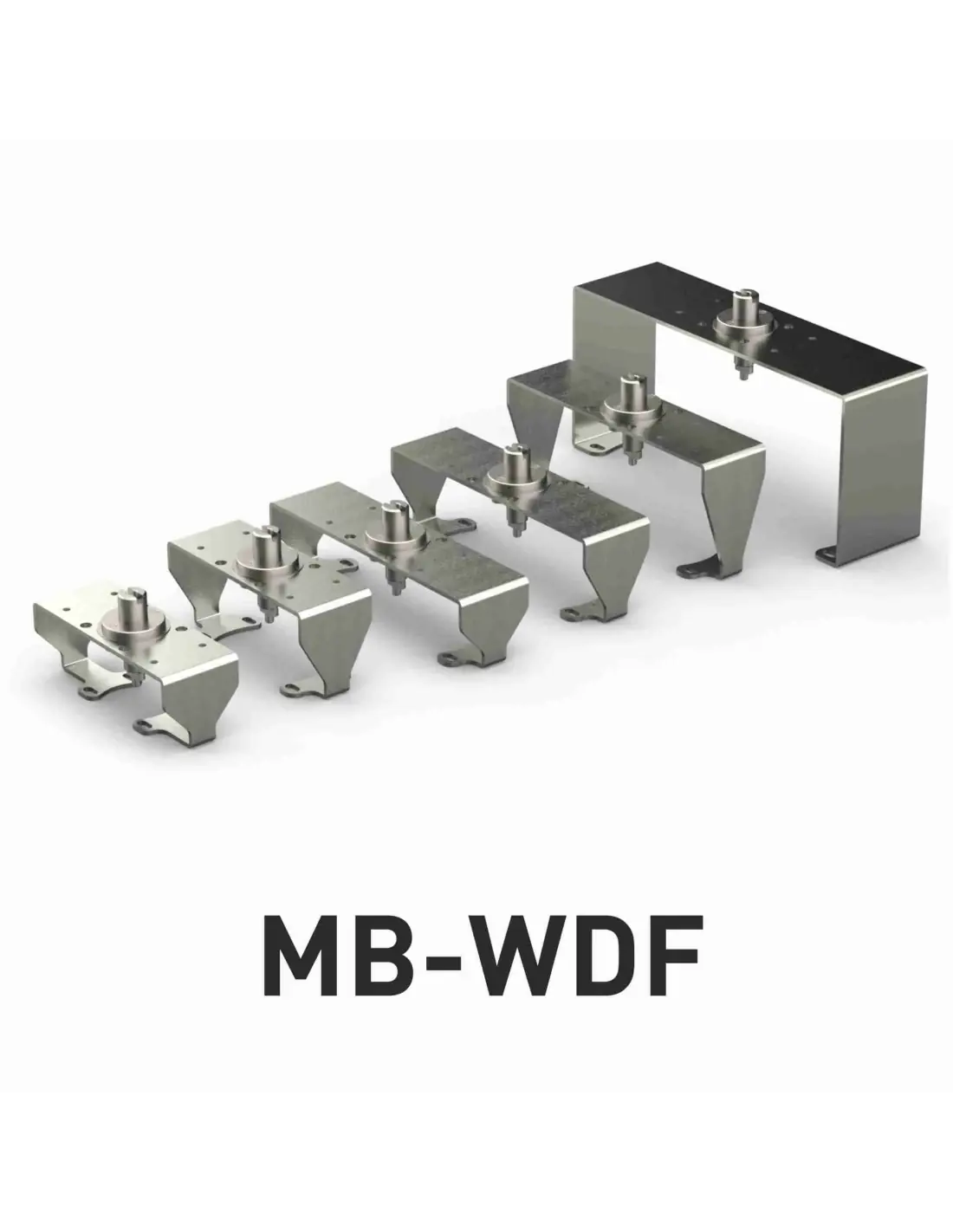

Eurotec VDI/VDE Brackets – MB-WDF
Eurotec MB-WDF brackets are used for mounting double sensors or pucks on pneumatic quarter-turn valve actuators. The assembly combines the MB series with the WDF element, allowing the same sensor or puck to be installed across different actuator sizes. This supports standardization and simplifies inventory for maintenance and retrofit projects.
Mechanical Interface
- Top mounting standard: VDI/VDE 3845
- Top drilling pattern: 80 x 30 mm
- Shaft height: 20 mm
- Compatible with MB series brackets
- For use on pneumatic actuators for 90° valve operation
Functional Role
Brackets do not contact process media. Their function is mechanical: ensuring correct spacing, alignment, and secure connection between actuator and position sensor. This is critical for reliable position feedback in process control loops.
The MB-WDF solution reduces the need for actuator-size-specific accessories. This is relevant for maintenance, retrofit, and stock standardization of valve assemblies with limit switch boxes, double sensors, or pucks.
Applications
Used on automated ball valves, butterfly valves, and plug valves with pneumatic rack & pinion or scotch yoke actuators. Position signals are typically interfaced with PLCs, DCS, or local panels for open/close indication. Suitable for water, steam, air, inert gases, and compatible process fluids.
Standards and Certifications
Eurotec production is certified to DIN EN ISO 9001:2015 and ISO/IEC 80079-34 for equipment and protective systems intended for use in explosive atmospheres. Ex suitability of the complete assembly depends on the sensor, switch box, actuator, and installation method.
FAQ
When are MB-WDF brackets selected?
When a common VDI/VDE 3845 interface is required for double sensors or pucks across multiple actuator sizes.
What is checked during maintenance?
Bolt torque, shaft alignment, mechanical play, corrosion, and correct sensor switching at end positions.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
