Adaptors - VDI - VDE - WV | Eurotec

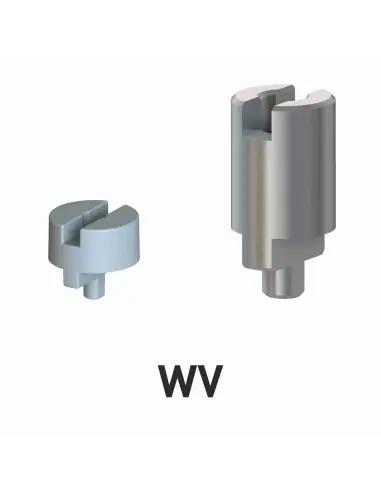

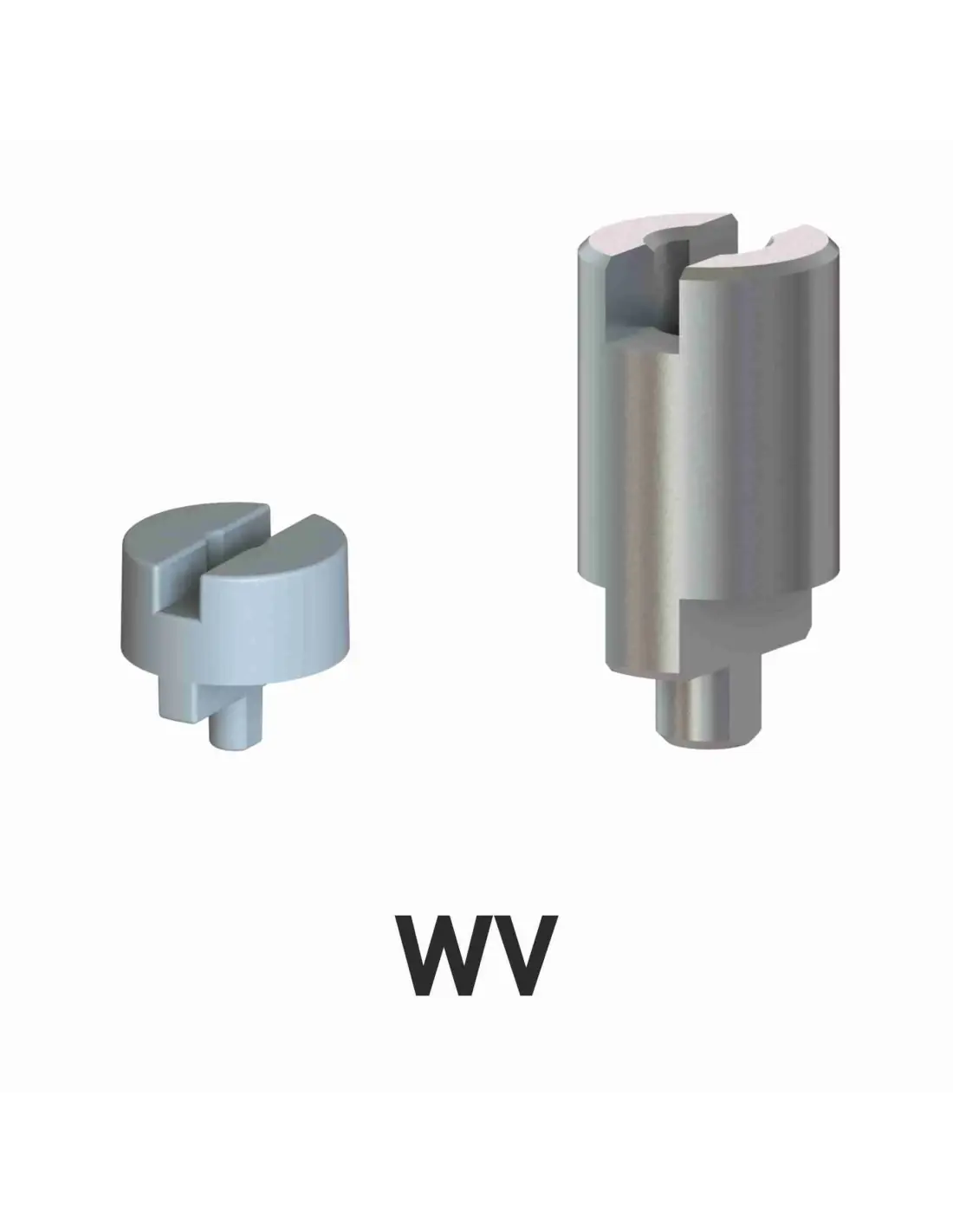

Eurotec VDI/VDE – WV Shaft Extensions
Eurotec WV shaft extensions are designed for pneumatic rotary actuators with VDI/VDE 3845 interface. They are used when the actuator shaft height is insufficient for proper coupling with limit switch boxes, dual sensors, pucks, or visual position indicators.
Variants
- SI-WV10: Polypropylene shaft extension, length 10 mm.
- Stainless steel version: AISI 303 / 1.4305, length 16 mm.
Functional Role
WV extensions do not contact process media. Their function is mechanical: transmitting rotary motion from the actuator shaft to the position feedback or indication device.
Correct extension selection minimizes:
- axial load on the switch box shaft,
- lateral forces from misalignment,
- incomplete limit switch activation,
- mechanical backlash in open/close signaling.
Use with Brackets and Sensors
WV extensions are used with VDI/VDE-compliant brackets when actuator shaft height does not match the required feedback device height. In installations with varying actuator sizes, they enable adaptation of the same switch box or sensor family without altering the overall assembly.
Applications
Used in automated ball valves, butterfly valves, and plug valves with pneumatic rack & pinion or scotch yoke actuators. Position signals are typically routed to PLCs, DCS, automation panels, or local indicators. Suitable for water, steam, air, and compatible process fluids.
FAQ
When is a WV extension required?
When the actuator shaft is lower than the required coupling height for the switch box or sensor.
What is checked during maintenance?
Shaft alignment, mechanical play, extension wear, proper fastening, limit switch activation, and stable open/close indication.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
