A simple construction of double sensors and pucks in a uniform size is now possible. With our new WDF, you can easily equip the drives and fittings of different sizes with one and the same double sensor or puck. This saves time during assembly and also brings a price advantage, as different components are no longer required from the sensor manufacturers.
Adaptors - VDI - VDE - WDF | Eurotec

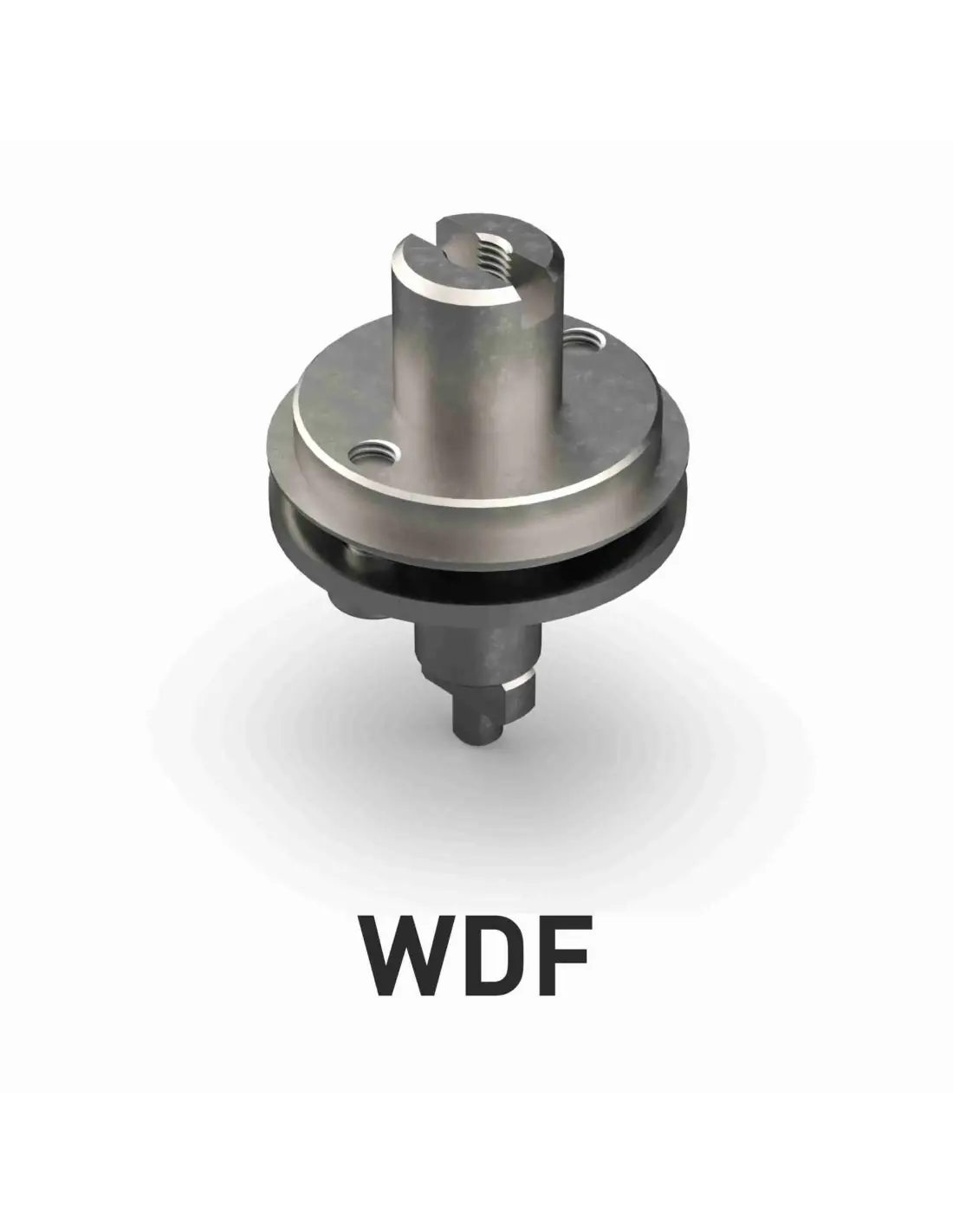

Eurotec VDI/VDE – WDF Adaptors
Eurotec WDF adaptors are mechanical interfaces designed for mounting double sensors or pucks on pneumatic quarter-turn valve actuators. Their primary function is to standardize the mechanical interface, enabling the same position sensor or puck to be used across actuators of different sizes without requiring sensor type changes.
Functional Role
The WDF adaptor does not contact process media. It is installed on the actuator’s upper section or combined with suitable brackets to achieve correct geometry for open/close position sensing. Typical use cases include:
- valve end position indication,
- double sensor integration,
- mounting pucks for inductive sensors,
- retrofit on existing valve-actuator assemblies,
- spare part standardization in plants with multiple actuator types.
Mechanical Interface
When combined with the MB-WDF series, the upper interface complies with VDI/VDE 3845, featuring an 80 x 30 mm drilling pattern and 20 mm shaft height. This allows the use of common double sensors or pucks across different actuator sizes, minimizing the need for sensor re-selection per actuator dimension.
Selection Criteria
Selection is based on:
- double sensor or puck type,
- actuator drilling pattern,
- shaft height,
- required VDI/VDE 3845 compatibility,
- available space above actuator,
- installation environment and Ex switch box requirements.
Standards and Certifications
Eurotec states compliance with DIN EN ISO 9001:2015 for development, production, and distribution of industrial valve automation components. ISO/IEC 80079-34 is referenced for manufacturing equipment intended for explosive atmospheres. Ex suitability of the final assembly depends on the sensor, switch box, actuator, and installation.
FAQ
When is WDF used?
When a standardized mechanical interface for double sensors or pucks is required across different rotary actuators.
What is checked during maintenance?
Bolt tightening, shaft alignment, mechanical play, corrosion, and correct signal switching at open/close positions.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
