Swing check valve Cast iron 10K - F7373

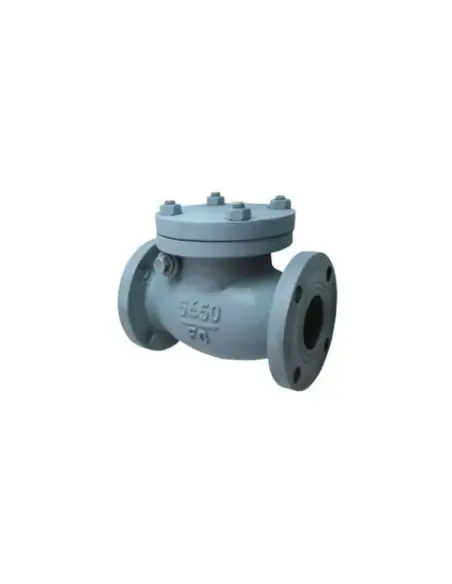

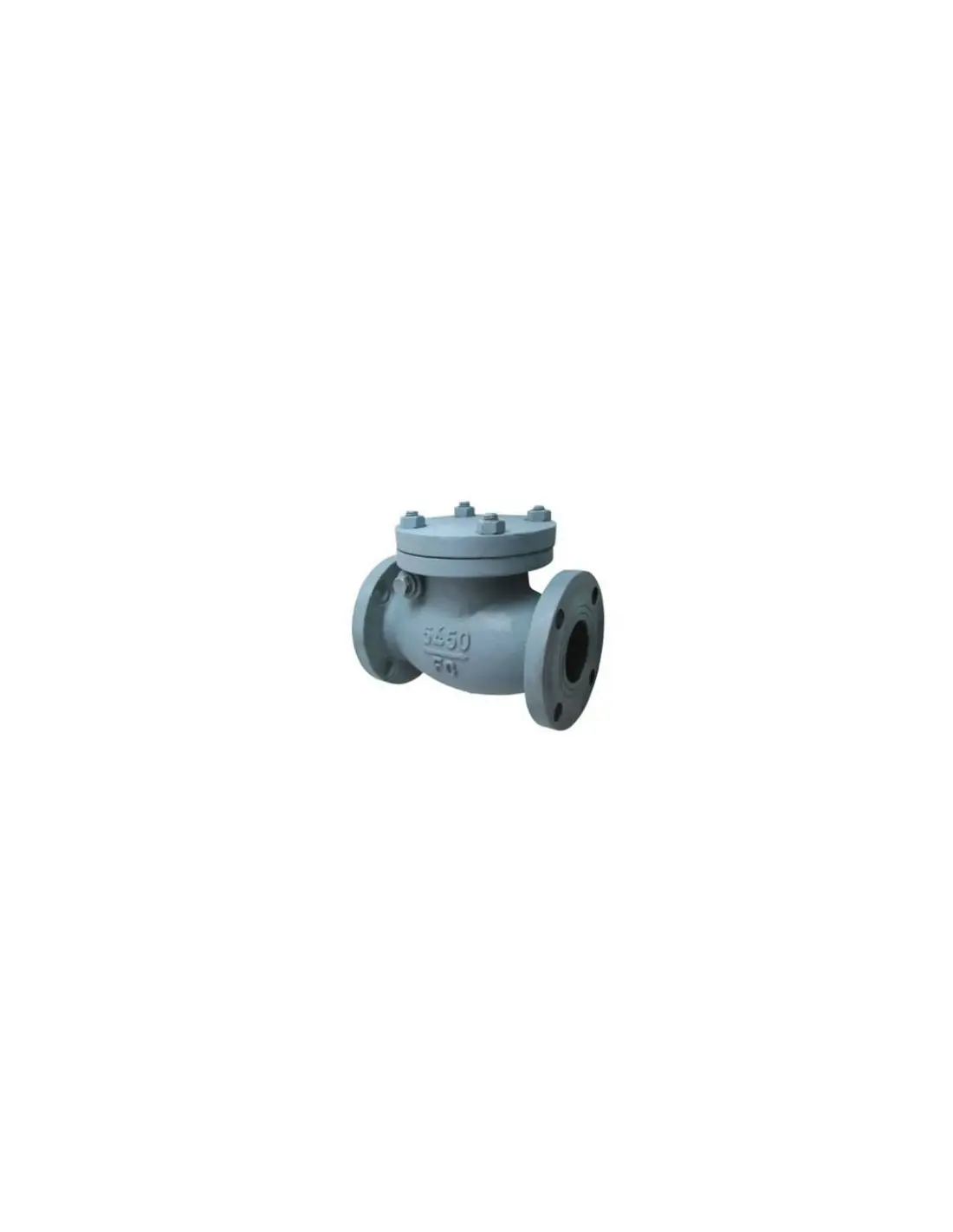

Cast Iron Swing Check Valve JIS 10K F7373

Flanged swing check valve, straight-through flow pattern, designed for marine piping systems and auxiliary industrial water installations. Operation is based on line differential pressure, with no actuator or external manual intervention required.

Standards and Test Pressure

This series is manufactured in accordance with JIS F7373-1996 and tested per JIS F7400-1996. For the JIS 10K version, hydrostatic shell test pressure is 2.1 MPa, and seat test pressure is 1.54–0.4 MPa.

Construction Materials

• Body: FC200 cast iron
• Cover: FC200 cast iron
• Disc: BC6 bronze
• Seat: BC6 bronze
• Gasket: non-asbestos
• Connection: flanged
• Pressure class: JIS 10K

The combination of cast iron body with bronze disc and seat is standard for water lines requiring mechanical backflow prevention with limited pressure drop.

Dimensions

Available sizes range from DN50 to DN200. Face-to-face length varies from 210 mm (DN50) to 480 mm (DN200), as per series dimensional table.

Operational Characteristics

The disc opens when inlet pressure exceeds disc resistance and closes when flow decreases or reverse pressure occurs. At low flow rates, unstable disc position, noise, or hinge pin wear may occur. Valve selection should consider actual flow and installation position, not only nominal diameter.

Typical Applications

• Cooling pump discharge lines
• Fresh and seawater networks (subject to compatibility check)
• Auxiliary ship circuits
• Ballast or bilge piping where JIS 10K is specified
• Industrial water lines with JIS flanges

Maintenance

Periodic inspection should include seat cleaning, verification of free disc movement, hinge wear, and leakage under backpressure. In systems with suspended solids, more frequent seat inspection is recommended.
