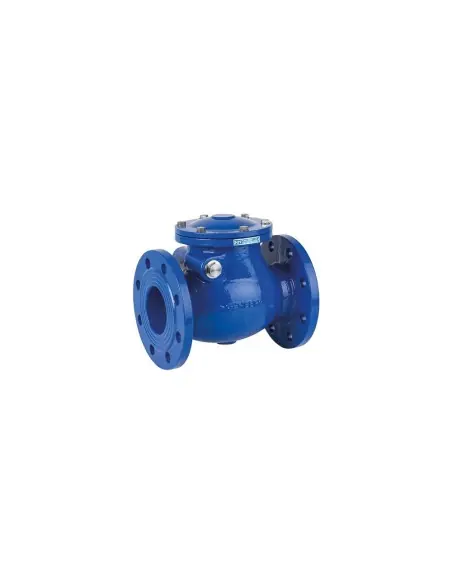

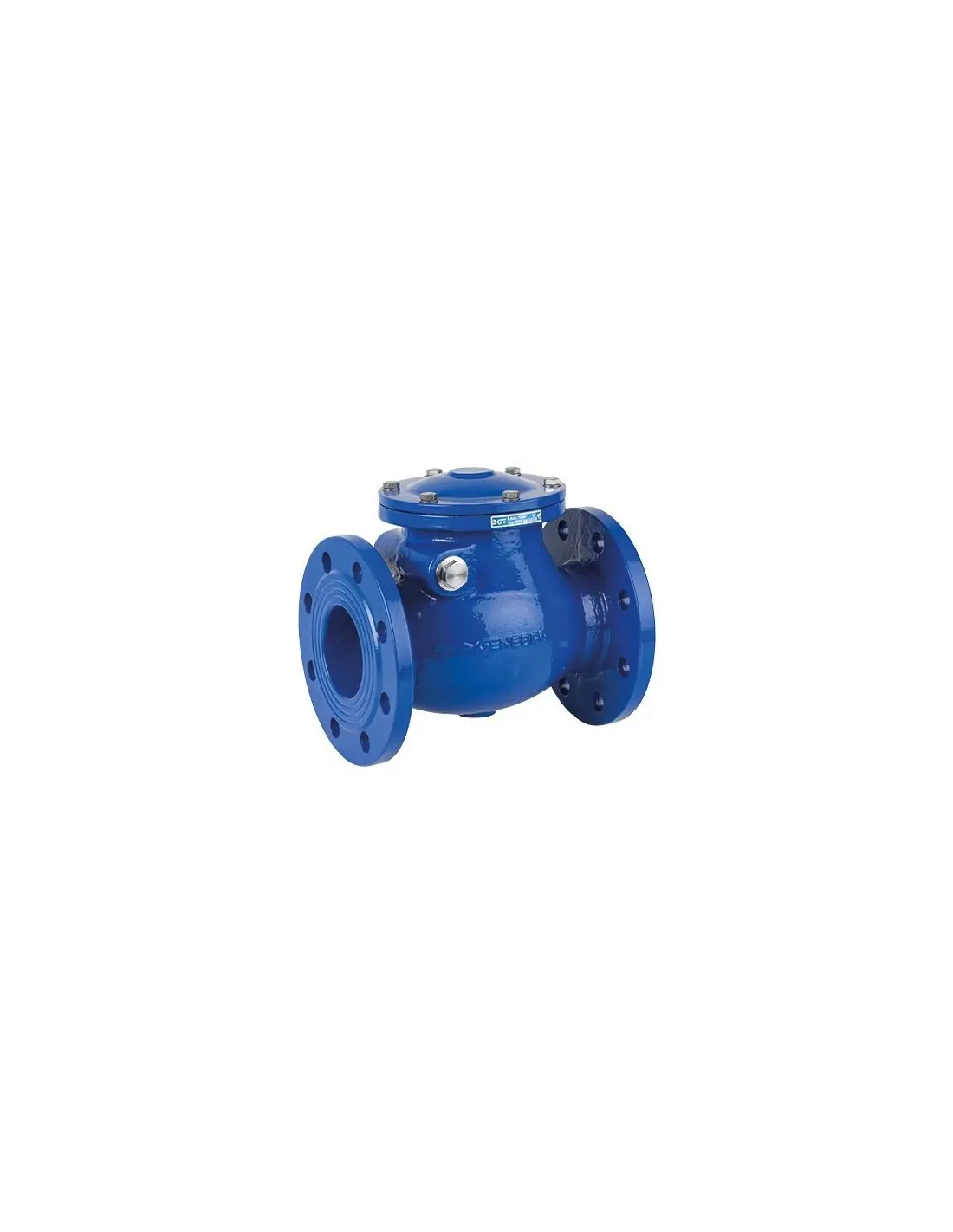

Genebre 2455 – Flanged Swing Check Valve PN16

The Genebre 2455 is a swing-type check valve with flanged ends, designed for water lines and compatible liquids where reverse flow prevention is required without the use of an actuator. The disc opens by differential flow pressure and closes automatically when flow decreases or reverses.

Construction

Body and cover: EN-GJS-400 / GGG-40 ductile iron
Disc: EN-GJS-400 with EPDM lining
Seat: Bronze C954
Shafts: AISI 420
Bolts/nuts: AISI 304
Internal and external epoxy coating
Face-to-face: EN 558 Series 48 / DIN 3202 F6
Flanges: EN 1092 PN16

Operating Limits

Maximum working pressure is 16 bar. Operating temperature range: -10°C to +120°C. Pressure-temperature ratings decrease at higher temperatures; selection must consider actual pressure/temperature pairs, not only the PN class.

Dimensions

Available sizes: DN50 to DN300 (2" to 12"). Weights range from 9.2 kg (DN50) to 137.5 kg (DN300), relevant for pipe support and installation handling.

Applications

Suitable for water distribution, pump stations, HVAC, industrial water, and non-hazardous fluids compatible with EPDM, ductile iron, and bronze. Not recommended for fluids that attack EPDM or cause seat fouling.

Selection Considerations

DN selection should account for flow rate, pressure drop, minimum velocity for stable disc opening, and risk of water hammer. Installations near pumps or elbows require assessment of turbulence, as disc may oscillate under unstable flow.

FAQ

Does it have a spring?
No spring is specified; operation is swing check type only.

When is the 2455 selected?
For PN16 flanged lines requiring a swing check valve with ductile iron body and EPDM-lined disc.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJS-400-18U-LT

Pressure Rating (Options)

PN 16

Seat (Options)

Bronze C954

Datasheet and documents

Technical Sheet

Description

Body: GGG-40. Disk: with EPDM coating. Max. pressure: 16 bar. Temperature: -10°C +120°C. Face to Face according to EN558-1/48 (DIN3202 F6).

Reference: 2455

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2455 09	SWING CHECK VALVE FLANGES PN16 2"	1	9.2	1/2
2455 10	SWING CHECK VALVE FLANGES PN16 21/2"	1	11.8	1/2
2455 11	SWING CHECK VALVE FLANGES PN16 3"	1	15.2	1/1
2455 12	SWING CHECK VALVE FLANGES PN16 4"	1	20.1	1/1
2455 13	SWING CHECK VALVE FLANGES PN16 5"	1	28.7	1/1
2455 14	SWING CHECK VALVE FLANGES PN16 6"	1	39.1	1/1
2455 16	SWING CHECK VALVE FLANGES PN16 8"	1	61.6	1/1
2455 18	SWING CHECK VALVE FLANGES PN16 10"	1	95.5	1/1
2455 20	SWING CHECK VALVE FLANGES PN16 12"	1	137.5	1/1
