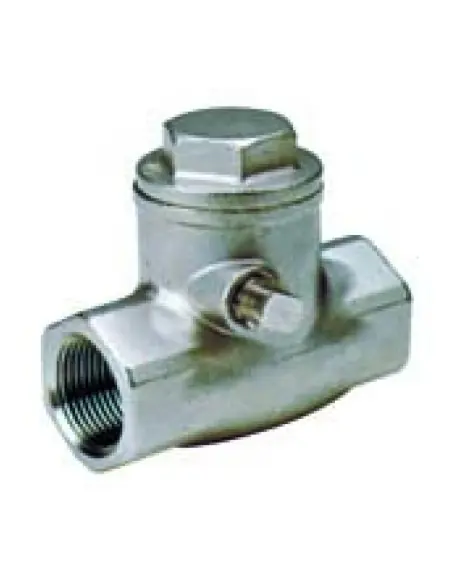

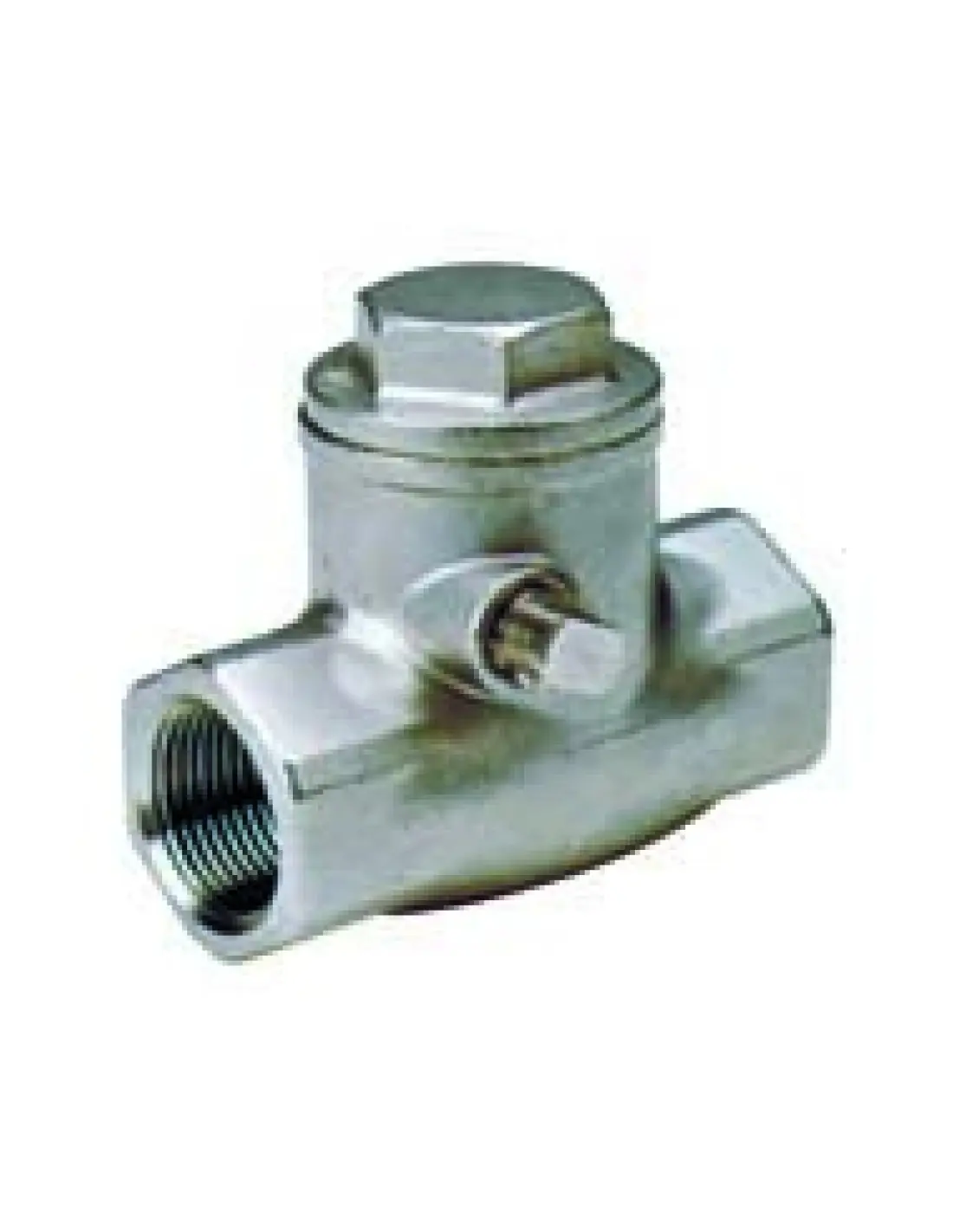

Genebre 2430N – NPT Swing Check Valve

The Genebre 2430N is a swing-type check valve with threaded NPT ends conforming to ASME B1.20.1, designed to prevent reverse flow in small process lines. The disc opens by differential fluid pressure and closes when flow decreases or reverses. No actuator is required; operation is fully automatic.

Construction and Materials

Body, cover, disc: stainless steel 1.4408 / CF8M
Shaft: AISI 316
Seat/seal: PTFE
Sizes: 1/2" to 2"
Pressure class: PN16
Connection: NPT threaded

Operating Limits

Maximum working pressure: 16 bar. Maximum temperature: 180°C. Product data specifies 16 kg/cm² at 120°C and 10 kg/cm² at 180°C. Valve selection should be based on the actual pressure–temperature combination in service.

Hydraulic Data

Kv values: 2.2 / 4.4 / 8.2 / 16.4 / 24.1 / 44.2 m³/h for 1/2", 3/4", 1", 1¼", 1½", and 2" sizes. Use these for pressure drop calculations, especially at low flow rates where the disc may not remain fully open.

Installation

Install in horizontal pipelines or vertical lines with upward flow. Piping must be free of debris and welding residues. Recommended straight lengths: 10×DN upstream and 3×DN downstream from pumps, elbows, reducers, or other valves.

Applications

Suitable for water, air, auxiliary process circuits, and compatible liquids or gases. Confirm compatibility with CF8M, AISI 316, and PTFE. For chlorinated, acidic, or hot fluids, assess corrosion and pressure derating.

FAQ

What is the difference from Genebre 2430?
The 2430N uses NPT threads; the 2430 uses ISO/EN threads.

Is it repairable?
Manufacturer documentation indicates repair is generally not cost-effective; replacement is recommended.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 16

Datasheet and documents

Description

Constr. stainless steel CF8M (316) investment casting.

Seals: PTFE: gas threaded ends DIN 259.

Max. pressure: 16 kg/cm2 at 120ºC - 10 kg/cm2 at 180ºC.

Min. temp.: -30ºC.

Reference: 2430N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2430N 04	SWING CHECK VALVE 1/2" NPT	1	0.327	10/80
2430N 05	SWING CHECK VALVE 3/4" NPT	1	0.538	6/48
2430N 06	SWING CHECK VALVE 1" NPT	1	0.763	4/28
2430N 07	SWING CHECK VALVE 1 1/4" NPT	1	1.074	3/24
2430N 08	SWING CHECK VALVE 1 1/2" NPT	1	1.659	1/12
2430N 09	SWING CHECK VALVE 2" NPT	1	2.347	1/10
