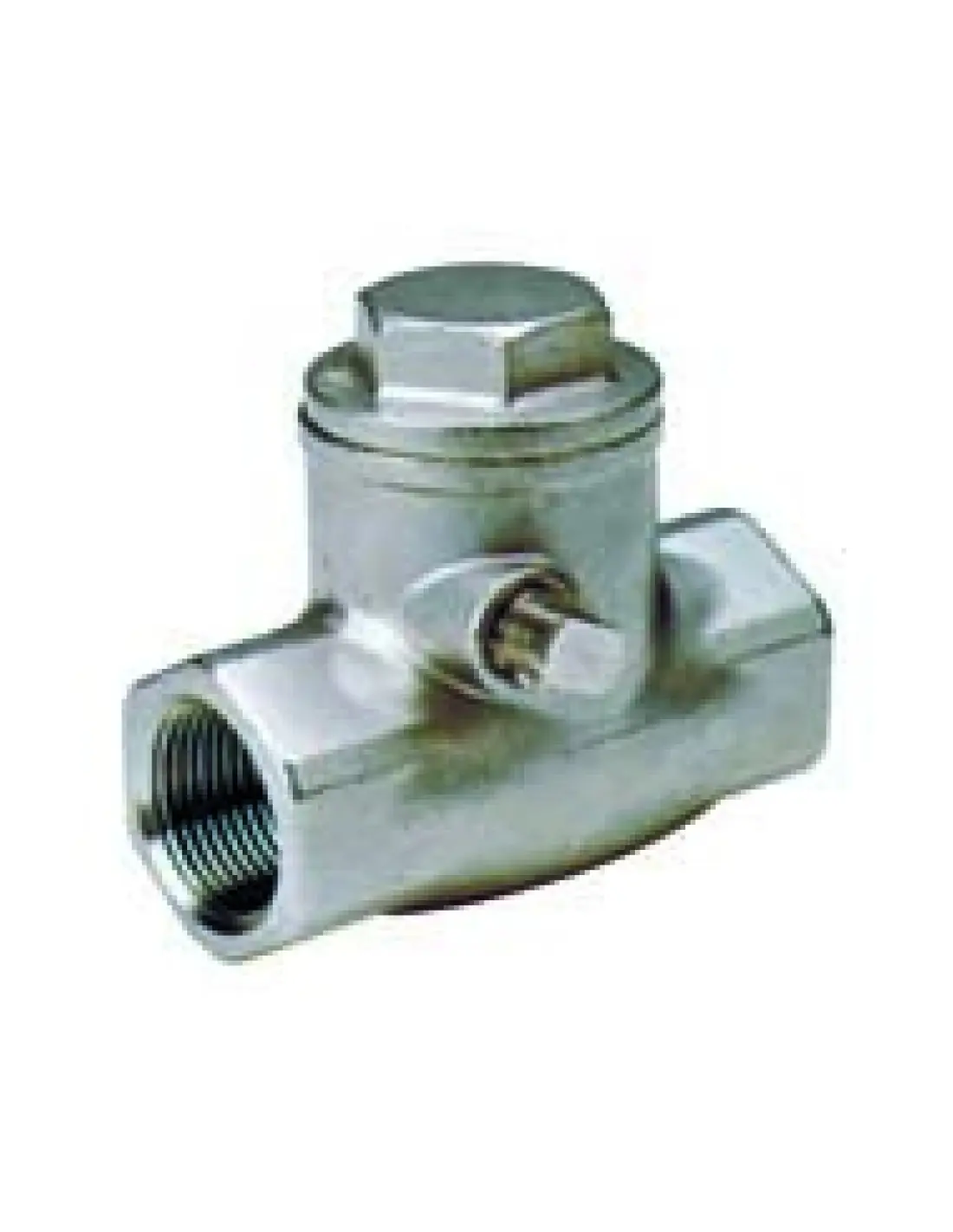

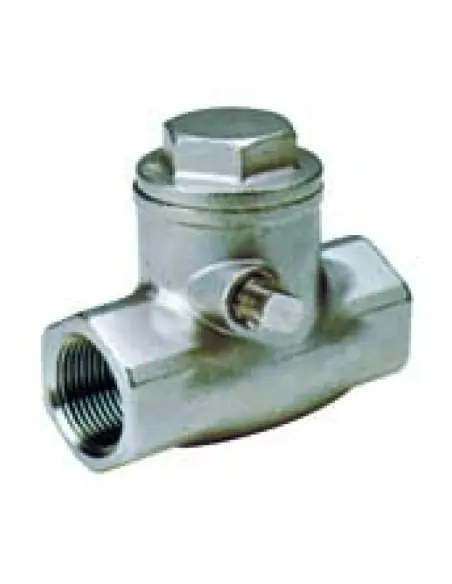

Genebre 2430 – Swing Check Valve, Threaded Ends

The Genebre 2430 is a swing-type check valve with threaded connections, designed to prevent reverse flow in small process lines and auxiliary piping. The disc opens via differential pressure and closes automatically when flow decreases or reverses. No actuator is required.

Construction & Connections

Body, cover, disc: Stainless steel 1.4408 / CF8M
Shaft: AISI 316
Seat/seal: PTFE
Ends: Threaded ISO 7-1 / EN 10226-1
Sizes: 1/2" to 2"
Pressure class: PN16

Operating Limits

Maximum working pressure is 16 bar, with a maximum temperature of 180°C. Manufacturer data specifies 16 kg/cm² at 120°C and 10 kg/cm² at 180°C. Valve selection should be based on the actual pressure–temperature combination, not just the PN rating.

Hydraulic Data

Kv values range from 2.2 m³/h at 1/2" to 44.2 m³/h at 2". Use these for pressure drop calculations and to avoid oversizing, especially at low flow rates.

Installation

Install in horizontal lines or vertical lines with upward flow. Piping must be free of debris, weld slag, and solids. Recommended straight lengths: 10×DN upstream and 3×DN downstream from pumps, elbows, reducers, or other valves to minimize turbulence.

Applications

Suitable for water, air, auxiliary process lines, and compatible industrial fluids. Confirm compatibility with CF8M, AISI 316, and PTFE. For chemical, chlorinated, or hot fluids, assess corrosion and pressure derating.

FAQ

Is it repairable? Generally not; manufacturer recommends replacement over repair.
Is maintenance required? No lubrication or scheduled maintenance needed, but periodic checks for leakage and disc movement are advised.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 16

Datasheet and documents

Description

Constr. stainless steel CF8M (316) investment casting.

Seals: PTFE: gas threaded ends ISO 7-1.

Max. pressure: 16 kg/cm2 at 120ºC - 10 kg/cm2 at 180ºC.

Min. temp.: -30ºC.

Reference: 2430

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2430 04	SWING CHECK VALVE 1/2"	1	0.327	10/80
2430 05	SWING CHECK VALVE 3/4"	1	0.533	6/48
2430 06	SWING CHECK VALVE 1"	1	0.758	4/32
2430 07	SWING CHECK VALVE 1 1/4"	1	1.06	3/24
2430 08	SWING CHECK VALVE 1 1/2"	1	1.632	1/8
2430 09	SWING CHECK VALVE 2"	1	2.335	1/10
