Strainers

Pipeline strainers are used to retain solid particles, oxides, weld residue and mechanical debris in steam, water, condensate, gas and industrial fluid systems. They are installed upstream of pressure-reducing valves, control valves, steam traps, pumps, instrumentation, heat exchangers and other equipment where contamination can damage the seat, stem, nozzle, impeller or sensing element.

This category includes Y-pattern, straight-through, Tee, Angle Tee, basket, duplex basket, cartridge, conical, temporary and special strainer constructions from ARI, Comeval, Noris, Conaco, Valvosider, Mankenberg, BLU ZAC, Tassalini and Genebre. Selection is based on flow rate, allowable pressure drop, screen perforation size or mesh, viscosity, operating temperature, design pressure, required media cleanliness, differential pressure under fouled-screen conditions and whether the screen can be cleaned in situ.

In steam and condensate service, correct orientation of the collection chamber is required, together with line draining before cover removal, gasket inspection and selection of a stainless steel screen with adequate mechanical support for high differential pressure. ARI strainers are available in Y-pattern, straight-through and butt-weld executions, with stainless steel screen or basket elements, standard or fine perforation options, Kvs values up to 1873 m³/h and temperature ratings up to 450 °C depending on body material and pressure class.

Available versions include DIN and ANSI designs, with pressure ratings from PN6 to PN160 and ASME Class 150 to 2500, and BSP, NPT, flanged and butt-weld end connections. Body materials include EN-JL1040, EN-JS1049, EN-GJL-250, 1.0619, 1.4408, 1.4571, ASTM A105N, ASTM A216 WCB, ASTM A217 WC6/C5/C12, ASTM A351 CF8/CF8M/CF3M and ASTM A352 LCB. Valvosider Y and basket strainers in DIN execution cover, as a typical range, PN10/16 up to PN160, with sizes up to DN600 or DN300 depending on design and pressure rating.

Strainers | ARI | Philippopoulos s.a.

Strainers | ARI

Strainers | ARI
Ari-Armaturen

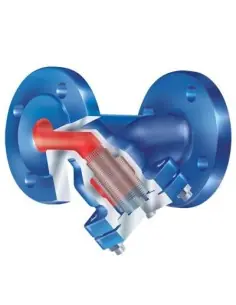

ARI Line Filters ARI line filters are specified for the retention of solid particles in steam, water, condensate, and various industrial fluids. Typical installation points include upstream of control valves, steam traps, heat exchangers, pumps, and instrumentation. Selection is based on nominal diameter (DN), pressure class (PN), body material,...
View
Strainers Y for water works UNIWAT - 630W | Comeval | Philippopoulos s.a.

Strainers Y for water works UNIWAT - 630W | Comeval

Strainers Y for water works UNIWAT - 630W | Comeval
Comeval

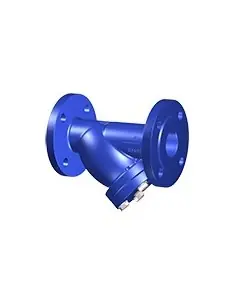

Y-Type Strainers Comeval UNIWAT 630W UNIWAT 630W are Y-type pipeline strainers designed for mechanical retention of solids in water networks. They feature a removable perforated stainless steel basket accessible via the cover. Typical installation points include upstream of pumps, control valves, water meters, heat exchangers, and HVAC equipment to reduce...
View

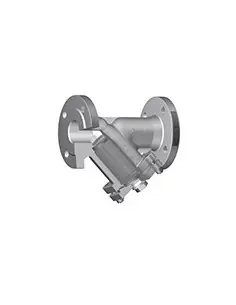

Strainers Y UNIFLOW - Fig. F0 | Comeval | Philippopoulos s.a.

Strainers Y UNIFLOW - Fig. F0 | Comeval

Strainers Y UNIFLOW - Fig. F0 | Comeval
Comeval
Y-Type Strainers Comeval UNIFLOW Fig. F0 UNIFLOW Fig. F0 are cast Y-type strainers designed for mechanical retention of solids in process lines. They utilize a removable stainless steel mesh or perforated basket, accessible via the cover, with a drain plug for blowdown prior to cleaning. These strainers protect pumps, control valves, steam traps, heat...
View
Strainers - 140 | Noris Armaturen | Philippopoulos s.a.

Strainers - 140 | Noris Armaturen

Strainers - 140 | Noris Armaturen
Noris Armaturen
Y-Type Strainers NORIS Bauform 140 NORIS Type 140 are flanged Y-strainers designed for installation upstream of measurement instruments, control valves, pumps, and process equipment sensitive to particulate contamination. Their primary function is to retain solid particles before they reach valve seats, pump impellers, or narrow instrument passages....
View
Strainers - 140-A 150LBS | Noris Armaturen | Philippopoulos s.a.

Strainers - 140-A 150LBS | Noris Armaturen

Strainers - 140-A 150LBS | Noris Armaturen
Noris Armaturen

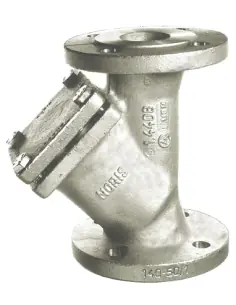

Y-Type Strainer NORIS Bauform 140-A, ANSI 150 lbs The NORIS 140-A is a flanged Y-type strainer designed for installation upstream of instrumentation, control valves, pumps, and equipment with restricted flow passages. Its primary function is to retain solid particles from the process line, thereby reducing wear on seats, impellers, and regulating...
View
Strainers - 140-A 300LBS | Noris Armaturen | Philippopoulos s.a.

Strainers - 140-A 300LBS | Noris Armaturen

Strainers - 140-A 300LBS | Noris Armaturen
Noris Armaturen
Y-Type Strainer NORIS Bauform 140-A, ANSI 300 lbs The NORIS 140-A 300 lbs is a flanged Y-type strainer designed for pipelines requiring solid particle retention upstream of instrumentation, control valves, pumps, and sensitive downstream equipment. Selection is based on piping classes with ANSI 300 lbs flanges, providing higher operating pressure than the...
View
Strainers - 141 | Noris Armaturen | Philippopoulos s.a.

Strainers - 141 | Noris Armaturen

Strainers - 141 | Noris Armaturen
Noris Armaturen

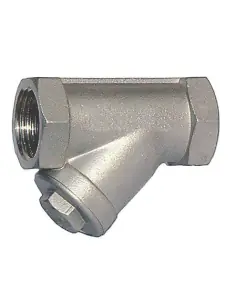

Y-Type Strainer NORIS Bauform 141 The NORIS Bauform 141 is a Y-pattern strainer with threaded pipe connections, designed for installation upstream of instrumentation, control valves, pumps, and equipment with restricted flow paths. It is used to retain solid particles in compatible industrial liquids or gases where flanged connections are not required....
View
Strainers - 146 | Noris Armaturen | Philippopoulos s.a.

Strainers - 146 | Noris Armaturen

Strainers - 146 | Noris Armaturen
Noris Armaturen

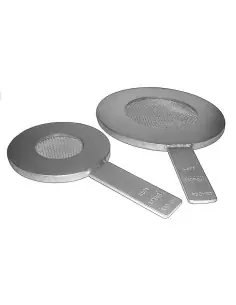

NORIS Disc Filter Bauform 146 The NORIS Bauform 146 is a disc-type solid retention filter, classified as a slice screen strainer, designed for installation between flanges. It is primarily used as a commissioning filter following construction, welding, or pipeline cleaning activities, and is positioned upstream of flowmeters, control valves, pumps, and...
View
Strainers - 148 | Noris Armaturen | Philippopoulos s.a.

Strainers - 148 | Noris Armaturen

Strainers - 148 | Noris Armaturen
Noris Armaturen

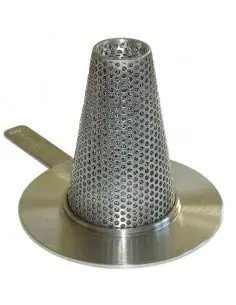

NORIS Bauform 148 Start-Up Strainer The NORIS Bauform 148 is a cap-type (hat) start-up strainer designed for installation between flanges. It is primarily used during commissioning or after piping works to retain burrs, rust, welding residues, and particulates upstream of instrumentation, control valves, pumps, and sensitive assemblies. Technical...
View
Strainers - 150 | Noris Armaturen | Philippopoulos s.a.

Strainers - 150 | Noris Armaturen

Strainers - 150 | Noris Armaturen
Noris Armaturen

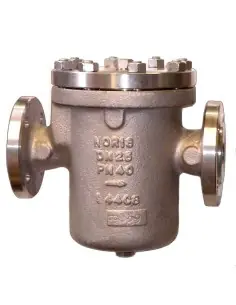

Basket Strainer NORIS Bauform 150 The NORIS Bauform 150 is a flanged basket strainer designed for mechanical debris retention in industrial pipelines. It is typically installed upstream of sensitive equipment such as oval-wheel flowmeters, pumps, turbines, and process instrumentation. The basket screen offers a large open area, which minimizes initial...
View

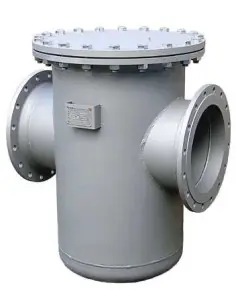

Strainers - 155 | Noris Armaturen | Philippopoulos s.a.

Strainers - 155 | Noris Armaturen

Strainers - 155 | Noris Armaturen
Noris Armaturen
NORIS Basket Strainer Bauform 155 The NORIS Bauform 155 is a welded basket strainer with a flat mesh screen, designed for installation upstream of instrumentation, control valves, pumps, and sensitive process assemblies. It is specified where retention of solid particles is required and a larger mesh area is needed compared to small inline strainers....
View
Forged strainers Y | Conaco | Philippopoulos s.a.

Forged strainers Y | Conaco

Forged strainers Y | Conaco
Conaco

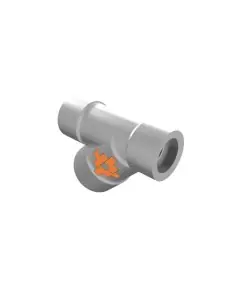

Forged Y-Strainers Conaco Type 767 Conaco Type 767 are forged Y-strainers designed for small diameter lines and high pressure classes. They are typically installed upstream of control valves, pumps, turbines, instrumentation, and process equipment where solid contaminants may cause seat wear, jamming, or measurement deviation. Construction and Pressure...
View
Strainer Division - Y Cast | Conaco | Philippopoulos s.a.

Strainer Division - Y Cast | Conaco

Strainer Division - Y Cast | Conaco
Conaco
Conaco Cast Y-Type Strainers Conaco cast Y strainers are in-line filtration devices for solid retention in industrial piping systems with ANSI pressure classes. They are installed upstream of control valves, pumps, flow meters, turbines, and process equipment to prevent damage, fouling, or measurement deviation caused by weld slag, rust, or particulate...
View
Fabricated strainers Y | Conaco | Philippopoulos s.a.

Fabricated strainers Y | Conaco

Fabricated strainers Y | Conaco
Conaco
Welded Y-Strainers Conaco Type 797 Conaco Type 797 are fabricated Y-type strainers designed for industrial pipelines with large diameters or special piping specifications. Typical installation points include upstream of pumps, control valves, turbines, flow meters, and process equipment where retention of rust, weld slag, debris, or other solids is...
View
Large strainers Y | Conaco | Philippopoulos s.a.

Large strainers Y | Conaco

Large strainers Y | Conaco
Conaco
Y-Type Strainers Large Conaco Type 717 Conaco Type 717 are large-diameter Y-type strainers designed for industrial pipelines with ANSI pressure class ratings. Typical installation points include upstream of pumps, control valves, turbines, flow meters, and process equipment where retention of rust, weld debris, or solid particulates is required to protect...
View
Forged Bar strainers Y | Conaco | Philippopoulos s.a.

Forged Bar strainers Y | Conaco

Forged Bar strainers Y | Conaco
Conaco
Y-Type Strainers Forged Bar Conaco Type 787 Conaco Type 787 Y-type strainers are manufactured from forged bar stock for small diameter, high-pressure piping systems. They are typically installed upstream of control valves, pumps, instrumentation, and process equipment where solid retention is required in a compact, non-cast body. Construction Range Type:...
View
Angle TEE strainers | Conaco | Philippopoulos s.a.

Angle TEE strainers | Conaco

Angle TEE strainers | Conaco
Conaco
Angle TEE Strainers Conaco Type 407 Conaco Type 407 are angle/TEE line strainers for industrial piping systems, featuring a butt-welded tee body, flanged cover, and flanged or butt-welded ends. Typical installation is upstream of pumps, control valves, turbines, flow meters, and process equipment, especially where piping geometry or access requirements...
View
Straight TEE strainers | Conaco | Philippopoulos s.a.

Straight TEE strainers | Conaco

Straight TEE strainers | Conaco
Conaco
Straight TEE Strainers Conaco Type 407 Conaco Type 407 are straight TEE line strainers designed for installation in industrial piping systems with straight-through flow and lateral access to the screen element. Typical applications include upstream of pumps, control valves, turbines, flow meters, and process equipment where solid retention is required...
View
Cast Basket strainers | Conaco | Philippopoulos s.a.

Cast Basket strainers | Conaco

Cast Basket strainers | Conaco
Conaco
Cast Basket Strainers Conaco Type 507 Conaco Type 507 are cast basket strainers designed for industrial pipelines with ANSI pressure class ratings. They are specified in applications with high solids loading or where increased dirt holding capacity is required compared to Y-strainers. Typical installation points include upstream of pumps, control valves,...
View
Fabricated Basket strainers | Conaco | Philippopoulos s.a.

Fabricated Basket strainers | Conaco

Fabricated Basket strainers | Conaco
Conaco
Fabricated Basket Strainers Conaco Type 490 Conaco Type 490 are welded basket strainers designed for industrial pipelines with large diameters or special requirements. They are specified where higher solids holding capacity is needed compared to Y-strainers, and where periodic access to the basket for cleaning is required. Typical installation points...
View
Duplex Skid Basket strainers | Conaco | Philippopoulos s.a.

Duplex Skid Basket strainers | Conaco

Duplex Skid Basket strainers | Conaco
Conaco
Duplex Skid Basket Strainers Conaco Type 514 Conaco Type 514 are duplex basket strainers supplied in skid-mounted assemblies, designed for industrial pipelines where basket maintenance must be performed without full process shutdown. The duplex configuration allows isolation of one chamber for cleaning while the second remains operational, provided that...
View
Temporary strainers | Conaco | Philippopoulos s.a.

Temporary strainers | Conaco

Temporary strainers | Conaco
Conaco
Conaco Type 444 Temporary Installation Strainers Conaco Type 444 temporary strainers are designed for short-term protection of piping systems during commissioning, flushing, or after welding and maintenance activities. Typically installed between flanges upstream of pumps, control valves, turbines, flow meters, and heat exchangers, they retain weld slag,...
View
Special strainers | Conaco | Philippopoulos s.a.

Special strainers | Conaco

Special strainers | Conaco
Conaco
Special Conaco Components for Piping and Industrial Networks Conaco Special components are not standardized filter series with fixed DN/PN, but custom-engineered items for piping systems, designed per application and end-user requirements. This category includes items such as bird screens, choke pipes, exhaust heads, injection nozzles, level chambers,...
View
Strainer 'Y' Type - DIN | Valvosider | Philippopoulos s.a.

Strainer 'Y' Type - DIN | Valvosider

Strainer 'Y' Type - DIN | Valvosider
Valvosider
Y-Strainers to DIN Standard by Valvosider – Process Protection for Industrial Piping Systems Valvosider Y-strainers manufactured to DIN standards are engineered for the removal of particulates and debris from process media in industrial pipelines. Designed for compliance with DIN specifications, these strainers support operational reliability and...
View
