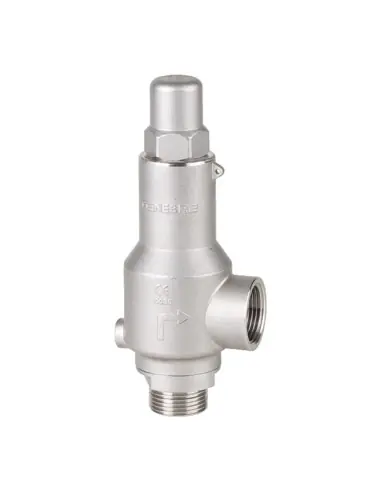

Genebre 2258 Pressure Relief Valve

The Genebre 2258 is an angle-type stainless steel pressure relief valve with threaded inlet and outlet. Designed for overpressure protection in water, air, and saturated steam lines. Discharge capacities are specified per orifice size in the technical datasheet.

Technical Specifications

Connections: BSP Gas male/female per ISO 228/1
Alternative connection: NPT (type 2258N)
Sizes: 1/2" x 1" up to 2" x 2"
PN: 40
Discharge orifice: 13 to 32 mm
Set pressure: 0.5 to 25 bar
Adjustment ranges: 0.5–6 bar and 6.1–25 bar
Max allowable pressure: 40 bar
Operating temperature: -20°C to +200°C
Body/cover: stainless steel 1.4408 / CF8M
Disc: AISI 316 with PTFE soft seat
Spring: stainless AISI 302
Gaskets: PTFE

Selection and Sizing

2258 is selected where a stainless threaded relief valve with PTFE soft seat is required. The datasheet provides flow curves for water at 20°C with 25% overpressure and for air and saturated steam at 10% overpressure.

Typical Applications

water lines and process utility circuits
compressed air networks
small saturated steam lines
stainless skids with threaded connections
equipment protection requiring local pressure relief at setpoint

Selection Considerations

Selection should be based on set pressure, temperature, medium, discharge flow, orifice diameter, and inlet/outlet connection. PTFE soft seat reduces seat leakage but requires clean media; particulates, salts, or condensate may affect resealing after lift.

FAQ

Difference from 2256 / 2257?
Yes. 2258 is fully threaded. 2256 / 2257 are used where flanged inlet is required.

Is an actuator required?
No. Operates mechanically via spring and process pressure.

Is this a control valve?
No. This is a pressure relief valve, not for continuous flow regulation.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

1.4408

Pressure Rating (Options)

PN 40

Pattern (Options)

Angle

Datasheet and documents

Description

BSP threaded ends acc./ ISO 228/1 M-F, available with NPT threaded (2258N). Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2258

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2258 04 06 11	PRESSURE RELIEF VALVE 1/2" G x 1" G (0,5-6 BAR)	1	1.78	1/1
2258 04 06 12	PRESSURE RELIEF VALVE 1/2" G x 1" G (6,1-25 BAR)	1	1.81	1/1
2258 05 06 11	PRESSURE RELIEF VALVE 3/4" G x 1" G (0,5-6 BAR)	1	1.79	1/1
2258 05 06 12	PRESSURE RELIEF VALVE 3/4" G x 1" G (6,1-25 BAR)	1	1.84	1/1
2258 06 06 11	PRESSURE RELIEF VALVE 1" G x 1" G (0,5-6 BAR)	1	1.78	1/1
2258 06 06 12	PRESSURE RELIEF VALVE 1" G x 1" G (6,1-25 BAR)	1	1.75	1/1
2258 06 07 11	PRESSURE RELIEF VALVE 1" G x 1 1/4" G (0,5-6 BAR)	1	1.88	1/1
2258 06 07 12	PRESSURE RELIEF VALVE 1" G x 1 1/4" G (6,1-25 BAR)	1	1.48	1/1
2258 07 07 11	PRESSURE RELIEF VALVE 1 1/4" G x 1 1/4" G (0,5-6 BAR)	1	1.813	1/1
2258 07 07 12	PRESSURE RELIEF VALVE 1 1/4" G x 1 1/4" G (6,1-25 BAR)	1	1.52	1/1
2258 08 09 11	PRESSURE RELIEF VALVE 1 1/2" G x 2" G (0,5-6 BAR)	1	3.7	1/1
2258 08 09 12	PRESSURE RELIEF VALVE 1 1/2" G x 2" G (6,1-25 BAR)	1	3.7	1/1
2258 09 09 11	PRESSURE RELIEF VALVE 2" G x 2" G (0,5-6 BAR)	1	3.76	1/1
2258 09 09 12	PRESSURE RELIEF VALVE 2" G x 2" G (6,1-25 BAR)	1	4.46	1/1
