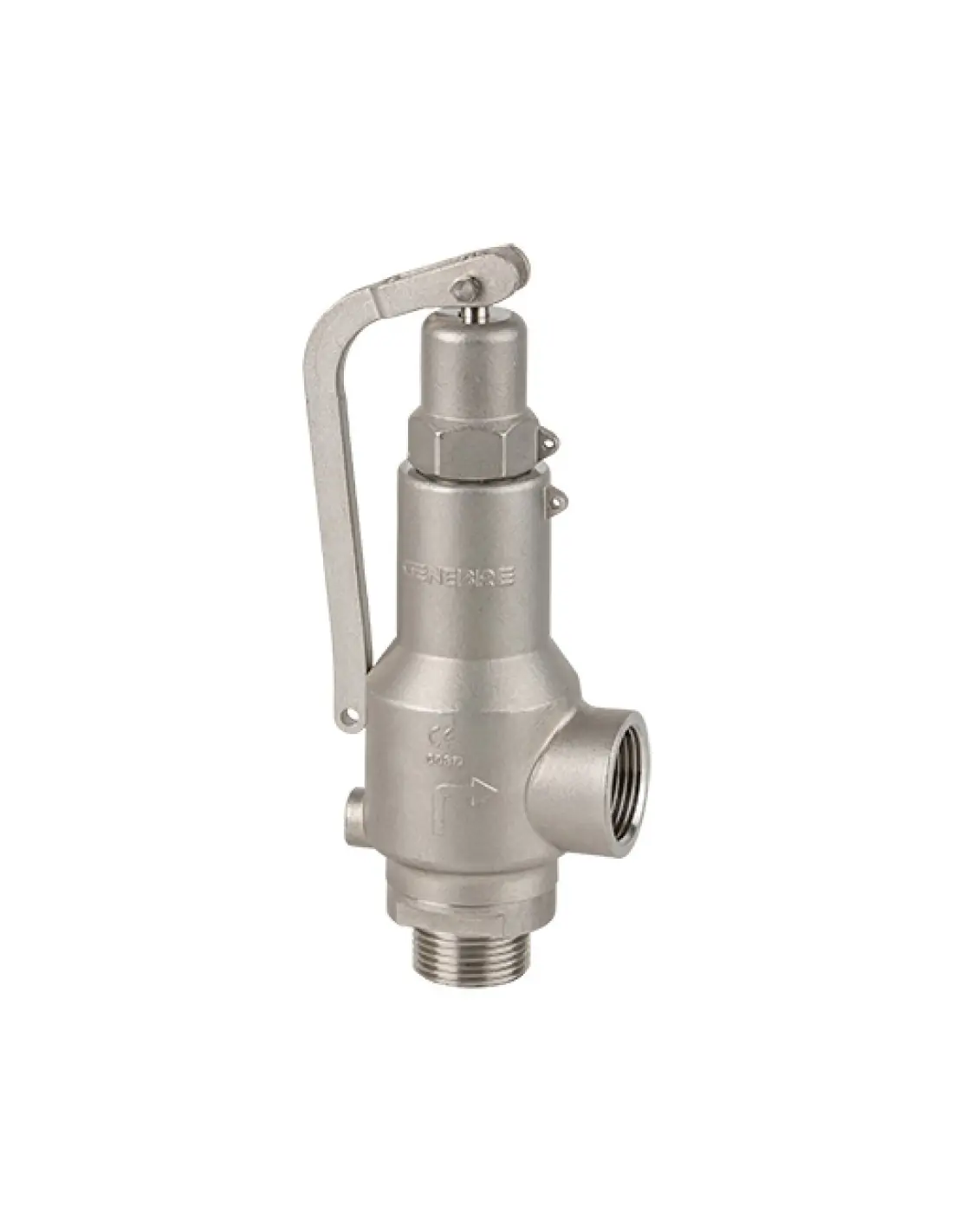

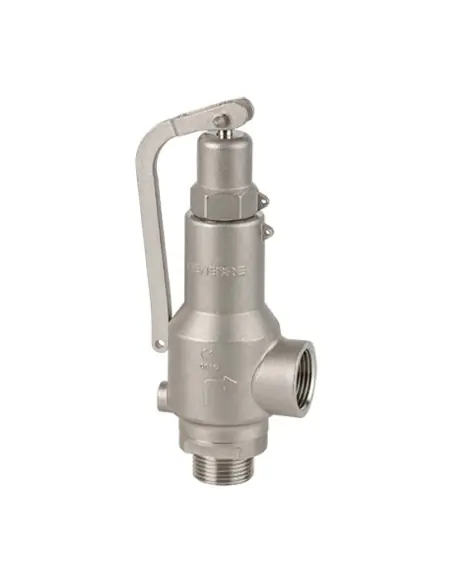

Genebre 2257 Safety Valve with Flanged Inlet and Lever

The Genebre 2257 is a stainless steel spring-loaded safety valve designed for gas and steam service. Inlet connection is flanged PN16/40 per EN 1092-1; outlet is threaded BSP Gas per ISO 228/1. The lever allows manual lift for periodic functional testing.

Technical Specifications

Type: angle pattern, direct-acting safety valve
Inlet DN: 15 to 50
Outlet: 1" to 2" BSP
Orifice: 13 to 32 mm
Set pressure: 0.5 to 40 barg, with sealed adjustment
Max operating pressure: 40 bar
Temperature: -20°C to +300°C
Body/Bonnet/Flange: stainless steel 1.4408 / CF8M
Seat, disc, guide, spindle: AISI 316
Spring: AISI 302 up to 250°C
Gaskets: PTFE

Standards and Sizing

Design, calculation, and testing per EN 12516 and EN ISO 4126-1/7. Sizing tables are provided for air at 20°C and saturated steam, with 10% overpressure.

Applications

Suitable for steam headers, pressure vessels, process gas lines, and skids requiring flanged inlet and manual test capability. Not intended for bypass regulation; selected for overpressure relief at the set pressure.

Selection Criteria

Selection requires set pressure, required relief capacity, medium, temperature, DN, permissible backpressure, and manual test requirement. For temperatures above 250°C, verify spring material compatibility.

FAQ

Is an actuator required?
No. Operation is by process pressure and spring force. The lever is for manual lift only.

Is it suitable for water?
The datasheet specifies gas or steam. For liquids, application review is required.

Standard (Options)

Connection (Options)

Flanged
ISO 228-1

Material (Options)

1.4408

Pressure Rating (Options)

PN 16
PN 40

Pattern (Options)

Angle

Datasheet and documents

Technical Sheet

Description

Flanged end PN16/40 (inlet) acc. to EN 1092-1 and threaded end BSP acc. to ISO 228/1 (outlet). Design, calculations and control according to EN 12516 and EN 4126-1/7. Construction: Stainless steel 1.4408 (CF8M). Seat and disc in stainless steel.

AISI 316. Set pressure between 0,5 barg and 40 barg. Max. working pressure 40 bar. Working temperature -20ºC +300ºC. Lever for manual opening, open cap.

Applications: Gas or steam

Reference: 2257

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2257 04 06 01	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 04 06 02	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 04 06 03	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 04 06 04	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 04 06 05	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 04 06 06	V. DE SEG. C/PALANCA DN15 x 1" G	1	2.27	1/1
2257 05 06 01	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 05 06 02	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 05 06 03	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 05 06 04	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 05 06 05	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 05 06 06	V. DE SEG. C/PALANCA DN20 x 1" G	1	2.6	1/1
2257 06 06 01	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 06 02	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 06 03	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 06 04	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 06 05	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 06 06	V. DE SEG. C/PALANCA DN25 x 1" G	1	2.93	1/1
2257 06 07 01	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 06 07 02	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 06 07 03	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 06 07 04	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 06 07 05	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 06 07 06	V. SEG. C/PAL. DN25 x 1 1/4" G	1	3.065	1/1
2257 07 07 01	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 07 07 02	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 07 07 03	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 07 07 04	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 07 07 05	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 07 07 06	V. SEG. C/PAL. DN32 x 1 1/4" G	1	3.99	1/1
2257 08 09 01	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 08 09 02	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 08 09 03	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 08 09 04	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 08 09 05	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 08 09 06	V. SEG. C/PAL. DN40 x 2" G	1	6.52	1/1
2257 09 09 01	V. SEG. C/PAL. DN50 x 2" G	1	7.42	1/1
2257 09 09 02	V. SEG. C/PAL. DN50 x 2" G	1	7.42	1/1
2257 09 09 03	V. SEG. C/PAL. DN50 x 2" G	1	7.42	1/1
2257 09 09 04	V. SEG. C/PAL. DN50 x 2" G	1	7.42	1/1
2257 09 09 05	V. SEG. C/PAL. DN50 x 2" G	1	8.4	1/1
2257 09 09 06	V. SEG. C/PAL. DN50 x 2" G	1	7.42	1/1
