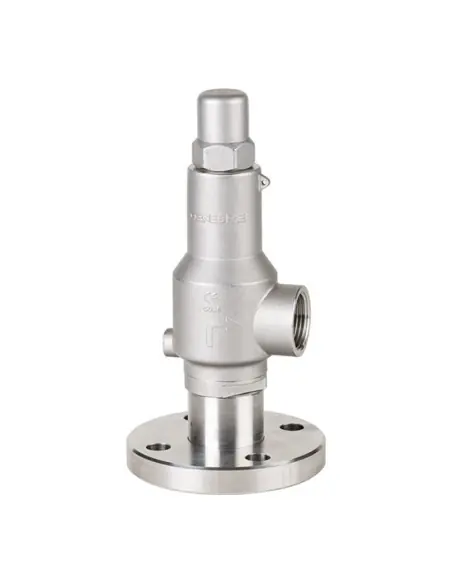

Genebre 2259 Pressure Relief Valve

The Genebre 2259 is an angle-type pressure relief valve constructed from stainless steel, featuring a flanged inlet PN16/40 and a BSP threaded outlet. Designed for overpressure discharge in water, compressed air, and saturated steam systems, selection is based on required discharge flow and set pressure parameters.

Technical Specifications

Inlet connection: Flange PN16/40 per EN 1092-1
Outlet connection: BSP Gas per ISO 228/1
DN: 15 to 50
Outlet size: 1" to 2"
Discharge orifice: 13 to 32 mm
Set pressure: 0.5 to 25 bar
Adjustment ranges: 0.5–6 bar and 6.1–25 bar
Max. allowable body pressure: 40 bar
Operating temperature: -20°C to +200°C
Body / cover / flange: Stainless steel 1.4408 / CF8M
Disc: AISI 316 with PTFE seat
Spring: Stainless steel AISI 302

Difference from Genebre 2258

The 2258 model is fully threaded. The 2259 is specified where a flanged inlet is required, such as on vessel nozzles, manifolds, or lines where mechanical stability and secure mounting are critical compared to threaded connections.

Applications

Typical uses include auxiliary water networks, compressed air systems, small saturated steam lines, stainless steel skids, and equipment protection where a flanged connection is specified. Flow curves are provided for water at 20°C with 25% overpressure and for air/saturated steam with 10% overpressure.

Selection and Maintenance

Sizing requires specification of medium, temperature, set pressure, discharge flow, backpressure, and DN. PTFE seat ensures tight shutoff but requires clean media; particulates, salts, or condensate may affect resealing after relief events. Periodic inspection is recommended for reliable operation.

Datasheet and documents

Technical Sheet

Description

Flanged end PN25 (inlet) acc. to EN 1092-1 and threaded end BSP acc. to ISO 228/1 (outlet).Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2259

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2259 04 06 11	SS PRESSURE RELIEF VALVE DN15 x 1" G (0,5-6 BAR)	1	1.35	1/1
2259 05 06 11	V. DE ALIVIO DN20 x 1" G (6,1-25 BAR)	1	2.52	1/1
2259 06 06 11	V. DE ALIVIO DN25 x 1" G (6,1-25 BAR)	1	2.84	1/1
2259 06 07 11	V. DE ALIVIO DN25 x 1"1/4 G (0,5-6 BAR)	1	2.98	1/1
2259 07 07 11	SS PRESSURE RELIEF VALVE DN32 x 1 1/4" G (0,5-6 BAR)	1	3.87	1/1
2259 08 09 11	SS PRESSURE RELIEF VALVE DN40 x 2" G (0,5-6 BAR)	1	6.4	1/1
2259 09 09 11	SS PRESSURE RELIEF VALVE DN50 x 2" G (0,5-6 BAR)	1	7.29	1/1
2259 09 09 12	V. DE ALIVIO DN50 x 2" G (6,1-25 BAR)	1	7.29	1/1
