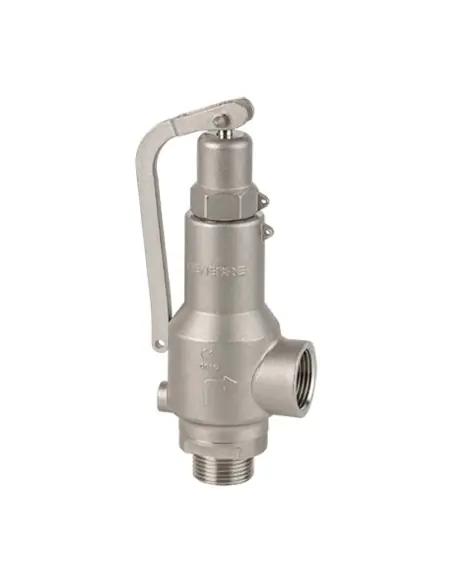

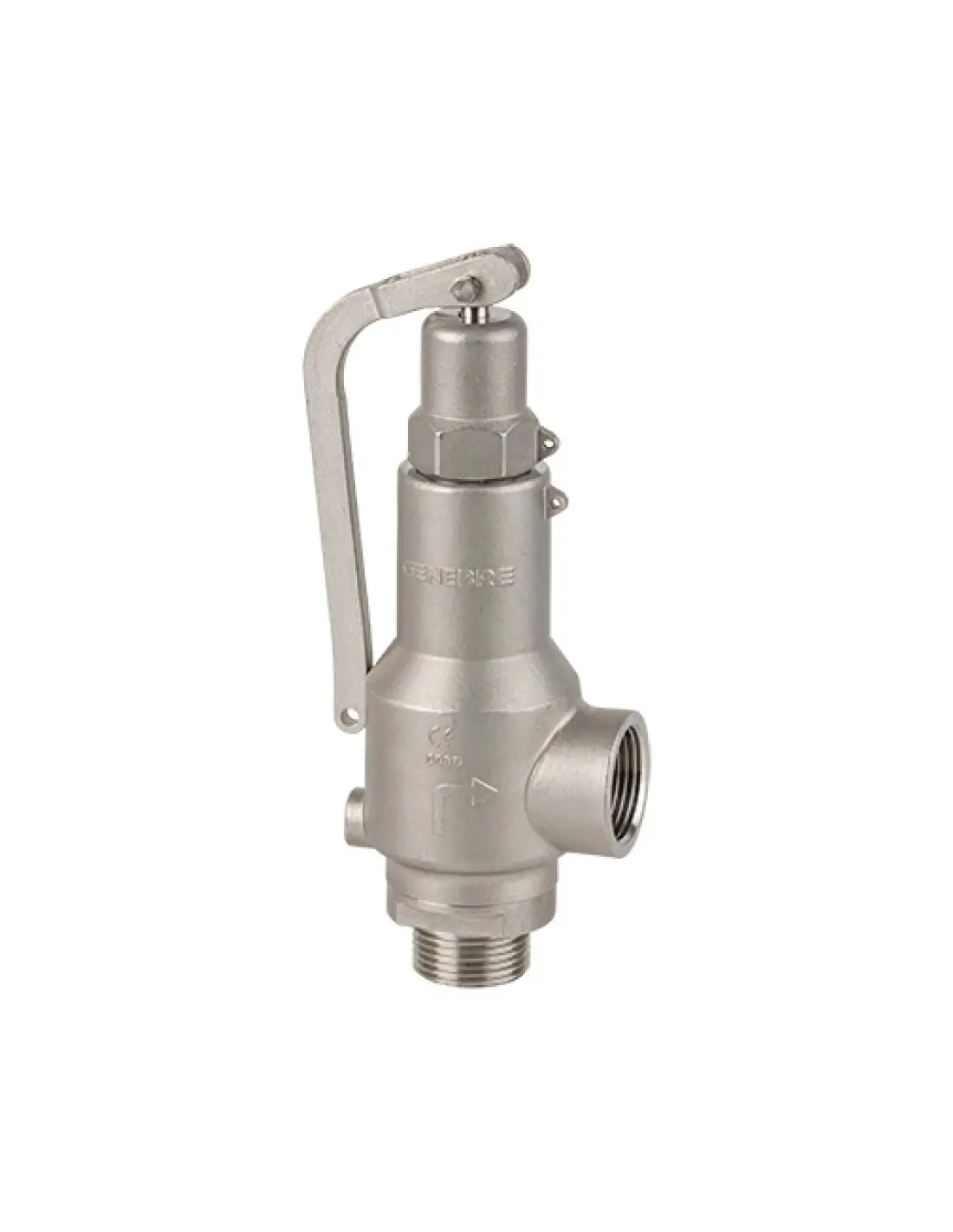

Genebre 2253N Safety Valve NPT with Lever

The Genebre 2253N is a stainless steel, angle-type spring-loaded safety valve with NPT threads per ASME B1.20.1 and a manual lift lever. Designed for gas or steam service, it enables local overpressure relief and periodic functional testing without disassembly.

Technical Specifications

Connections: 1/2" x 1" up to 2" x 2" NPT
Pressure rating: PN40
Set pressure: 0.5 to 40 barg, factory set and sealed
Operating temperature: -20°C to +300°C
Body / Bonnet: Stainless steel 1.4408 / CF8M
Seat, disc, guide, spindle: AISI 316
Spring: AISI 302 (up to 250°C)
Seals: PTFE
Orifice sizes: 13, 14, 16, 20, 28, 32 mm

Standards and Sizing

Design, calculation, and testing comply with EN 12516 and EN ISO 4126-1/7. Sizing data is provided for air at 20°C and saturated steam, based on 10% overpressure.

Difference from 2252N

The 2252N is a closed version without lever. The 2253N features an open bonnet and 360° lever for manual lift testing. The lever is not a process actuator; normal operation is pressure-actuated via the spring mechanism.

Applications

Steam lines with NPT connections
Small/medium steam manifolds
Compressed air or inert gas networks
Export-type industrial skids
Stainless piping requiring PTFE sealing

Selection Considerations

Specify set pressure, medium, temperature, required relief capacity, orifice, backpressure, and inlet/outlet connections. For temperatures above 250°C, verify spring material compatibility. Discharge lines must be drained and free from mechanical loads on the valve.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 40

Pattern (Options)

Angle

Datasheet and documents

Technical Sheet

Description

NPT threaded. Design, calculations and control according to EN 12516 and EN 4126-1/7. Construction: Stainless steel 1.4408 (CF8M). Seat and disc in stainless steel AISI 316. Set pressure between 0,5 barg and 40 barg. Max. working pressure 40 bar. Working temperature -20ºC +300ºC. Lever for manual opening, open cap.

Applications: Gas or steam

Reference: 2253N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2253N 04 06 01	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.36	1/1
2253N 04 06 02	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.36	1/1
2253N 04 06 03	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.36	1/1
2253N 04 06 04	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.36	1/1
2253N 04 06 05	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.94	1/1
2253N 04 06 06	V. SEG. C/PAL. 1/2" NPT x 1" NPT	1	1.36	1/1
2253N 05 06 01	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.36	1/1
2253N 05 06 02	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.74	1/1
2253N 05 06 03	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.87	1/1
2253N 05 06 04	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.36	1/1
2253N 05 06 05	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.36	1/1
2253N 05 06 06	V. SEG. C/PAL. 3/4" NPT x 1" NPT	1	1.36	1/1
2253N 06 06 01	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.36	1/1
2253N 06 06 02	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.36	1/1
2253N 06 06 03	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.36	1/1
2253N 06 06 04	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.36	1/1
2253N 06 06 05	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.98	1/1
2253N 06 06 06	V. SEG. C/PAL. 1" NPT x 1" NPT	1	1.99	1/1
2253N 06 07 01	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 06 07 02	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 06 07 03	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 06 07 04	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 06 07 05	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 06 07 06	V. SEG. C/PAL. 1" NPT x 1"1/4 NPT	1	1.575	1/1
2253N 07 07 01	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 07 07 02	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 07 07 03	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 07 07 04	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 07 07 05	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 07 07 06	V. SEG. C/PAL. 1"1/4 NPT x 1"1/4 NPT	1	1.62	1/1
2253N 08 09 01	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 08 09 02	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 08 09 03	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 08 09 04	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 08 09 05	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 08 09 06	V. SEG. C/PAL. 1"1/2 NPT x 2" NPT	1	3.82	1/1
2253N 09 09 01	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
2253N 09 09 02	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
2253N 09 09 03	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
2253N 09 09 04	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
2253N 09 09 05	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
2253N 09 09 06	V. SEG. C/PAL. 2" NPT x 2" NPT	1	3.89	1/1
