Genebre 2252N Safety Valve NPT

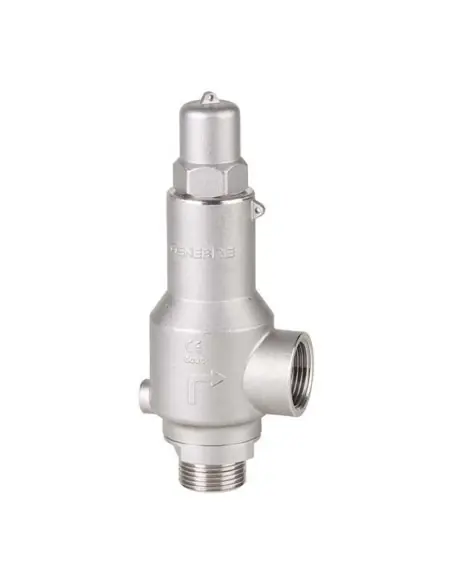

The Genebre 2252N is an angle-pattern, threaded safety valve constructed from stainless steel, designed for gas or steam service. The 2252N variant differs from the 2252 primarily in connection type: ends are NPT per ASME B1.20.1 rather than BSP. Design, calculation, and testing conform to EN 12516 and EN ISO 4126-1/7.

Technical Specifications

• Connections: 1/2" x 1" up to 2" x 2" NPT
• Pressure rating: PN40
• Set pressure: 0.5 to 40 barg, with tamper-evident seal
• Max operating pressure: 40 bar
• Operating temperature: -20°C to +300°C
• Body / bonnet: stainless steel 1.4408 / CF8M
• Seat and disc: AISI 316
• Spring: AISI 302 up to 250°C; for higher temperatures, material confirmation required
• Gaskets: PTFE

Sizing and Flow Data

Technical documentation provides orifice sizes of 13, 14, 16, 20, 28, and 32 mm depending on connection size. Flow tables cover air at 20°C and saturated steam, with 10% overpressure per EN ISO 4126-7.

Applications

Suitable for steam networks, gas lines, small manifolds, skids with NPT piping, and equipment requiring stainless steel construction. Manufacturer documentation specifies use for gas or steam; water or other liquids require separate technical assessment.

Selection and Maintenance Notes

Selection is based on set pressure, medium, temperature, discharge capacity, orifice, backpressure, and NPT connection. Outlet must be routed without mechanical loading on the valve and free of condensate traps. Contaminants, salts, or particulates on the seat may cause leakage after actuation.
