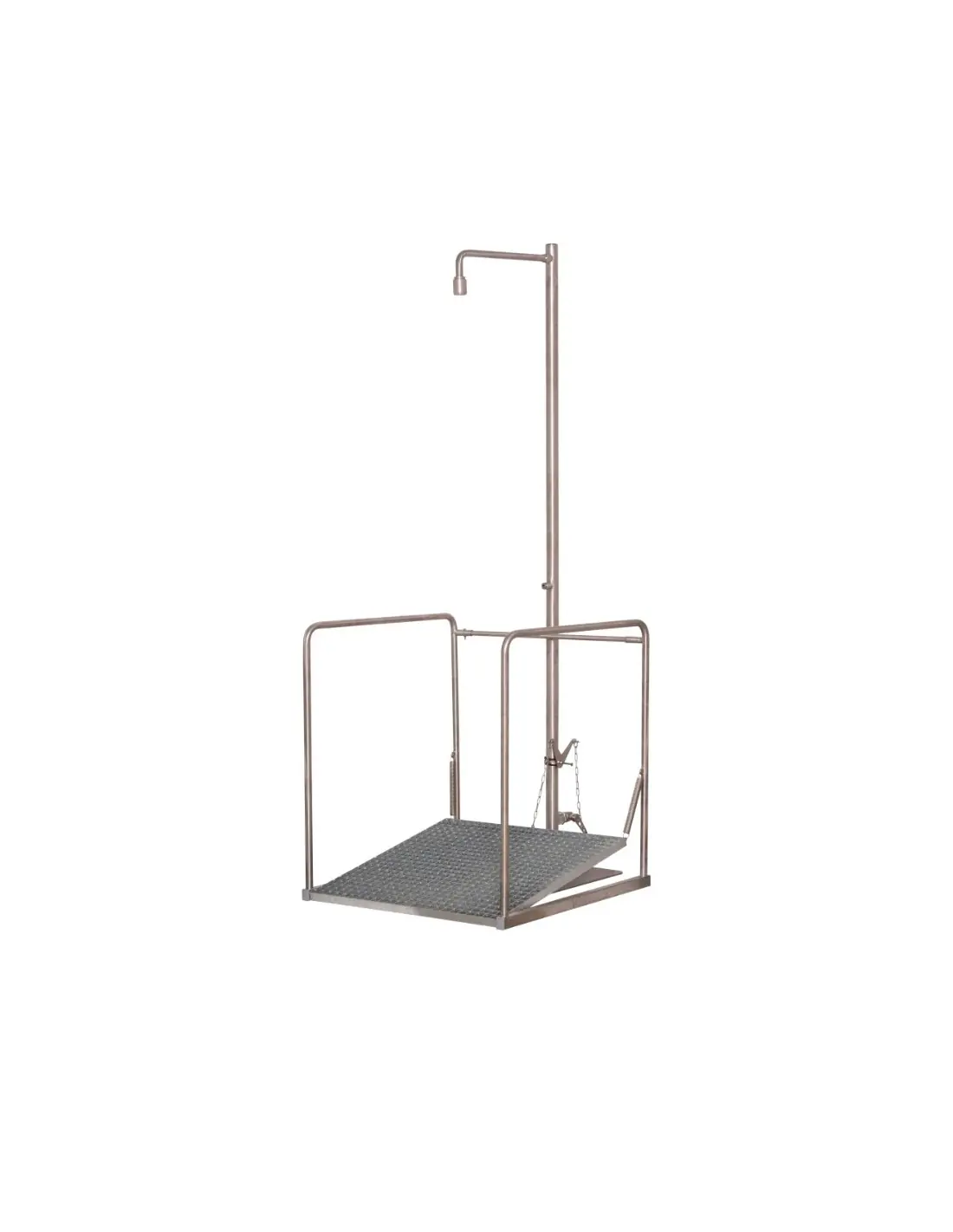

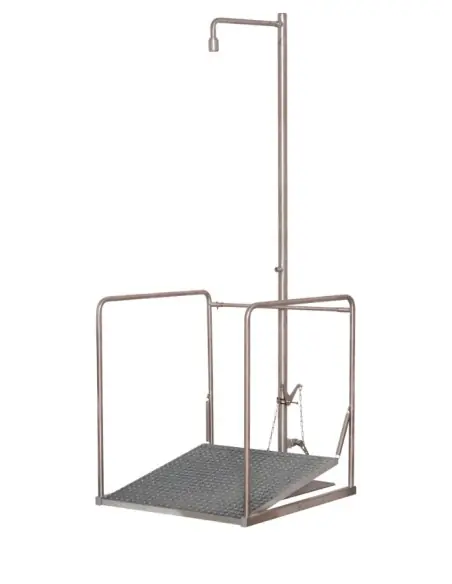

B-Safety BR 888 095 PremiumLine

Body safety shower station with integrated protective cage and drainage, designed for industrial locations requiring a defined wash zone without integrated eye wash. Typical applications include chemical plants, loading racks, tank areas, and outdoor process zones.

Technical Data

  • Type: PremiumLine, body shower station
  • Material: Stainless steel, polished finish
  • Total height: 2330 mm
  • Arm projection: 600 mm
  • Cage dimensions: 960 x 850 x 900 mm
  • Operating pressure: 1.5–3 bar
  • Flow rate: 50 l/min (optional 75 / 110 l/min versions)
  • Water inlet: 1” male thread

Construction and Actuation

The cage is constructed from stainless steel tubing. Activation is via a galvanized platform (800 x 800 mm) linked by chain and angular transmission to a 1” ball valve. The base is stainless steel (200 x 200 mm) with four anchor holes. Support piping is three-part, 1¼” stainless steel. The shower arm is ¾” stainless steel, 600 mm projection. The spray head is stainless, self-draining, with integrated 50 l/min flow control for a defined spray pattern at 1.5–3 bar dynamic pressure.

Standards and Certifications

Complies with EN 15154-1:2006, EN 15154-5:2019, ANSI Z358.1-2014. Also references DIN 1988, EN 1717, DIN-DVGW/DVGW NW-0416CL0425, and GOST-R. Body shower signage per EN ISO 7010 and ASR A1.3.

Maintenance

Periodic inspection should include flow rate, dynamic pressure, valve tightness, spray head cleanliness, unobstructed drainage, chain/angular transmission condition, and free movement of the actuation platform.

FAQ

When is the BR 888 095 selected?
When a station is required solely for body rinsing, with a cage defining the user zone.

How does it differ from the BR 886 095?
The BR 886 095 includes an integrated eye wash. The BR 888 095 is dedicated to body shower applications only.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 2330 mm
  • Projection: 600 mm
  • Protection cage dimensions (H x W x D): 960 x 850 x 900 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: 1” male

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
  • platform actuation for safety shower made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
  • angle diversion made of stainless steel, with stainless steel attachment to the standpipe
  • ball valve 1“ with lever and chain made of stainless steel, water inlet 1” male, DIN-DVGW tested and certificated
  • base plate with 4 mounting holes of stainless steel, polished, dimensions 200 x 200 mm
  • stand pipe 1 ¼” of stainless steel three-part, polished, total height 2330 mm
  • wall shower arm ¾“ of stainless steel, polished, projection 600 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
