B-Safety BR 887 095 PremiumLine

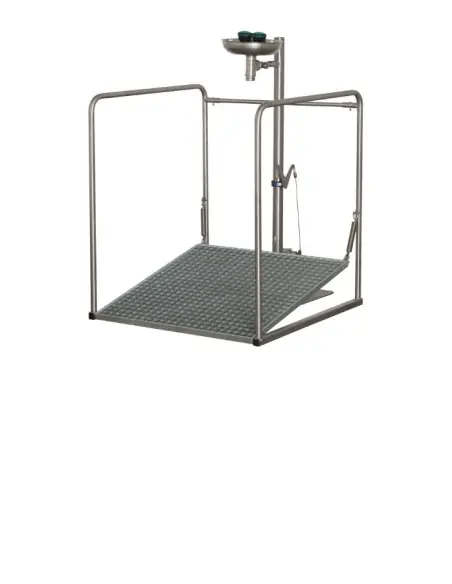

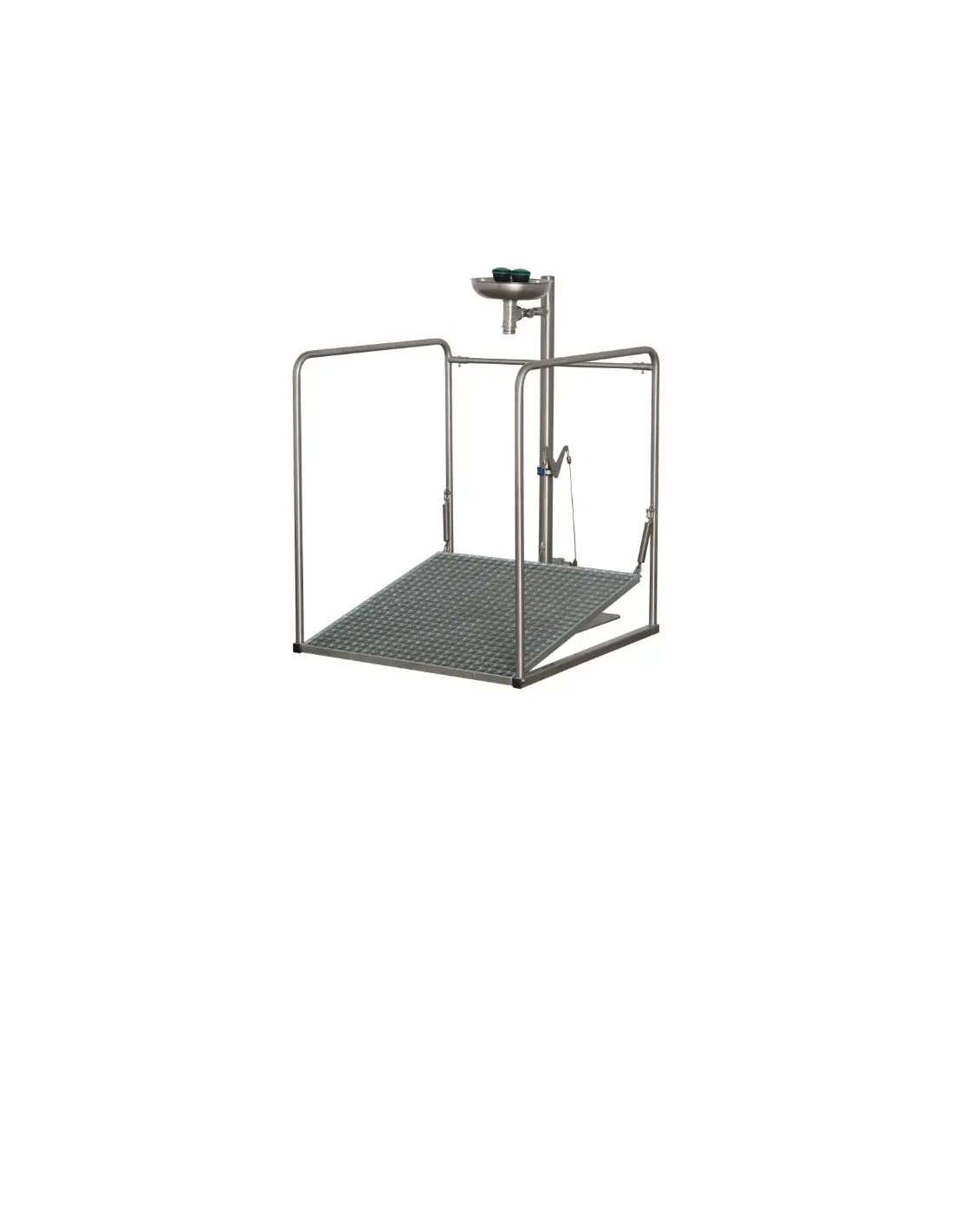

Eyewash station with integrated protective cage and drainage basin, designed for industrial environments requiring a designated eyewash point. Unlike the BR 886 095, this configuration does not include a body shower; it is dedicated solely to eyewash operation, activated via platform mechanism.

Technical Data

• Type: PremiumLine, eyewash station with protective cage
• Material: Stainless steel, polished finish
• Overall height: 1025 mm
• Projection: 430 mm
• Cage dimensions: 960 x 850 x 900 mm
• Operating pressure: 2.5–5 bar
• Flow rate: 14 l/min
• Water inlet: 1” male
• Basin: stainless steel Ø275 mm
• Basin outlet: 1 ¼” male

Construction and Actuation

The cage is constructed from stainless steel tubing. Actuation is via a galvanized platform (800 x 800 mm), mechanically linked by chain and angular transmission to a 1” stainless steel ball valve. The base plate is stainless steel (200 x 200 mm) with four anchor holes for secure installation.

Eyewash Module

The integrated PremiumLine module includes a stainless steel basin, mounting height 970 mm, and two spray heads. Spray heads feature plastic dispersion plates, elastomeric eye protection, and sealed dust covers with flip-up mechanism. Flow control maintains 14 l/min within 2.5–5 bar pressure range.

Standards and Certifications

Complies with EN 15154-2:2006 and ANSI Z358.1-2014. Also references DIN 1988, EN 1717, DIN-DVGW/DVGW NW-0417CL0263, and GOST-R. Eyewash signage per EN ISO 7010 and ASR A1.3.

Applications

Suitable for chemical storage, loading racks, water treatment units, laboratories, and process areas requiring immediate eyewash with controlled drainage. Compatible with potable and process water.

Maintenance

Routine checks: verify flow rate, dynamic pressure, spray head cleanliness, dust cover integrity, valve tightness, free movement of platform/chain, and basin drainage.
