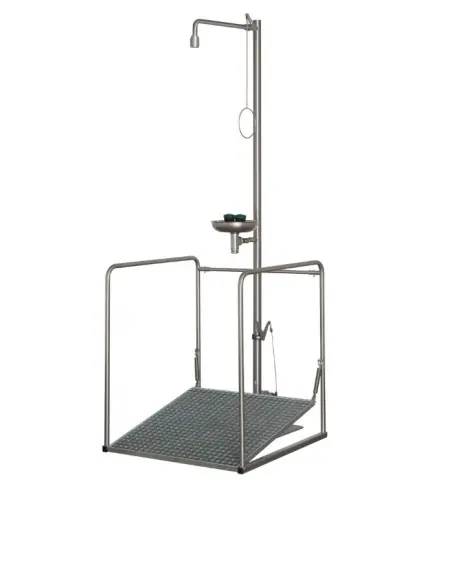

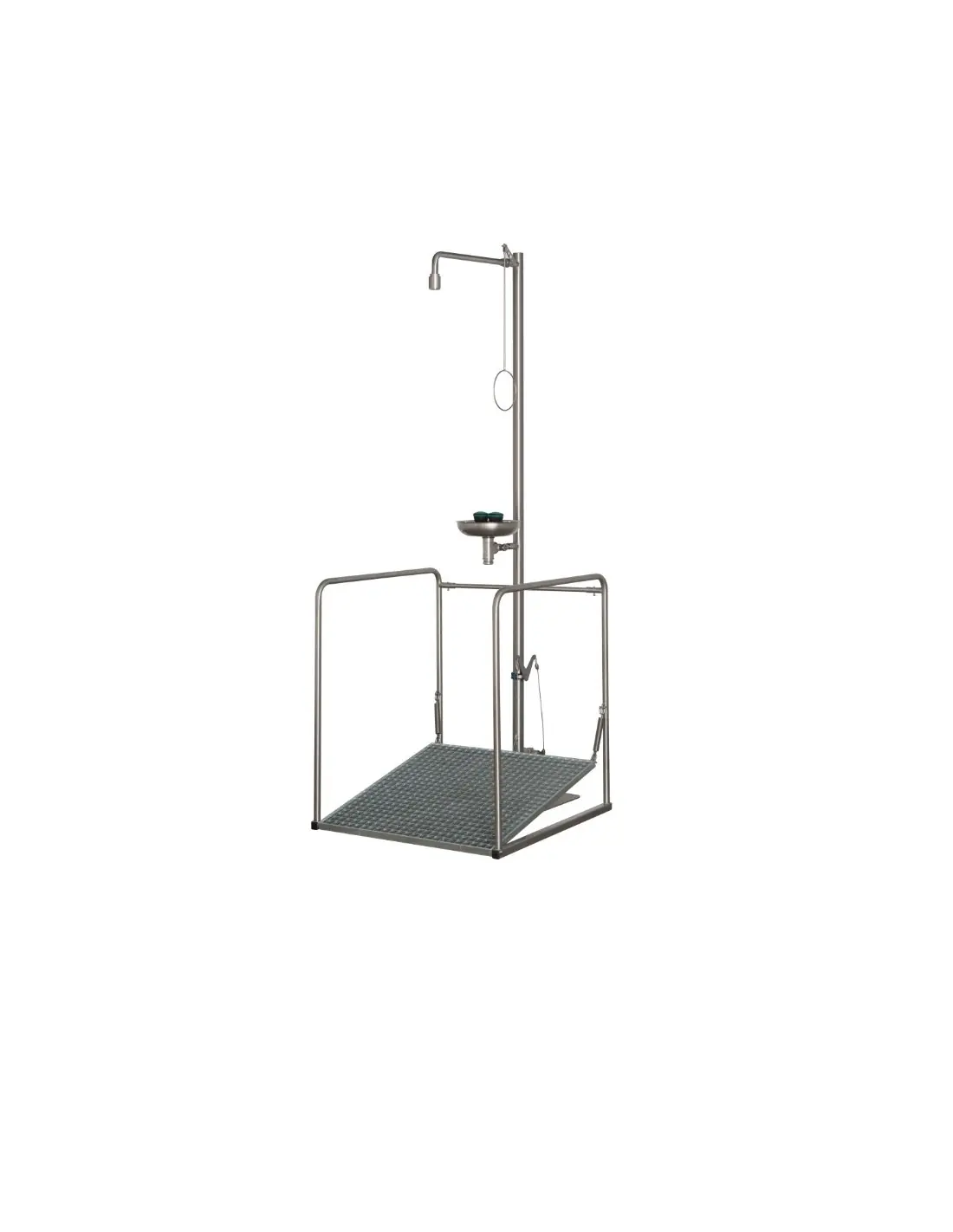

B-Safety BR 886 095 PremiumLine

Emergency safety shower and eyewash station with perimeter protection cage and integrated drainage system. Designed for controlled operation, defined wash zone, and direct water removal to drainage. Typical installations include chemical processing units, loading racks, hazardous liquid storage, and outdoor process areas where containment and operator safety are critical.

Technical Data

Type: PremiumLine, self-draining body/eyewash station
Main construction: stainless steel, polished finish
Overall height: 2330 mm
Arm projection: 625 mm
Protection cage: 960 x 850 x 900 mm
Minimum flow pressure: 1.5 bar
Body operating pressure: 1.5–3 bar
Body flow rate: 50 l/min
Eyewash flow rate: 14 l/min
Water inlet: 1” male
Eyewash bowl: stainless steel Ø275 mm, outlet 1 ¼” male

Construction and Operation

Cage constructed from stainless steel tubing. Eyewash activation platform is galvanized, 800 x 800 mm, with chain and angular transmission to the valve. Body shower is actuated via 700 mm stainless steel pull rod and ¾” ball valve. Shower head is stainless, self-draining, with integrated 50 l/min flow control.

Eyewash Unit

PremiumLine eyewash unit with stainless bowl, installation height 970 mm. Spray heads feature plastic dispersion plates, rubber protectors, and sealed dust covers. Flow control maintains 14 l/min at 2.5–5 bar.

Standards and Variants

Compliant with EN 15154-1:2006, EN 15154-2:2006, EN 15154-5:2019, ANSI Z358.1-2014, DIN-DVGW/DVGW, and GOST-R. Available variants: 50 l/min (hazard class I), 75 l/min (class II), 110 l/min (class III) per EN 15154-5:2019.

Maintenance

Routine checks: flow rate, dynamic pressure, free drainage, platform/chain function, valve tightness, spray head cleanliness, and dust cover condition.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel
Surface: polished
Total height: 2330 mm
Projection: 625 mm
Protection cage dimensions (H x W x D): 960 x 850 x 900 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: 1” male

Norms / Approvals

EN 15154-2:2006
EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
DIN-DVGW, DVGW, NW-0417CL0263
GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
platform actuation for eye shower made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
angle diversion made of stainless steel, with stainless steel attachment to the standpipe
ball valve 1“ with lever and chain made of stainless steel, water inlet 1” male, DIN-DVGW tested and certificated
base plate with 4 mounting holes of stainless steel, polished, dimensions 200 x 200 mm
base plate with 4 mounting holes of stainless steel, polished, dimensions 200 x 200 mm
connection piece ¾” of stainless steel, for easy installation and alignment of the shower
ball valve ¾” of stainless steel, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
pull rod with ring handle of stainless steel, polished, length 700 mm
wall shower arm ¾“ of stainless steel, polished, projection 625 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
integrated PremiumLine safety eye shower with stainless steel bowl, mounting height 970 mm
connection pipe of stainless steel for easy installation and alignment of the shower, polished
bowl made of stainless steel, diameter 275 mm, polished, water outlet 1 ¼” male
high-performance spray heads made of stainless steel for large-scale dispersion of water, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism, mounted over distributor fork
integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2.5 to 5 bar flow pressure
sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated
