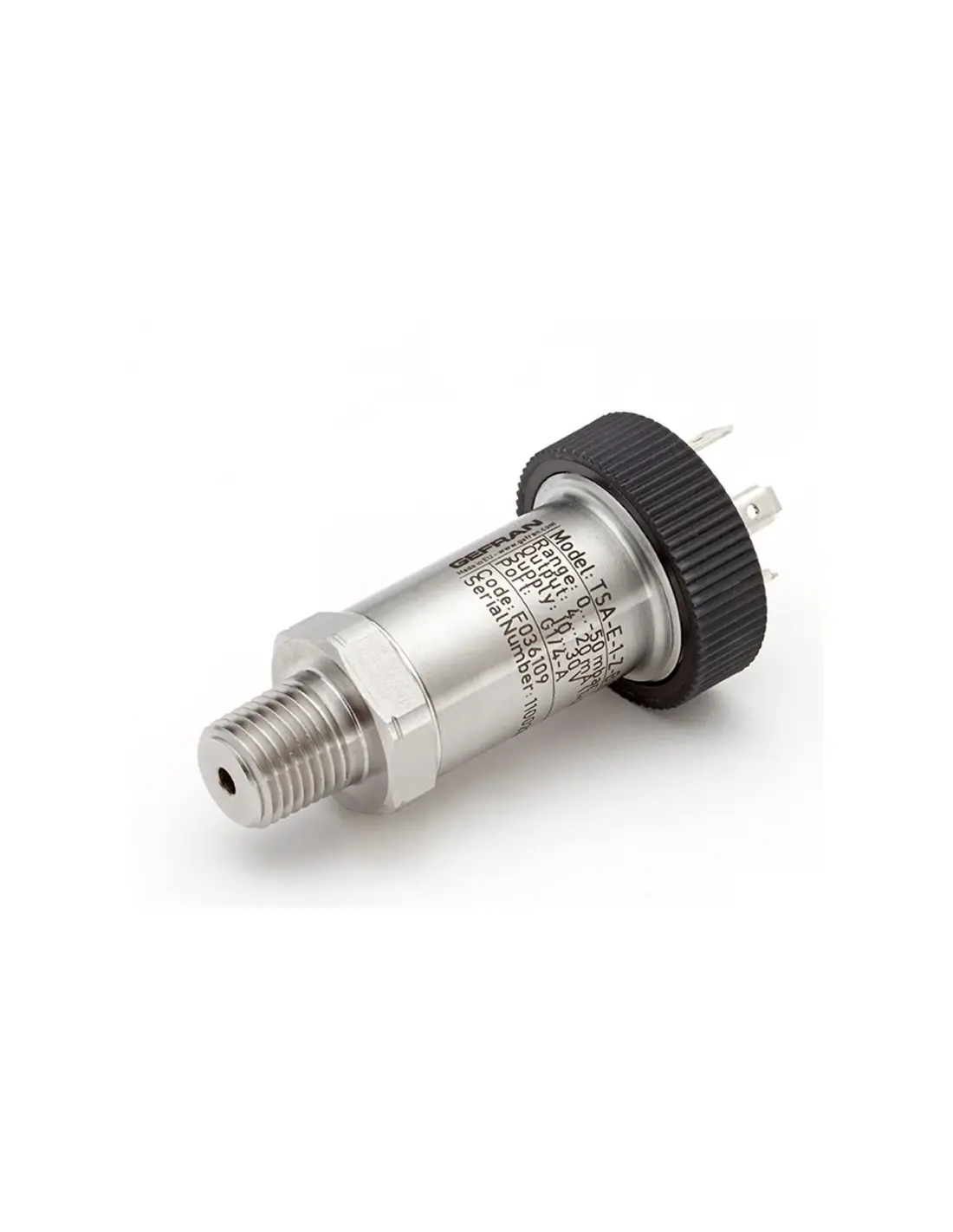

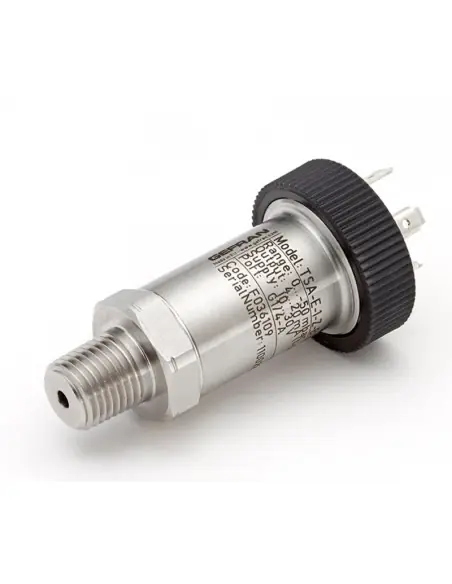

Gefran TSA Pressure Transmitter

The Gefran TSA is a pressure transmitter designed for low and medium pressure ranges, utilizing a silicon piezoresistive element in a Wheatstone bridge configuration. It is primarily used in industrial refrigeration, HVAC, compressors, pumps, air filtration, packaging, and general pressure monitoring applications.

Technical Data

  • Measuring ranges: 0…0.05 to 0…60 bar
  • Available absolute ranges: from ≥1 bar abs
  • Barometric range: 0.8…1.2 bar abs
  • Accuracy: ±0.15% FS typical, ±0.5% FS for absolute ranges
  • Overpressure: 4x…2x, depending on range
  • Burst pressure: 6x…3x, depending on range
  • Response time: <4 ms
  • Process temperature: -20…+85 °C
  • Protection: IP65/IP67 with correctly installed female connector

Materials and Media Compatibility

Body is AISI 304; wetted parts include AISI 316L. Product documentation also lists NBR, Viton and silicone oil fill. Media compatibility must be verified for refrigerants, air, water, technical gases, or light industrial fluids.

Outputs and Connections

Analog outputs available: 4…20 mA, 0…10 Vdc, 0.1…10.1 Vdc, 0…5 Vdc. 4…20 mA is preferred for long cable runs to PLC/BMS. Voltage outputs are used for short distances and HVAC/machine controllers.

Process Connections

Standard process connections: G 1/4 gas male DIN 3852-E, G 1/2A DIN 16288. Electrical connections: M12x1, EN 175301-801 type A/C, or shielded cable.

Installation

Transmitter body must be grounded via the machine. Use shielded cable; connect shield at connector side only, leave open at PLC/instrument side. Signal cables should be routed separately from power cables.

Standards

TSA declaration of conformity references RoHS 2011/65/EU, EMC 2014/30/EU, EN 50581:2012, EN 61326-1:2013, EN 61326-2-3:2013.

Datasheet and documents

Description

Technical specifications

Overview

Series TSA transmitters are based on silicon piezoresistive sensing element in wheatstone bridge configuration.

Thanks to highly stable electronic components, these transmitters can be used in applications requiring long-distance signal transmission or in smart control systems.

TSA pressure transmitters were developed mainly for pressure measurement in industrial refrigeration and air conditioning, compressor and pumps.

They are also used for monitoring and control on automatic machines and general purpose industrial applications.

Description

  • Ranges: from 0…0.05 bar to 0…60 bar (0…1 to 0…1000 psi)
  • Complete range of voltage/current outputs
  • Protection rating: IP65/IP67
  • Wetted parts: AISI304 , AISI316, NBR, Viton
  • Operating temperature range -20…+85°C
  • Accuracy: ± 0.15% FSO typical
  • Fill Fluid: silicone oil
  • Available absolute ranges
  • Available “Barometric” range (0.8-1.2 bar abs)
  • Available low ranges (50mbar and 100mbar)

Certifications

EU Conformity Declaration - TSA

UK Conformity Declaration - TSA
