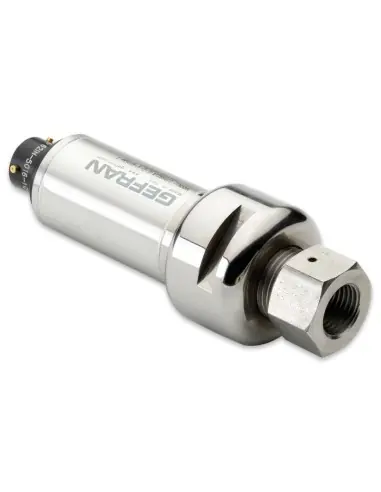

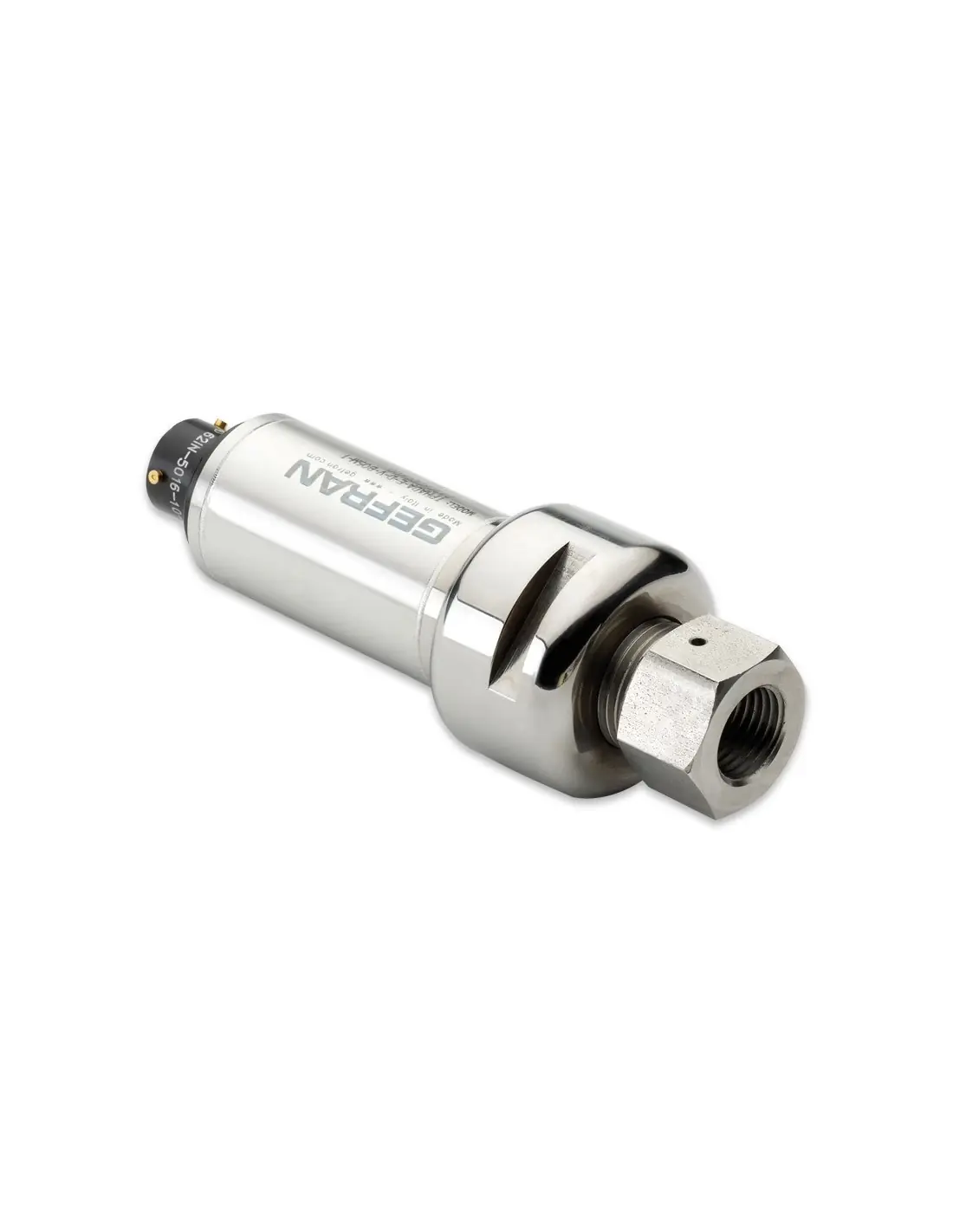

Gefran TPH – Very High Pressure Sensor

The Gefran TPH is a pressure sensor designed for very high-pressure applications, featuring a non-amplified mV/V output. It utilizes bonded strain gauge technology on a steel measuring element with a monolithic diaphragm. This configuration is suitable for both static and dynamic pressure measurements in high-energy hydraulic circuits.

Technical Data

  • Measuring ranges: 0…1000 to 0…5000 bar
  • Accuracy: ±0.1% FS typical
  • Overpressure: 2 x FS, up to 6000 bar
  • Burst pressure: 3 x FS, up to 7500 bar
  • Response time: <0.1 ms
  • Process temperature: -30…+120 °C
  • Temperature compensation: -10…+85 °C
  • Body: AISI 304
  • Wetted parts: 15-5PH / 17-4PH stainless steel
  • Protection: IP65 / IP66 / IP67, depending on connector and installation

Output and Interface

The mV/V output requires a strain gauge bridge input or external signal conditioner. It is not directly compatible with standard PLC analog inputs (4…20 mA or 0…10 V). For amplified outputs, refer to the TPHADA series.

Process Connections

Available connections for TPH include F-250-C 9/16-18 UNF female and M16 x 1.5 female. Selection should be based on operating pressure, fitting class, tightening torque, and mechanical stress on the piping.

Applications

  • Waterjet cutting
  • High-pressure pumps
  • Production test benches
  • Hydraulic circuits up to 5000 bar
  • Dynamic pressure measurements with rapid changes

Installation

Use shielded cable, ground via machine body, and separate signal cables from power cables. For mV/V output, connect shielding to GND at the PLC/instrument side only; leave floating at the connector side.

Compliance

TPH compliance declaration covers Pressure transducers TPH, marking CE, RoHS 2011/65/EU, and EN 50581:2012.

Datasheet and documents

Description

Technical specifications

Overview

Series TPH transducers for high pressure are based on bonded strain gauge on stainless steel technology.

The measurement diaphragm with monolithic structure makes the transmitter highly efficient, reliable, and safe – extremely important factors in high-pressure applications.

The entire mechanical structure, with vent holes, is designed to guarantee safety and makes the transducer suitable for measuring both static and dynamic pressure, even under harsh conditions.

The TPH is particularly suitable for applications in high and very high pressure hydraulic circuits, such as (for example) on test benches or on waterjet cutting machines. State of the art components and high precision machining make the TPH the ideal product for all above requirements, where is needed the non-amplified transducer with mV/V output.

Description

  • Ranges: from: 0…1000 to 0…5000 bar
  • Accuracy: ± 0.1% FSO typical
  • Protection: IP65/IP67
  • Internal calibration signal
  • Wetted parts: 15-5PH stainless steel
  • Operating temperature: -30…+120°C
  • Measurement diaphragm with monolithic stainless steel structure
  • Suitable for measuring static and dynamic pressure
