The Berluto DRV 750 is a direct-acting pressure reducer featuring a diaphragm, adjustment spring, and inlet pressure compensation. The downstream pressure is mechanically adjustable within the range of 0.2–2 bar, requiring no external energy or impulse line. This series is designed for low output pressures in a stainless steel construction.
The body and spring cap are made from stainless steel 1.4408. Wetted internal parts are stainless steel 1.4404. Seals available in NBR for DN15–DN32 up to 100°C, EPDM up to 130°C, and FKM up to 190°C. The EPDM version is FDA and EC 1935/2004 compliant for secondary food applications.
The series is intended for aggressive waters and aggressive liquids. It can also be used in air and neutral gases when the required flow is within the valve's Kvs limits.
Typical uses include low-pressure circuits, equipment supply with limited allowable pressure, processes requiring stainless steel, auxiliary water networks, neutral gases, and applications requiring regulation below 2 bar.
The valve features an integrated filter, replaceable internal parts, and dual manometer connection G 1/4” for outlet pressure indication. Installation can be in any position, with a preference for vertical. Selection requires p1, p2, flow rate, DN, Kvs, temperature, medium, and sealing material.

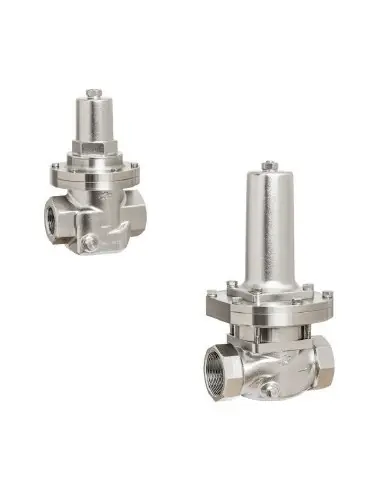

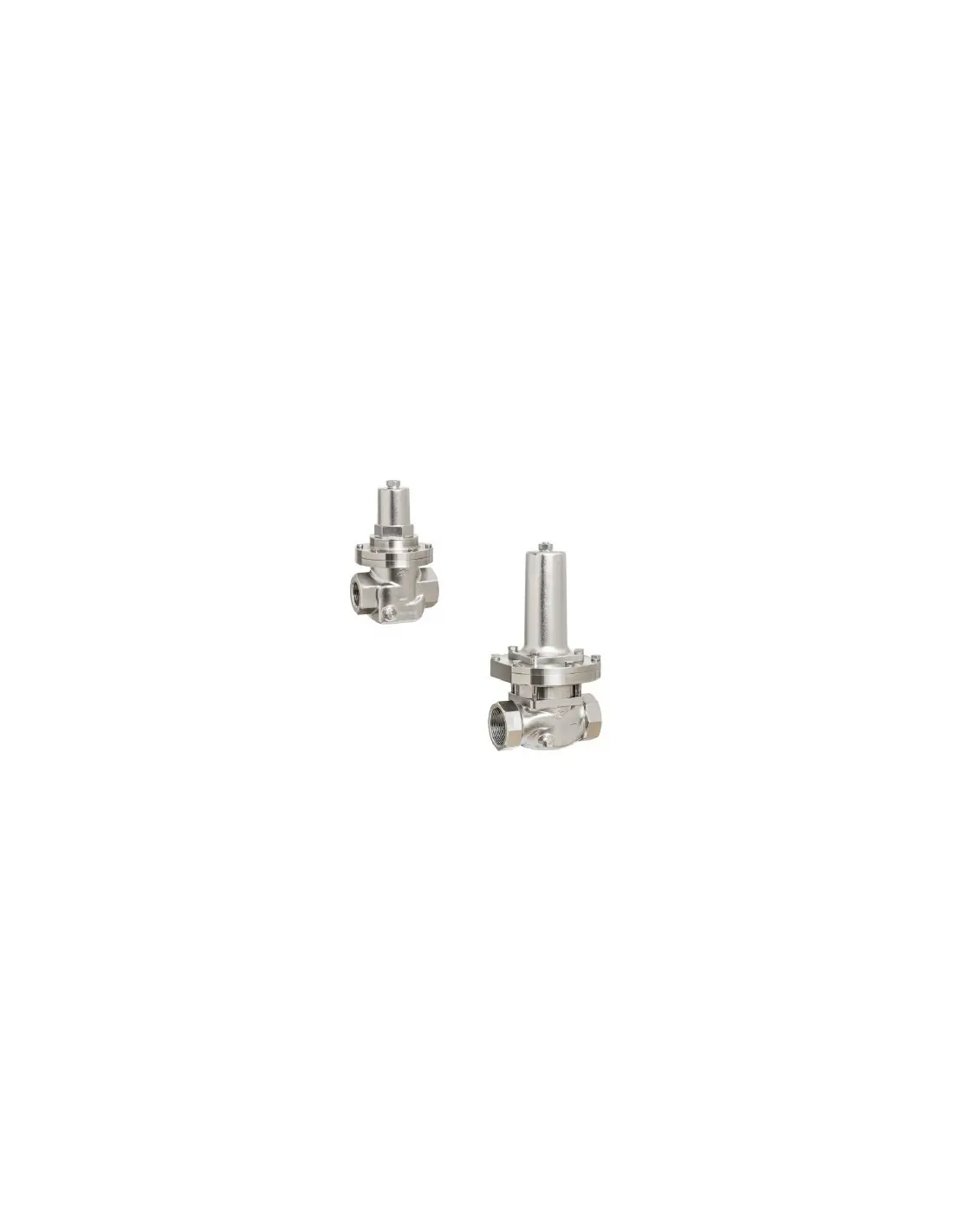

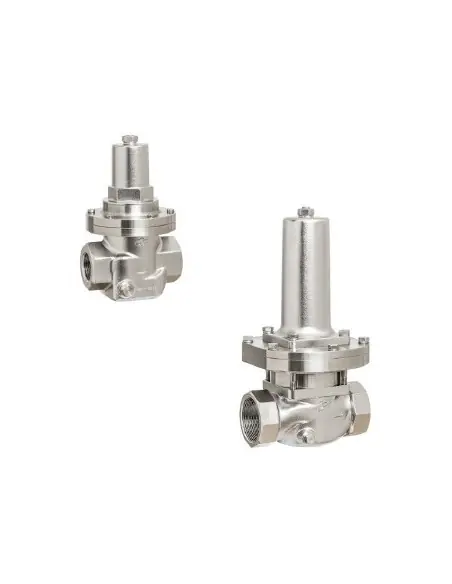

DRV 750
Pressure reducing valves of the series are diaphragm-controlled, spring-loaded pressure reducing valves and have inlet pressure compensation. The cartridge design allows easy replacement of the internal parts.
Nominal size DN 15 up to DN 50
Inlet pressure up to 25 bar
Outlet pressure from 0.2 up to 2 bar
Temperature range -30 °C to 190 °C

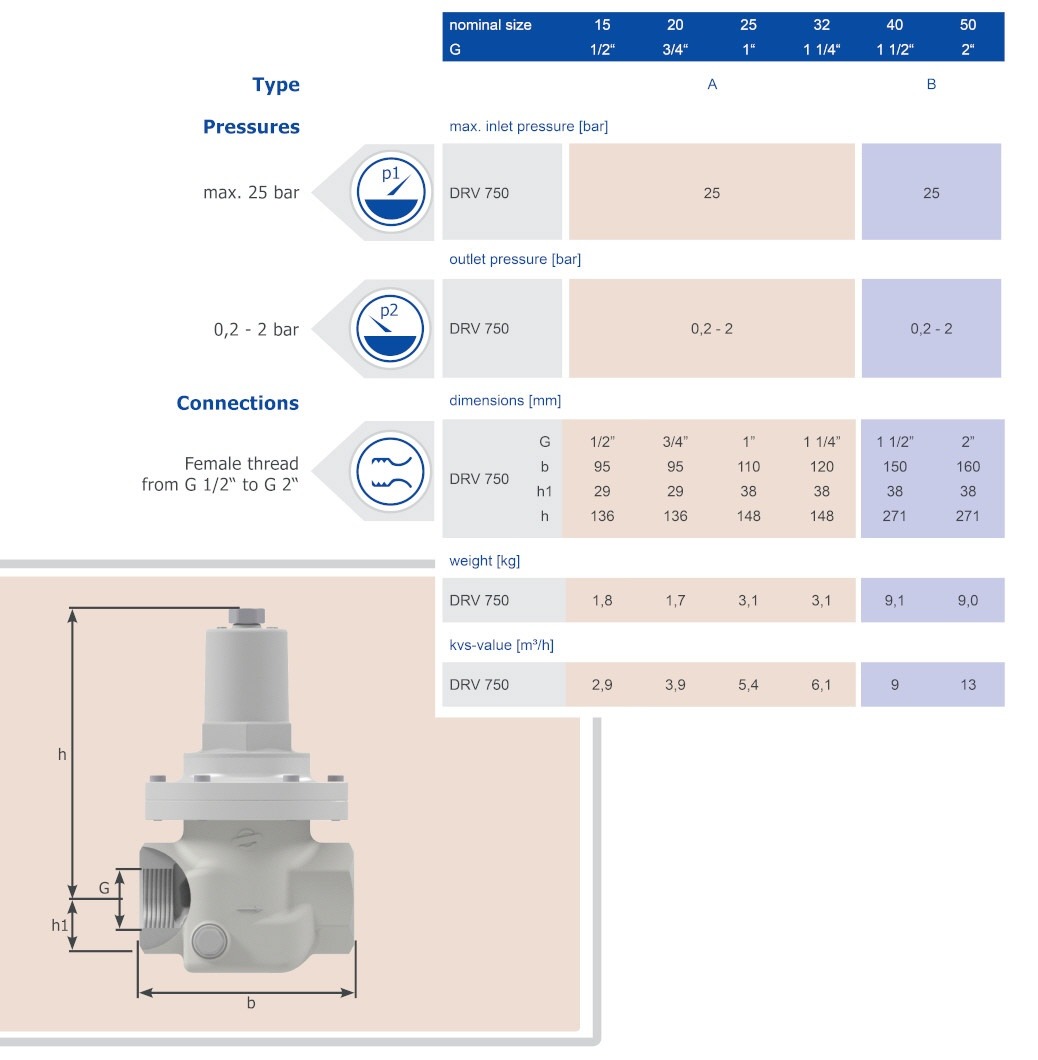

Technical data
