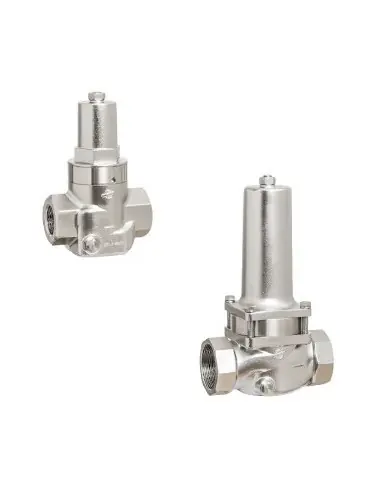

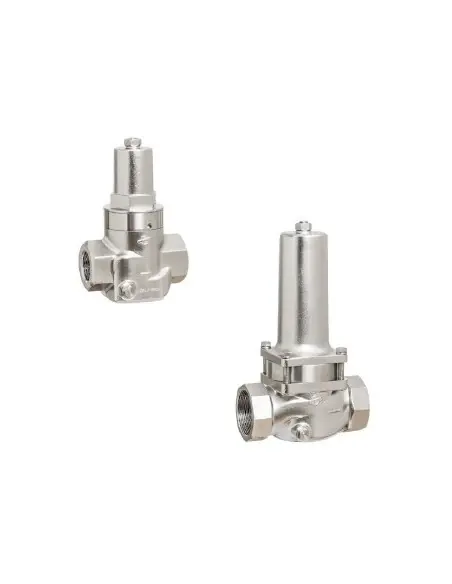

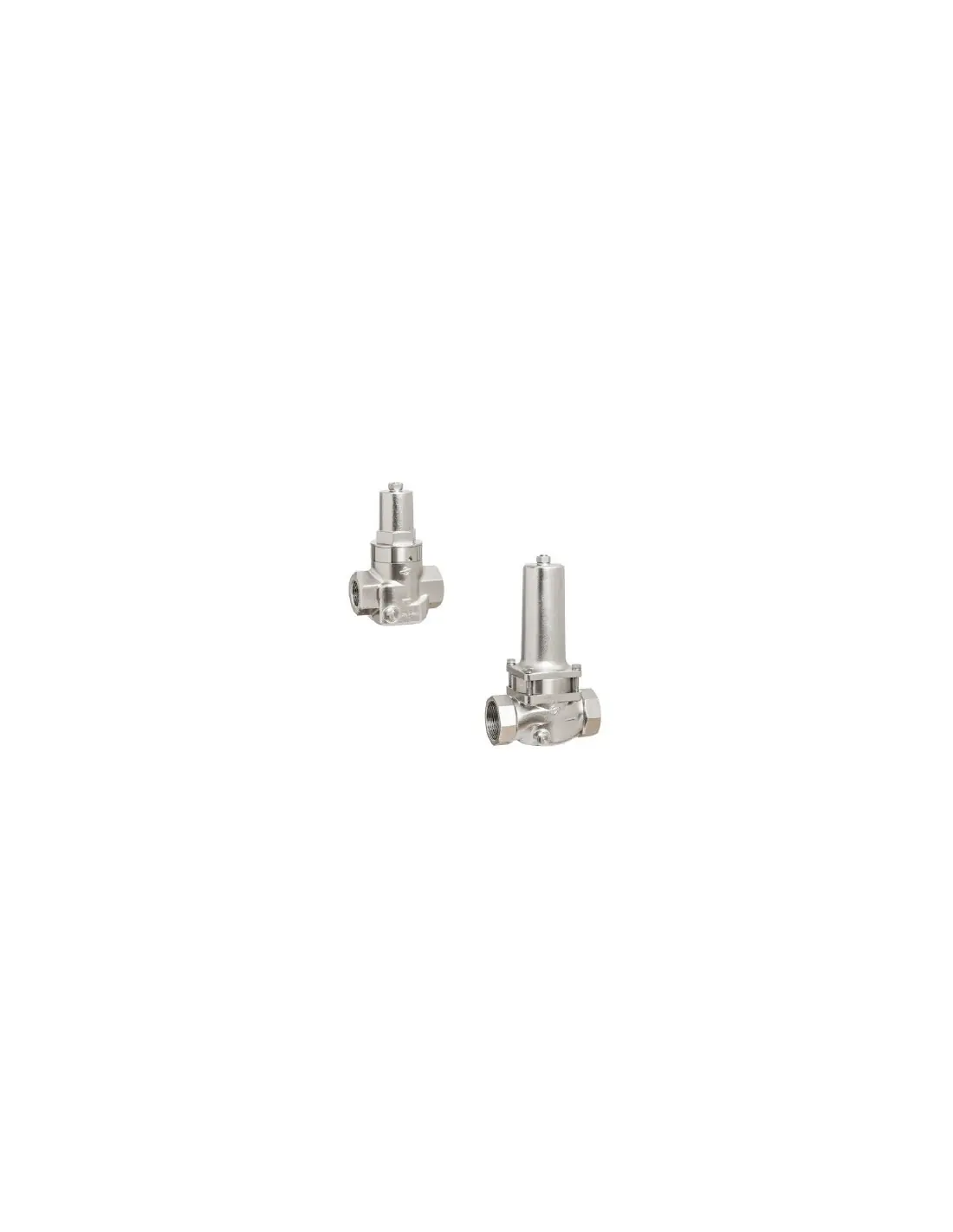

The Berluto DRV 724 and DRV 725 are direct-acting, piston-operated, spring-loaded, single-seat pressure reducers with inlet pressure compensation. Downstream pressure is mechanically regulated without external energy or impulse line. The cartridge design allows for replacement of internal components during maintenance.
The body and spring cap are made of stainless steel 1.4408. Wetted internal parts are stainless steel 1.4404. Seals are available in NBR up to 100°C, FKM up to 190°C, and EPDM up to 130°C for DN40–DN50 only.
The series is used in aggressive water and other aggressive liquids. It can also be applied to air and neutral gases when the required flow is covered by the available Kvs.
DRV 724 is selected for downstream pressure 1.5–12 bar. DRV 725 covers a higher set point, 2–20 bar. Selection requires p1, p2, flow rate, DN, Kvs, temperature, medium, and elastomer compatibility.
The valve features an integrated filter and dual gauge connection G 1/4” for outlet pressure indication. Installation position can be any, with a preference for vertical. The technical datasheet references PED 2014/68/EU and classification approvals DNV GL, ABS, LR, CCS, and BV.
DRV 724 / 725
Pressure reducing valves of the series are piston-controlled, spring-loaded pressure reducing valves and have inlet pressure compensation. The cartridge design allows easy replacement of the internal parts.
Nominal size DN 15 up to DN 50
Inlet pressure up to 40 bar
Outlet pressure from 1,5 up to 20 bar
Temperature range -30 °C to 190 °C

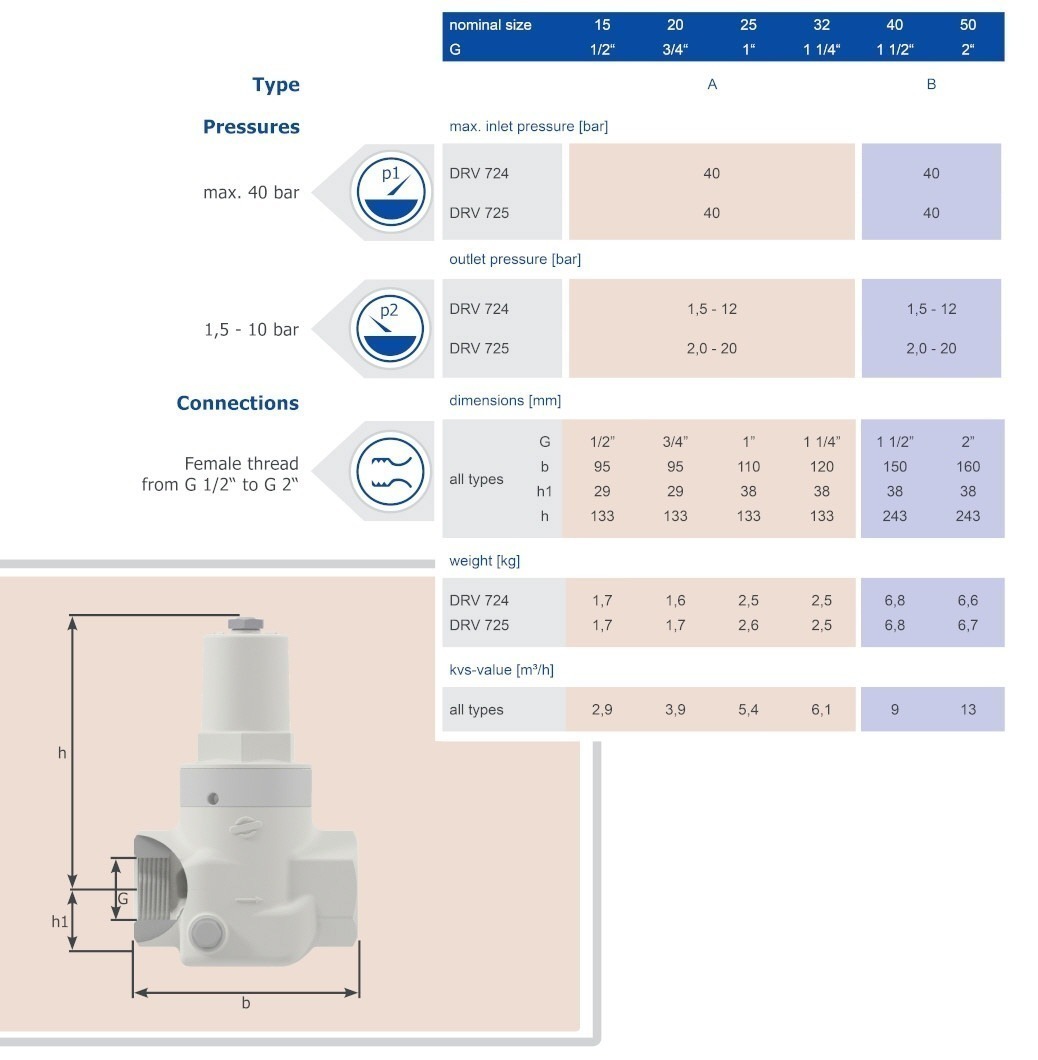

Technical data
