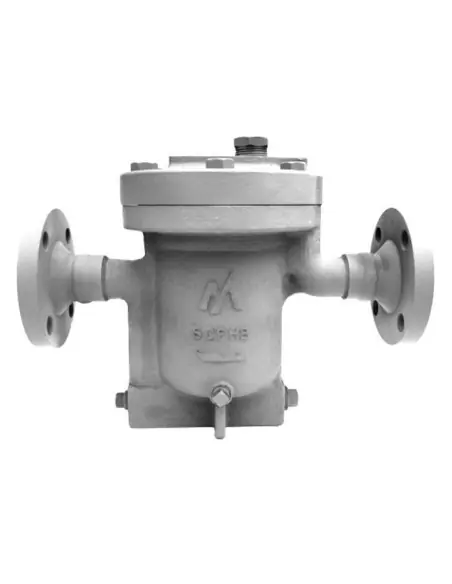

Inverted bucket steam trap - ESH21 | Miyawaki

Name: Inverted bucket steam trap - ESH21 | Miyawaki
Brand: Miyawaki
SKU: Inverted bucket steam trap - ESH21 | Miyawaki

Innovative Steam Control: Inverted bucket steam trap - ESH21 | Miyawaki

Discover unmatched reliability with the Inverted bucket steam trap - ESH21 | Miyawaki, designed for efficient steam management in demanding industrial environments. Engineered for longevity and consistent performance, this trap ensures your steam system runs smoothly, conserves energy, and minimizes costs.

Features & Benefits of the Inverted bucket steam trap - ESH21 | Miyawaki

Dependable Operation: The inverted bucket design offers automatic removal of condensate without wasting steam, keeping your processes running smoothly and efficiently.
Durable Construction: Built with high-quality stainless steel components, the ESH21 withstands harsh conditions and guarantees long-term performance with minimal maintenance.
Energy Efficiency: By precisely separating condensate and steam, the ESH21 reduces steam losses and saves energy, which directly translates into lower operational costs.
Corrosion Resistance: Specially selected materials protect the trap from rust and corrosion, ensuring a longer service life even in aggressive industrial atmospheres.
Easy Installation and Maintenance: Compact and lightweight, the trap can be fitted easily into new or existing systems. Simple design means maintenance is quick, with minimal downtime.
Consistent Performance: The ESH21 operates reliably under variable loads and pressures, providing consistent condensate discharge without needing frequent adjustments.
Versatile Application: Suitable for a range of steam applications, from heating to process lines, giving you flexibility across different industrial settings.

The Inverted bucket steam trap - ESH21 | Miyawaki brings advanced technology to your steam system, making it easy to control and manage steam—no technical background needed. Its self-acting mechanism ensures water is removed while valuable steam stays in the system, maximizing efficiency. Choose ESH21 for a long-lasting, worry-free solution that keeps your operations at peak performance.

Standard (Options)

DIN
ANSI
JIS

Connection (Options)

Flanged
Socket Weld

Material (Options)

Cast Steel

Pressure Rating (Options)

2,1 - 4,4 Mpa

Description

Option- Customized flange face-to-face - ASTM available

1978 Received the Award for Excellence in Energy Saving

Features

No condensate logging on primary side

Intermittent or continuous discharge depending on condensate loads means no condensate stacking up on the primary side.

Easy maintenance

For quick and easy maintenance, this model can be repaired directly in line.

Complete steam containment

A double steam separation mechanism (implemented with a U-shaped duct and inverted bucket) provides reliable steam separation and ensures trap tightness.

Superb durability

Offers superb durability thanks to the SCCV System valve and robust super lever, as well as stainless steel internal components.

Condensate recovery

With its high degree of back pressure tolerance, this model supports condensate recovery at pressures up to 90% of the upstream pressure.

Free from steam and air locking

This model is free from steam and air locking due to a small air vent hole in the top of the bucket (discharges hot air and non-condensable gases).

*’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.

Typical applications

Suitable for use in a wide range of fields including the plant industry, foodstuff manufacturing, dyeing, cleaning, and air conditioning.

Dimensions/Weight

Screwed

Size (”)	Dimensions (mm)				Dimensions (in)				Weight
	L	H1	H2	W	L	H1	H2	W	(kg)	(lb)
1/2”	350	145	160	205	13.8	5.7	6.3	8.1	31,0	68.3
3/4”
1”

Socket Weld

Size (”)	Dimensions (mm)				Dimensions (in)				Weight
	L	H1	H2	W	L	H1	H2	W	(kg)	(lb)
1/2”	300	145	160	205	11.8	5.7	6.3	8.1	28,0	61.7
3/4”
1”

*Customized face-to-face dimensions on request

Specifications

Model	Connection		Max. operating pressure		Max. operating pressure differential		Max. operating temperature		Body material
	Type	Size	(MPa)	(psig)	(MPa)	(psig)	TMO(℃)	TMO(℉)
ESH21F-21	Flanged FF,RF*	1/2”	2,1	305	2,1	305	400	752	Cast steel SCPH2
		3/4”
		1”
ESH21F-45		1/2”	4,4	640	4,4	640
		3/4”
		1”
ESH21W-21	Socket Weld SW	1/2”	2,1	305	2,1	305
		3/4”
		1”
ESH21W-45		1/2”	4,4	640	4,4	640
		3/4”
		1”

●ESH21-21 PMA: 4,4MPa (640psig), TMA: 400℃ (752℉), PMO: 2,1MPa (305psig), TMO: 400℃ (752℉)

●ESH21-45 PMA: 4,4MPa (640psig), TMA: 400℃ (752℉), PMO: 4,4MPa (640psig), TMO: 400℃ (752℉)

*Available flange standards: ASME/JPI, DIN, JIS

*Customized size 1-1/4”, 1-1/2”, and 2” on request.

Discharge Capacity

Installation Examples

●To keep the drawing simple, bypass lines, valves, and other required equipment are not displayed.

●If you wish to recover condensate, attach a check valve (CV model) and shut off valve on the trap’s outlet side.
