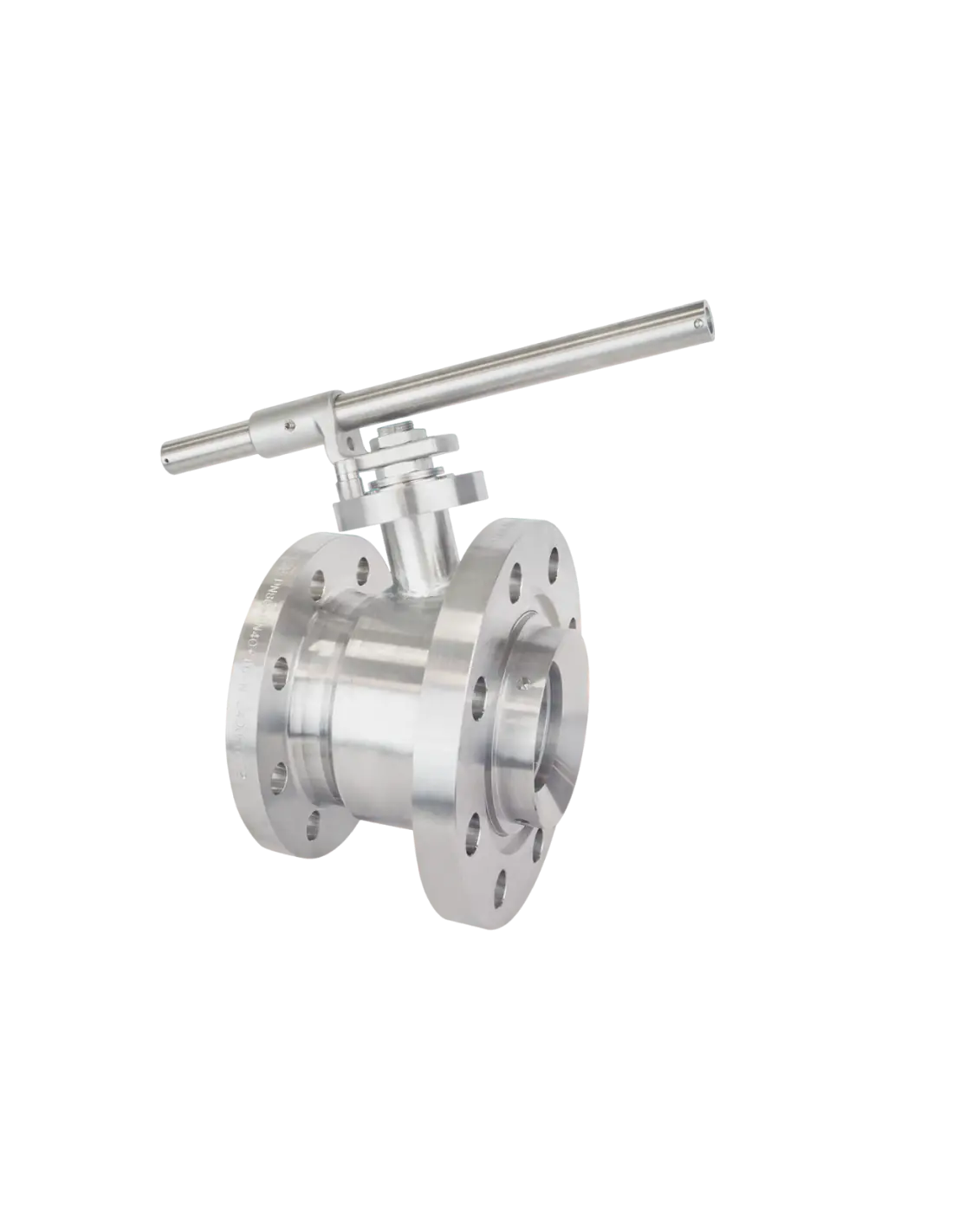

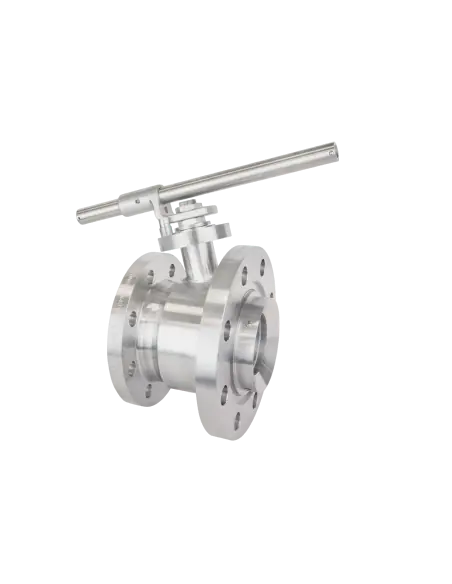

Adler FA8 Spherical Tank Bottom Valve

The Adler FA8 is a wafer-type full bore ball valve designed for direct installation at tank bottoms, featuring an enlarged tank flange. Manufactured in accordance with BS EN 12516-2, ANSI B16.34, and ISO 14313, it is configured for draining process or storage vessels. The design supports process isolation and controlled discharge in industrial environments.

Technical Data

  • Sizes: DN50 to DN100 (standard range)
  • Pressure: PN10 to PN16; ANSI 150 available on request
  • Body Material: ASTM A479 316 / 316L
  • Ball & Stem: ASTM A479 316 / 316L
  • Seats: PTFE, optional RPTFE
  • Stem Sealing: Chevron rings PTFE/graphite
  • O-ring: FKM/Viton (optional)
  • Flanges: EN 1092-1 or ANSI B16.5
  • Top Flange: ISO 5211 for actuator mounting
  • Standard anti-static device and anti blow-out stem

Operational Use

Wafer design reduces installation length compared to traditional flanged valves and mounts directly at the tank outlet. The 15° inclined stem improves accessibility for manual or automated operation beneath the tank. Suitable for process water, chemicals compatible with 316L/PTFE, storage products, and drain lines requiring low pressure drop.

Execution Options

Available in fire-safe versions per ISO 10497, API 607 / BS6755, cryogenic execution per ISO 28921, PED 2014/68/EU, ATEX 2014/34/EU, ISO 15848 fugitive emission class A, and SIL 3 capable for automated valves. Oxygen service degreasing per ISO 23208 and certified PTFE (BAM, FDA, MOCA) available on request.

Automation

ISO 5211 interface supports pneumatic (double/single acting), electric actuators, manual gearboxes, and pneumatic/electropneumatic positioners. For automated service, verify torque, cycle frequency, temperature, and stem leakage parameters.

FAQ

When is FA8 selected?
When a compact wafer-type tank bottom valve with flanged connection and automation capability is required.

Is it suitable for hazardous areas?
ATEX execution is available. Final classification must comply with installation zone and process media.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16

Datasheet and documents

Description

Ball valve “WAFER TYPE” end tank execution with tilted 15° stem , full bore, oversize flange for connections tank, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313.

Available size from DN 50 to DN 100 in stainless steel and special steel

Rating PN 10 ÷ 16 – ANSI 150 on request.

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxige service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extensions

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certifications

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
