Ball Valve - End tank execution - 2053 | Genebre

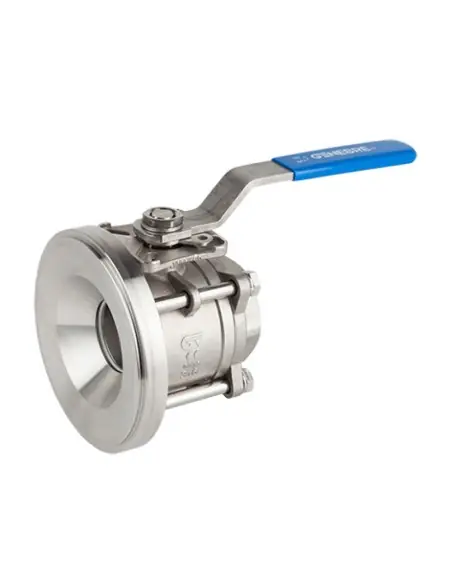

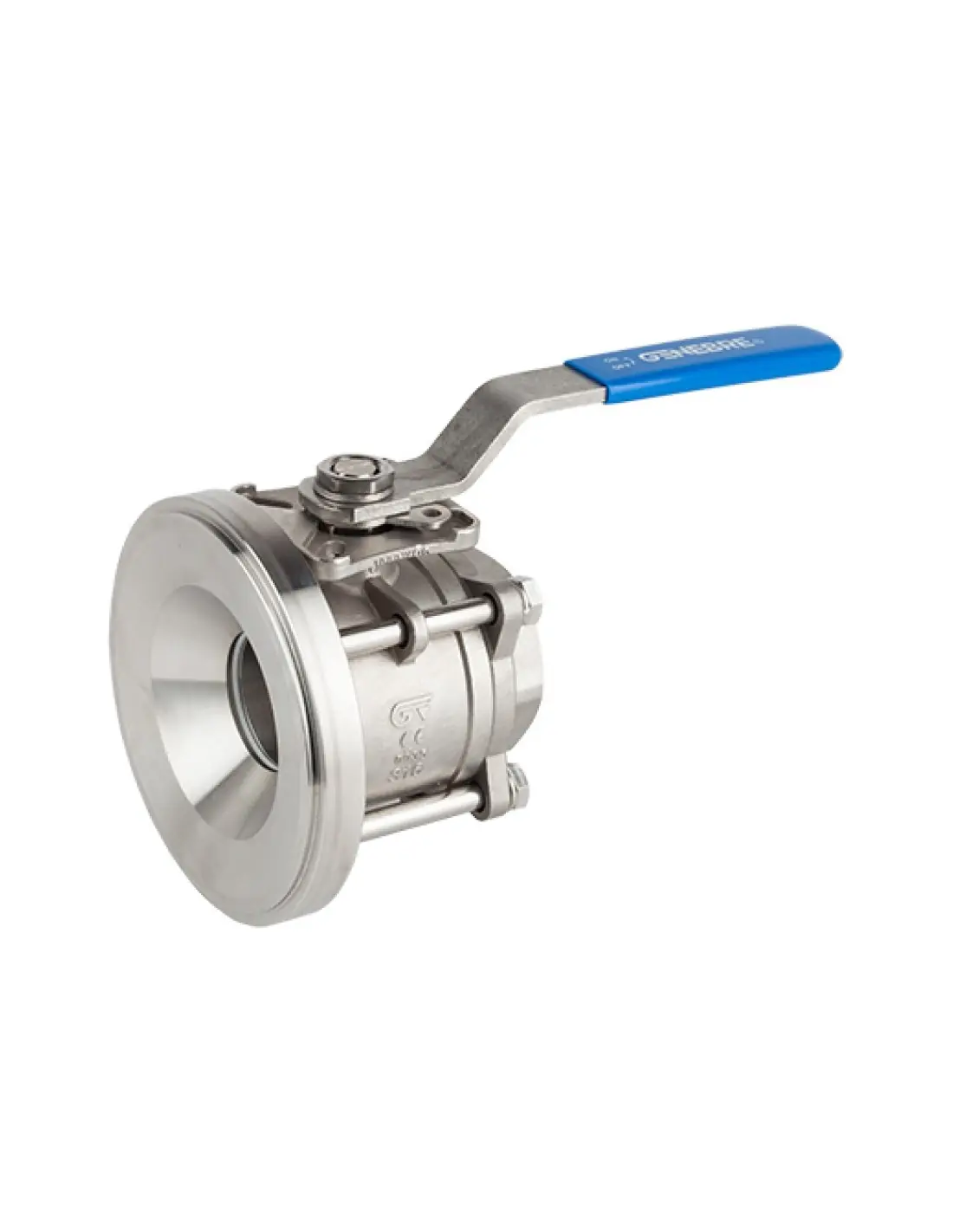

Genebre 2053 Spherical Tank Bottom Valve

Three-piece full bore ball valve designed for tank bottom drainage or isolation. The 2053 model features a tank bottom flange and a butt weld outlet per ANSI B16.25, in contrast to the 2052 variant which uses a threaded ISO 7/1 outlet.

Technical Specifications

  • Sizes: 1/2" to 4"
  • Operating pressure: PN63 / up to 63 bar
  • Temperature range: -25°C to +180°C
  • Body and ball: Stainless steel CF8M / 1.4408
  • Tank flange: AISI 316L
  • Seats: PTFE + 15% glass fiber
  • Stem sealing: FPM / Viton and PTFE + graphite
  • Blow-out proof stem
  • Manual lever with locking device
  • Automation: Direct actuator mounting ISO 5211

Butt Weld Outlet Selection

Butt weld outlets are specified where permanent, threadless connections are required. Suitable for systems prioritizing mechanical rigidity, precise pipe alignment, and unobstructed internal geometry for process and maintenance considerations.

Applications

Used in process water, oil, and chemical tanks compatible with 316/316L stainless steel, PTFE with glass fiber, and FPM. Valve selection should consider temperature, pressure, media concentration, and presence of solids.

Installation and Maintenance

During welding, remove ball, seats, and seals to prevent thermal damage. After cooling, clean sealing surfaces and reassemble the body, tightening bolts diagonally. The valve is bidirectional. Do not leave in intermediate positions without flow and pressure drop calculations. Avoid media that solidify, crystallize, or polymerize inside the ball cavity.

FAQ

When is 2053 selected over 2052?
When a welded outlet is required instead of a threaded connection.

Is pneumatic or electric actuation possible?
Yes, via ISO 5211 direct mounting. The manual lever can be removed for automation.

Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 63
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Const. stainless steel CF8M (316) and 316l (tank bottom).

Ends: butt weld ANSI B 16.25 and tank bottom.

Seats: PTFE + 15% FV. O’ring stem: viton.

PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211.

Manually operated by handle with locking system.

Reference: 2053

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2053 04TANK BOTTOM BALL VALVE BW 1/2"10.441/1
2053 05TANK BOTTOM BALL VALVE BW 3/4"10.821/1
2053 06TANK BOTTOM BALL VALVE BW 1"11.021/1
2053 07TANK BOTTOM BALL VALVE 1 1/4"11.791/1
2053 08TANK BOTTOM BALL VALVE 1 1/2"13.661/1
2053 09TANK BOTTOM BALL VALVE BW 2"13.471/1
2053 10TANK BOTTOM BALL VALVE 2 1/2"18.51/1
2053 11TANK BOTTOM BALL VALVE BW 3"115.641/1
2053 12TANK BOTTOM BALL VALVE BW 4"116.651/1
