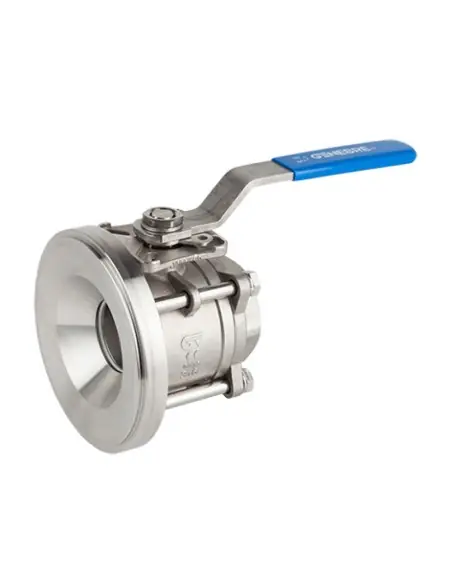

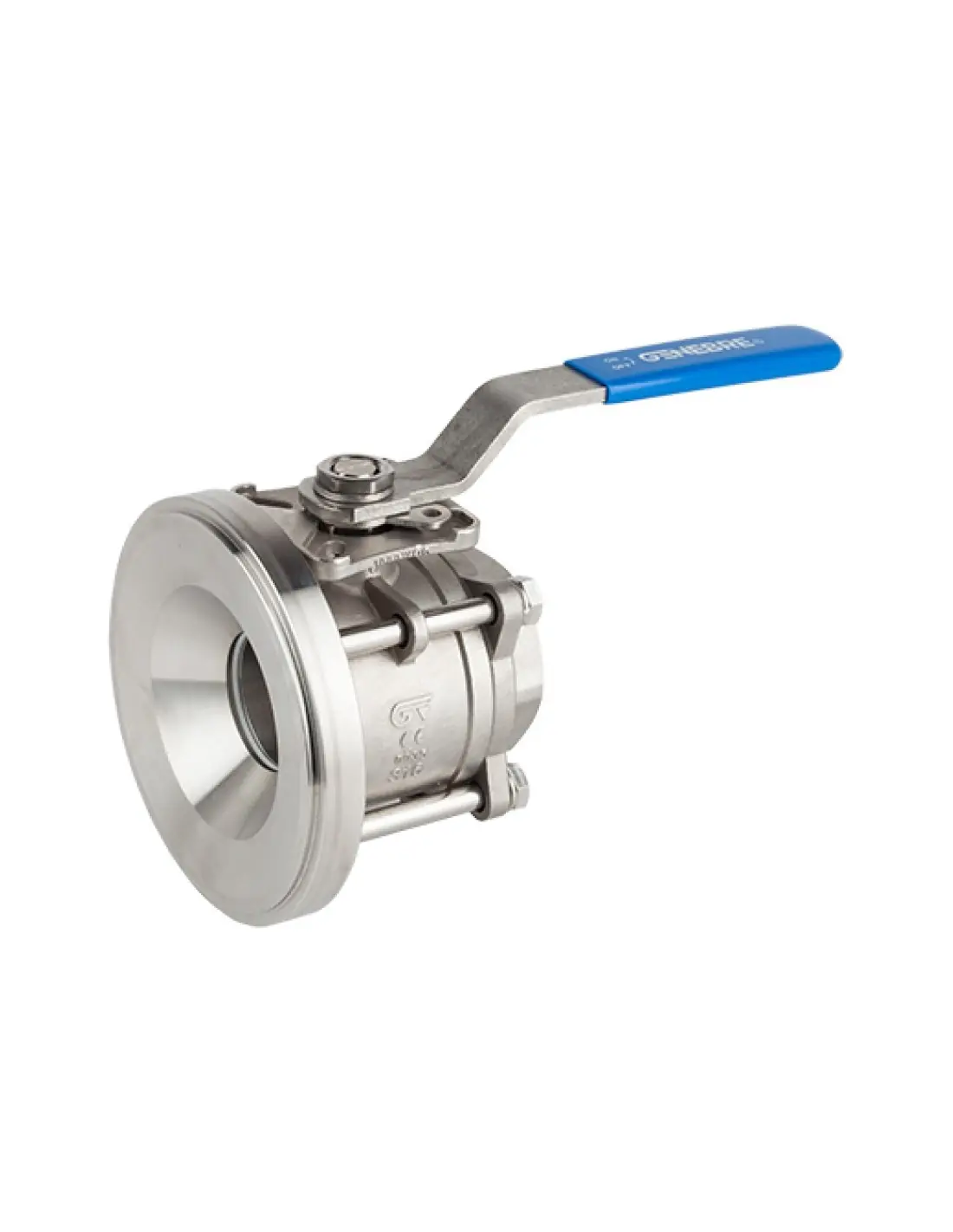

Genebre 2052 Tank Bottom Ball Valve

Three-piece, full bore ball valve designed for tank bottom drainage or isolation. The tank side features a special AISI 316L bottom flange, while the outlet is threaded per ISO 7-1 / EN 10226-1. Body and ball are stainless steel CF8M / 1.4408, suitable for process environments requiring corrosion resistance.

Technical Specifications

Sizes: 1/2" to 4"
Operating pressure: up to 63 bar / PN63
Temperature range: -25°C to +180°C
Seats: PTFE + 15% glass fiber
Stem sealing: FPM / Viton O-ring and PTFE + graphite packing
Stem: blow-out proof design
Operation: lever with locking device
Automation: direct actuator mounting per ISO 5211

Applications

Used in storage or process tanks where low pressure drop during drainage is required. Compatible media include process water, oils, and mild chemicals, provided they are suitable for 316/316L stainless steel, glass-filled PTFE, and FPM. Media compatibility must be verified for each application, considering temperature and concentration.

Selection Compared to Other Variants

Type 2052 is selected when a threaded outlet is required. For welded outlet, refer to type 2053. The three-piece construction allows removal of the central body for maintenance without disconnecting end connections from the installation.

Installation and Operation Guidelines

The tank bottom flange must be welded with care to avoid distortion from overheating. Do not use the lever as a tightening tool on the threaded side; tightening should be performed on the hexagonal area with torque below 30 Nm.

Prolonged operation in intermediate positions is not recommended unless flow and pressure drop have been calculated, as seat life may be reduced. Media that solidify, crystallize, or polymerize should not remain in the ball cavity.

FAQ

Is pneumatic actuation possible?
Yes, via ISO 5211 interface. Pneumatic, electric, and electro-pneumatic actuator assemblies are available.

What maintenance is required?
Periodic cycling, inspection for stem, seat, and body leakage, and depressurization of the line before disassembly are recommended.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 63

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Const. stainless steel CF8M (316) and 316l (tank bottom).

Ends: gas thread ISO 7-1 (EN 10226-1) and tank bottom.

Seats: PTFE + 15% FV. O’ring stem: viton. PN 63.

Temp. -25ºC +180ºC. Direct assembling ISO 5211.

Manually operated by handle with locking system.

Reference: 2052

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2052 04	TANK BOTTOM BALL VALVE 1/2"	1	0.44	1/1
2052 05	TANK BOTTOM BALL VALVE 3/4"	1	0.82	1/1
2052 06	TANK BOTTOM BALL VALVE RG.1"	1	1.76	1/1
2052 07	TANK BOTTOM BALL VALVE 1 1/4"	1	1.79	1/1
2052 08	TANK BOTTOM BALL VALVE 1 1/2"	1	4.14	1/1
2052 09	TANK BOTTOM BALL VALVE 2"	1	5.32	1/1
2052 10	TANK BOTTOM BALL VALVE 2 1/2"	1	12.5	1/1
2052 11	TANK BOTTOM BALL VALVE 3"	1	17.12	1/1
2052 12	TANK BOTTOM FULL BORE B.VALVE	1	19.65	1/1
