Ball Valve V control - 3 pieces - 2025V | Genebre

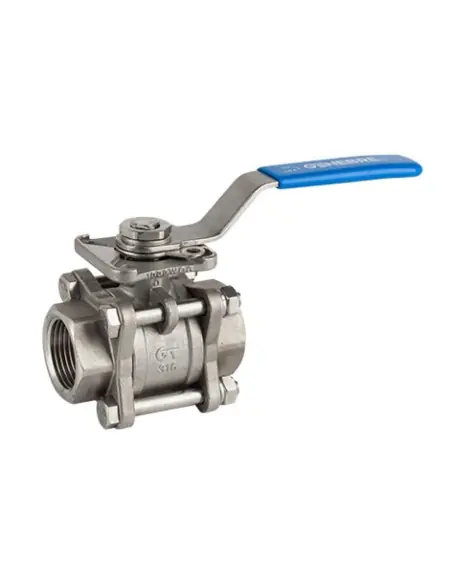

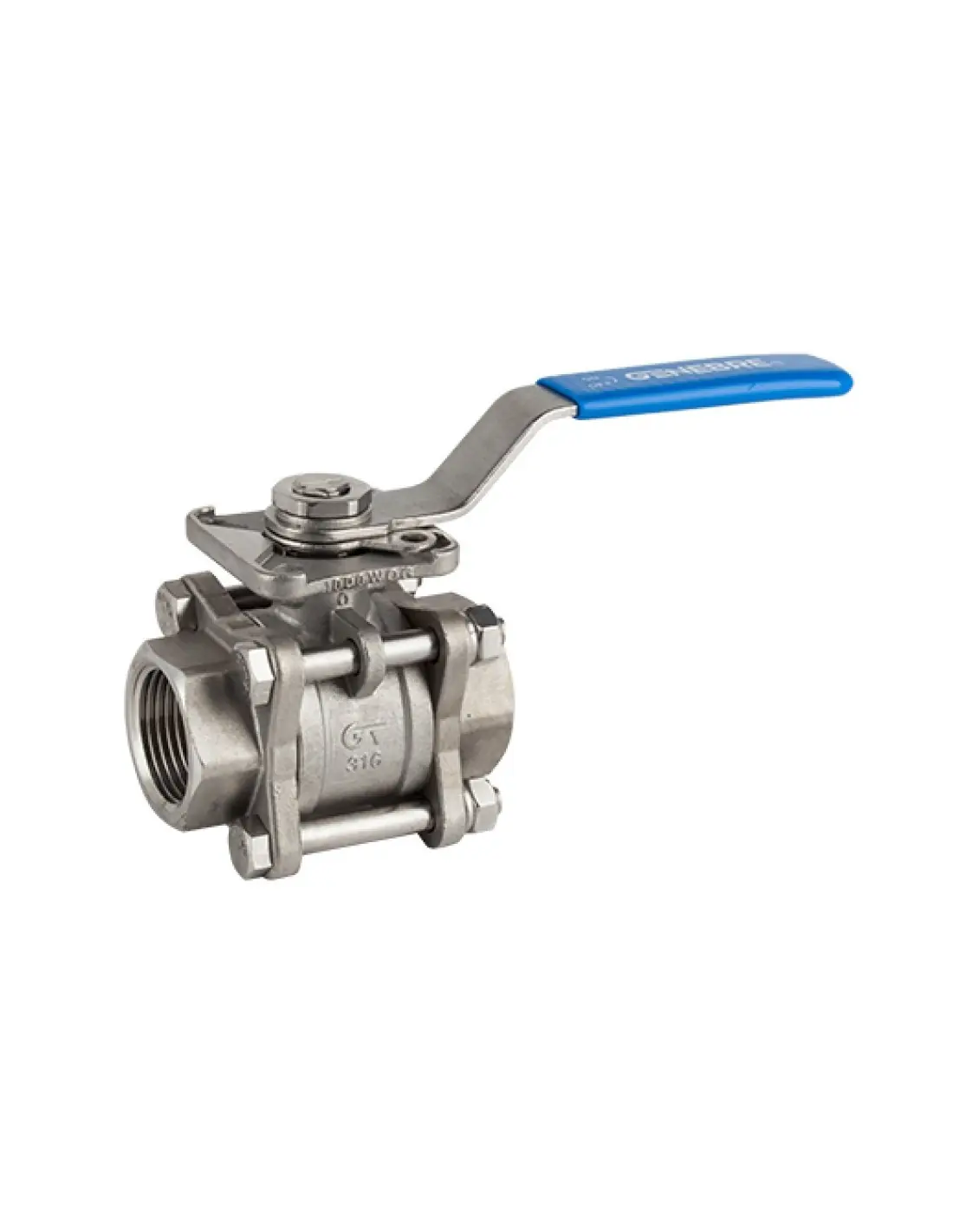

Genebre 2025V Analog V-Port Ball Valve

The Genebre 2025V is a three-piece V-port control ball valve designed for flow modulation in industrial process lines. The V-type ball enables proportional flow control, making the valve suitable for applications requiring throttling, not just on/off isolation. Body and trim are stainless steel CF8M / AISI 316, with threaded ends and direct actuator mounting via ISO 5211 interface.

Technical Data

  • Construction: Three-piece
  • Connections: NPT thread per Genebre specification
  • Sizes: 1/2" to 4"
  • Pressure rating: PN63
  • Temperature range: -25°C to +180°C
  • Seats: PTFE + 15% glass fibre
  • Stem O-ring: Viton / FKM
  • V-port options: 30°, 60°, 90°
  • Operation: Lever with locking system or ISO 5211 actuator.

V-Port Selection

The V-notch angle determines available Kv and flow characteristic at partial opening. V30 is used for fine control and low flow rates, V60 for intermediate range, and V90 for higher flow. For DN50, Kv at 100% open is 31.6 / 68.4 / 131.5 for V30 / V60 / V90 respectively.

Installation & Operation

Install valve according to flow direction indicated on the body. Ensure clean piping, proper alignment, and upstream filtration to prevent seat and ball damage from particulates or weld debris.

Three-piece design allows in-line maintenance of the central body with minimal piping disturbance compared to two-piece valves. Avoid leaving media that solidify, crystallize, or polymerize inside the ball cavity.

FAQ

When to select over 2015V?
When three-piece construction is required for easier maintenance or for sizes up to 4".

What data is needed for selection?
DN, V30/V60/V90, required Kv, differential pressure, media, temperature, seat material, actuator type.

Standard (Options)
  • DIN
Connection (Options)
  • BSP
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 15
  • PN 20
  • PN 25
  • PN 32
  • PN 40
  • PN 50
  • PN 65
  • PN 80
  • PN 100
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Const.: stainless steel CF8M (316) investment casting NPT thread. Seats and seats: PTFE +15% GF o’ring stem: viton PN-63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.

Reference: 2025N

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2025V 30 04V30 CONTROL VALVE 2025 3 PIECES 1/2"10.81/1
2025V 30 05V30 CONTROL VALVE 2025 3 PIECES 3/4"10.8351/1
2025V 30 06V30 CONTROL VALVE 2025 3 PIECES 1"11.041/1
2025V 30 07V30 CONTROL VALVE 2025 3 PIECES 1 1/4"11.881/1
2025V 30 08V30 CONTROL VALVE 2025 3 PIECES 1 1/2"12.5471/1
2025V 30 09V30 CONTROL VALVE 2025 3 PIECES 2"13.71/1
2025V 30 10V30 CONTROL VALVE 2025 3 PIECES 2 1/2"111.31/1
2025V 30 11V30 CONTROL VALVE 2025 3 PIECES 3"113.0771/1
2025V 30 12V30 CONTROL VALVE 2025 3 PIECES 4"120.311/1
2025V 60 04V60 CONTROL VALVE 2025 3 PIECES 1/2"10.61/1
2025V 60 05V60 CONTROL VALVE 2025 3 PIECES 3/4"10.8351/1
2025V 60 06V60 CONTROL VALVE 2025 3 PIECES 1"11.0931/1
2025V 60 07V60 CONTROL VALVE 2025 3 PIECES 1 1/4"11.8721/1
2025V 60 08V60 CONTROL VALVE 2025 3 PIECES 1 1/2"12.5321/1
2025V 60 09V60 CONTROL VALVE 2025 3 PIECES 2"13.671/1
2025V 60 10V60 CONTROL VALVE 2025 3 PIECES 2 1/2"18.9351/1
2025V 60 11V60 CONTROL VALVE 2025 3 PIECES 3"112.9771/1
2025V 60 12V60 CONTROL VALVE 2025 3 PIECES 4"120.161/1
2025V 90 04V90 CONTROL VALVE 2025 3 PIECES 1/2"10.611/1
2025V 90 05V90 CONTROL VALVE 2025 3 PIECES 3/4"10.831/1
2025V 90 06V90 CONTROL VALVE 2025 3 PIECES 1"11.0961/1
2025V 90 07V90 CONTROL VALVE 2025 3 PIECES 1 1/4"11.871/1
2025V 90 08V90 CONTROL VALVE 2025 3 PIECES 1 1/2"12.521/1
2025V 90 09V90 CONTROL VALVE 2025 3 PIECES 2"13.6551/1
2025V 90 10V90 CONTROL VALVE 2025 3 PIECES 2 1/2"18.8951/1
2025V 90 11V90 CONTROL VALVE 2025 3 PIECES 3"112.9171/1
2025V 90 12V90 CONTROL VALVE 2025 3 PIECES 4"120.021/1
