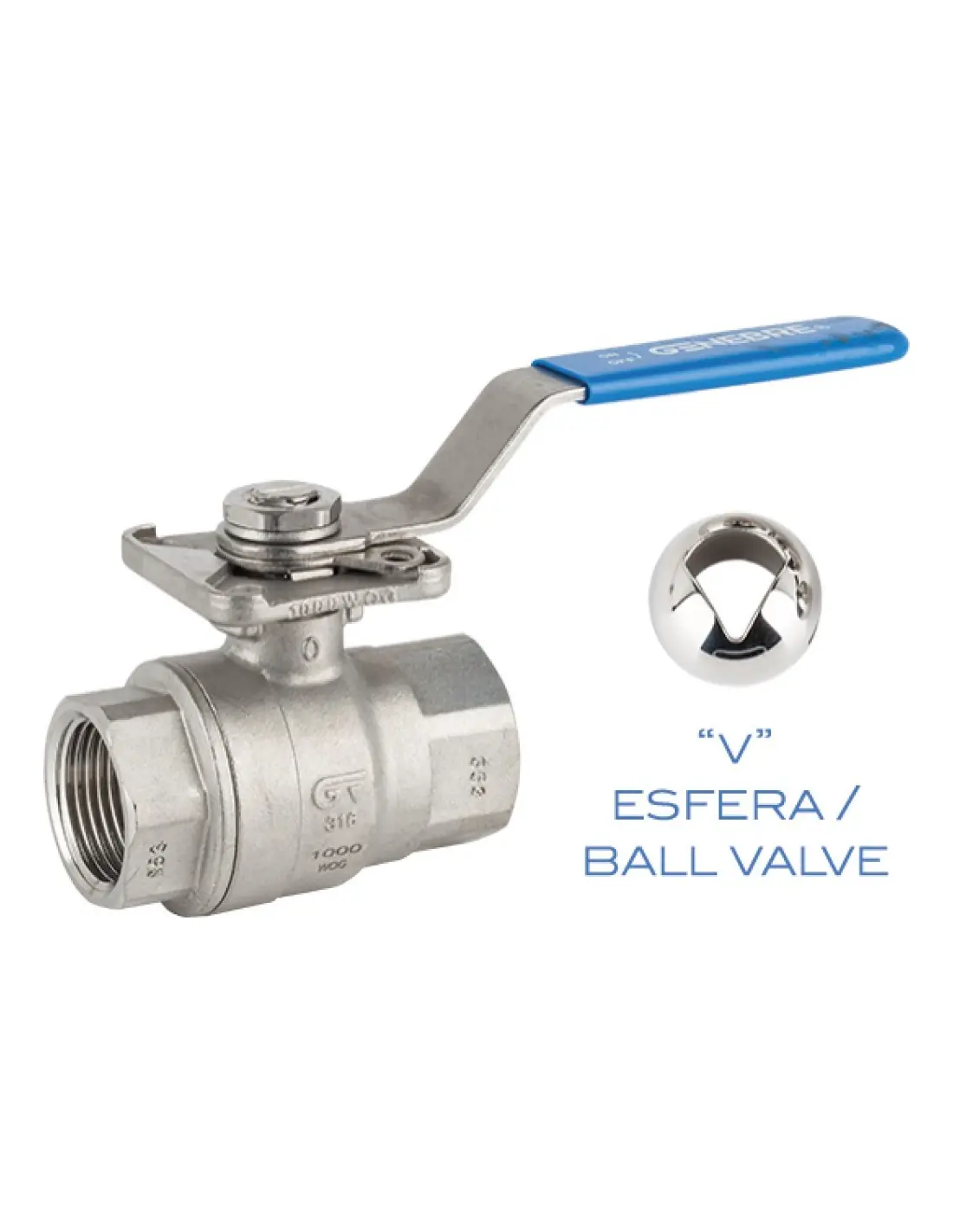

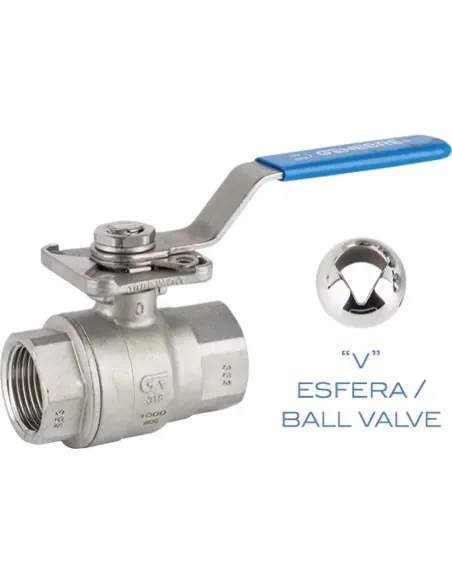

Genebre 2015V Analog V-Port Ball Valve

The Genebre 2015V is a two-piece V-port ball valve constructed from AISI 316 / CF8M stainless steel. Designed for proportional flow control, it features a V-type ball and threaded ends per ISO 7-1 / EN 10226-1. Manual lever operation is standard, with direct actuator mounting via ISO 5211 interface.

Technical Data

Sizes: 1/2" to 2"
Pressure rating: PN63
Temperature range: -25°C to +180°C
Seats and seals: PTFE + glass fibre
Stem O-ring: Viton / FKM
V-port angles: 30°, 60°, 90°
Operation: Lever with locking system
Automation: Pneumatic or electric actuator via ISO 5211.

V-Port Selection

V-port angle determines flow characteristic and control sensitivity. V30 is used for lower Kv and finer control at small openings. V60 is suitable for intermediate flows. V90 provides higher flow at full open. For DN50, typical Kv at 100%: 31.6 (V30), 68.4 (V60), 131.5 (V90).

Installation & Operation

Observe flow direction as indicated on the valve body. Do not use the lever for tightening; apply torque (<30 Nm) to the hex area. Ensure clean piping and install a strainer upstream to prevent seat and ball damage from particulates.

FAQ

Is this an on/off valve?
No. This is a control ball valve with V-port for proportional flow regulation.

What information is required for selection?
Specify DN, V30/V60/V90, Kv or required flow, differential pressure, temperature, medium, control signal, and actuator fail position.

Standard (Options)

Connection (Options)

Material (Options)

AISI 316 (Stainless Steel)

Pressure Rating (Options)

PN 63

Seat (Options)

PTFE + Fiber Glass

Datasheet and documents

Description

Const. AISI 316 seats and seals PTFE + GF gas threaded ends ISO 7-1 (EN 10226-1). O’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211with locking system.

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2015V

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2015V 30 04	V30 CONTROL VALVE 2015 2 PIECES 1/2"	1	0.455	1/1
2015V 30 05	V30 CONTROL VALVE 2015 2 PIECES 3/4"	1	0.566	1/1
2015V 30 06	V30 CONTROL VALVE 2015 2 PIECES 1"	1	0.735	1/1
2015V 30 07	V30 CONTROL VALVE 2015 2 PIECES 1 1/4"	1	1.352	1/1
2015V 30 08	V30 CONTROL VALVE 2015 2 PIECES 1 1/2"	1	1.937	1/1
2015V 30 09	V30 CONTROL VALVE 2015 2 PIECES 2"	1	2.916	1/1
2015V 60 04	V60 CONTROL VALVE 2015 2 PIECES 1/2"	1	0.333	1/1
2015V 60 05	V60 CONTROL VALVE 2015 2 PIECES 3/4"	1	0.566	1/10
2015V 60 06	V60 CONTROL VALVE 2015 2 PIECES 1"	1	0.856	1/1
2015V 60 07	V60 CONTROL VALVE 2015 2 PIECES 1 1/4"	1	1.346	1/1
2015V 60 08	V60 CONTROL VALVE 2015 2 PIECES 1 1/2"	1	1.922	1/1
2015V 60 09	V60 CONTROL VALVE 2015 2 PIECES 2"	1	2.886	1/1
2015V 90 04	V90 CONTROL VALVE 2015 2 PIECES 1/2"	1	0.66	1/1
2015V 90 05	V90 CONTROL VALVE 2015 2 PIECES 3/4"	1	0.565	1/1
2015V 90 06	V90 CONTROL VALVE 2015 2 PIECES 1"	1	0.73	1/1
2015V 90 07	V90 CONTROL VALVE 2015 2 PIECES 1 1/4"	1	1.343	1/1
2015V 90 08	V90 CONTROL VALVE 2015 2 PIECES 1 1/2"	1	1.912	1/1
2015V 90 09	V90 CONTROL VALVE 2015 2 PIECES 2"	1	2.871	1/1
