Genebre 2025NV Analog V-Port Ball Valve

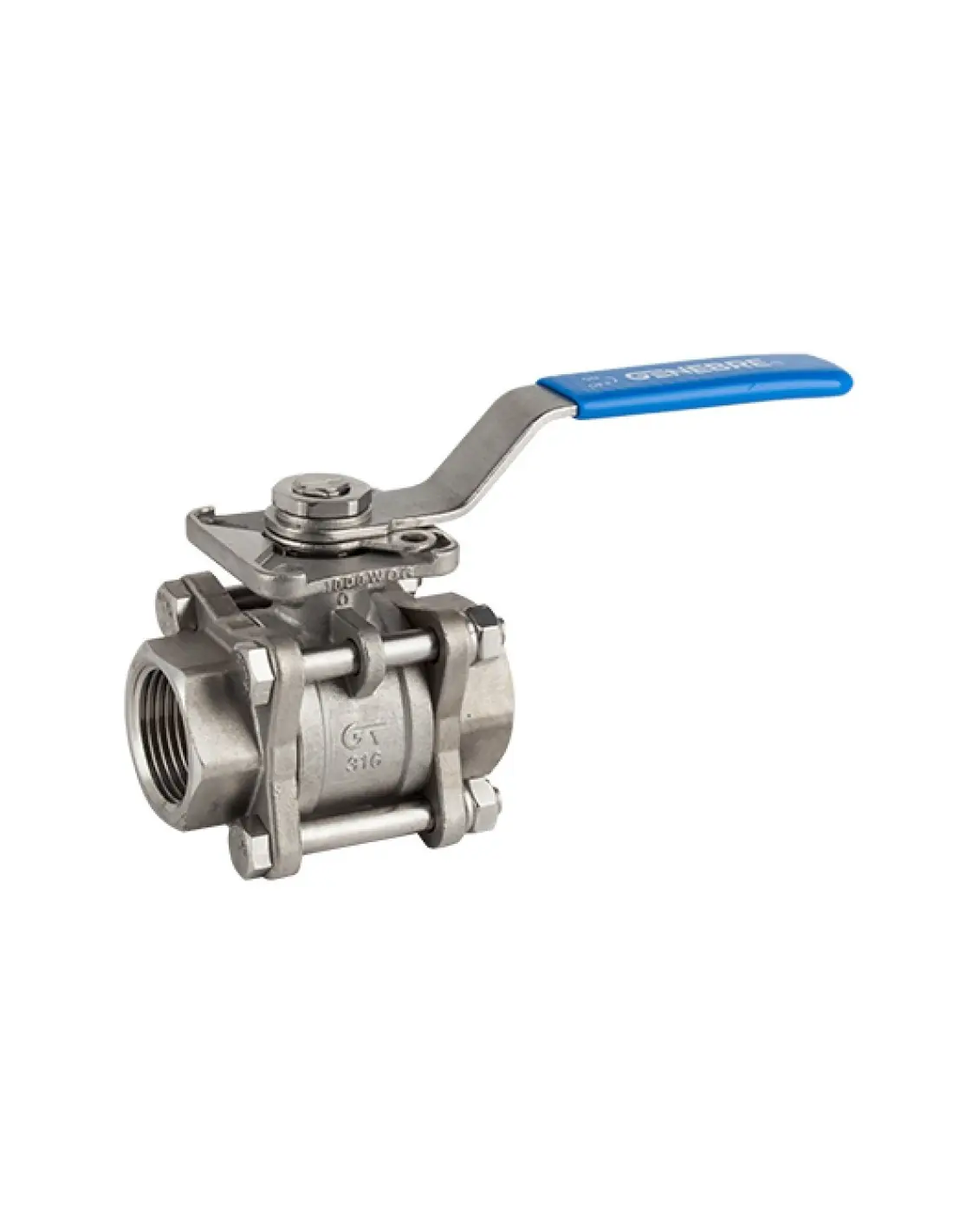

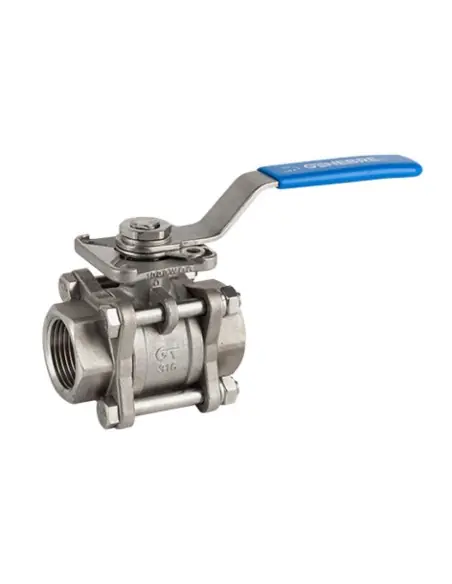

The Genebre 2025NV is a three-piece stainless steel flow control ball valve with a V-port ball and NPT threaded ends. This variant is based on the 2025V series but features NPT connections instead of ISO 7-1 / EN 10226-1. It is specified where proportional flow control is required, not simple on/off isolation.

Technical Data

Construction: Three-piece
Body material: stainless CF8M / AISI 316
Connections: NPT thread
Sizes: 1/2" to 2" in V-port versions
Pressure rating: PN63
Temperature range: -25°C to +180°C
Seats: PTFE + 15% glass fibre
Stem O-ring: Viton / FKM
V-port options: 30°, 60°, 90°
Actuation: direct mounting ISO 5211 with locking system

V-Port Angle Selection

The V-port angle determines available Kv and sensitivity at partial openings. V30 provides lower flow and finer control at small openings. V60 is an intermediate option. V90 offers maximum flow at full open. For DN50, Kv at 100% is 31.6 for V30, 68.4 for V60, and 131.5 for V90.

Installation and Operation

Valve has a defined flow direction and must be installed per the arrow on the body. Piping should be free of debris or weld residues; upstream filtration is recommended to protect ball and seats. Do not use the lever for tightening; use hex surfaces and limit torque to 30 Nm.

FAQ

When is 2025NV selected over 2025V?
When the line requires NPT threads instead of BSP / ISO 7-1.

What is required for actuator selection?
DN, V30/V60/V90, required Kv, differential pressure, torque, media, temperature, and control signal.

Standard (Options)

Connection (Options)

Material (Options)

Stainless Steel

Pressure Rating (Options)

PN 63

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Const.: stainless steel CF8M (316) investment casting NPT thread. Seats and seats: PTFE +15% GF o’ring stem: viton PN-63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2025NV

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2025NV 30 04	V. 2025N 04 V30 1/2"	1	0.8	1/1
2025NV 30 05	V. 2025N 05 V30 3/4"	1	0.835	1/1
2025NV 30 06	V. 2025N 06 V30 1"	1	1.04	1/1
2025NV 30 07	V. 2025N 07 V30 1 1/4"	1	1.878	1/1
2025NV 30 08	V. 2025N 08 V30 1 1/2"	1	2.547	1/1
2025NV 30 09	V. 2025N 09 V30 2"	1	3.7	1/1
2025NV 30 11	3PCS FULL BORE BALL V. 1/4"	1	13.077	1/1
2025NV 60 04	V. 2025N 04 V60 1/2"	1	0.423	1/1
2025NV 60 05	V. 2025N 05 V60 3/4"	1	0.835	1/1
2025NV 60 06	V. 2025N 06 V60 1"	1	1.04	1/1
2025NV 60 07	V. 2025N 07 V60 1 1/4"	1	1.872	1/1
2025NV 60 08	V. 2025N 08 V60 1 1/2"	1	2.532	1/1
2025NV 60 09	V. 2025N 09 V60 2"	1	3.67	1/1
2025NV 90 04	V. 2025N 04 V90 1/2"	1	0.506	1/1
2025NV 90 05	V. 2025N 05 V90 1/4"	1	1.016	1/1
2025NV 90 06	V. 2025N 06 V90 1"	1	1.035	1/1
2025NV 90 07	V. 2025N 07 V90 1 1/4"	1	1.87	1/1
2025NV 90 08	V. 2025N 08 V90 1 1/2"	1	2.522	1/1
2025NV 90 09	V. 2025N 09 V90 2"	1	3.655	1/1
