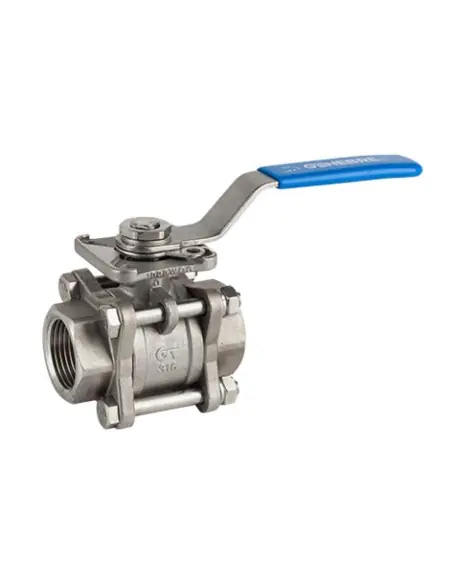

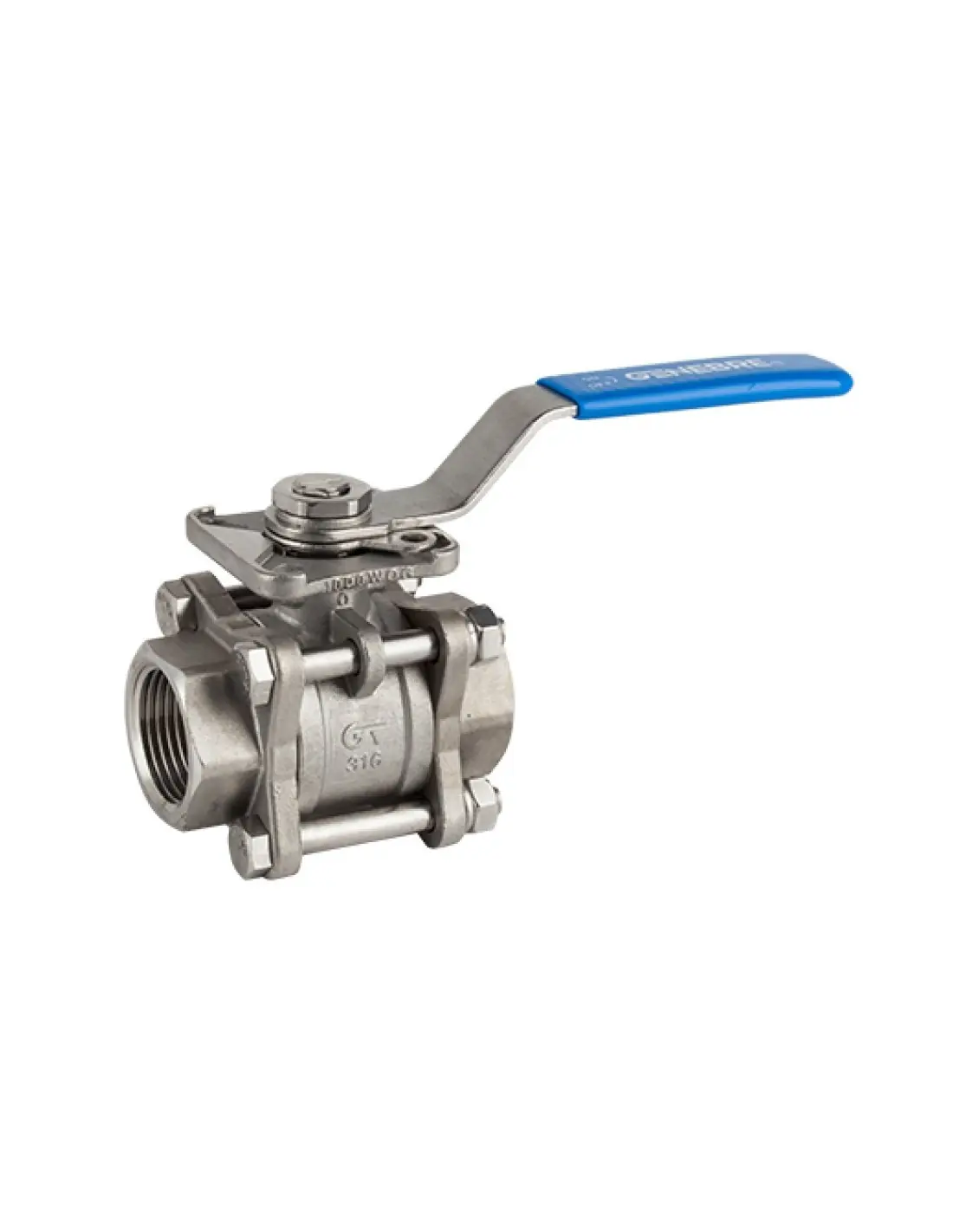

Genebre 2026V Analog V-Port Ball Valve

The Genebre 2026V is a three-piece stainless steel control ball valve with a V-port ball. The technical datasheet specifies it as a “V control stainless steel ball valve, 3 pieces”. Note: Some sources mention a 4-piece design; verify configuration before ordering.

Technical Data

Body material: CF8M / AISI 316
Seats: PTFE + 15% glass fibre
Stem O-ring: Viton / FKM
Pressure rating: PN63 / 1000 WOG
Temperature range: -25°C to +180°C
V-port options: 30°, 60°, 90°
Manual operation: lever with locking system
Automation: direct mount ISO 5211
Available sizes: 1/2" to 4"

V-Port Selection

V-port angle determines available Kv and flow control characteristics. V30 is used for fine regulation and lower flow, V60 for intermediate range, and V90 for maximum flow at full open. For DN50, Kv at 100% is 31.6 / 68.4 / 131.5 for V30 / V60 / V90 respectively.

Installation & Operation

Valve has a defined flow direction; install according to the arrow on the body. Piping must be clean, free of debris and welding residues. A strainer upstream is recommended to protect ball and seats.

FAQ

Is this an on/off valve?
Primarily designed for proportional flow control. Shutoff is possible, but selection should be based on Kv, ΔP, and V-port angle.

What is required for selection?
Specify DN, V30/V60/V90, required Kv, medium, temperature, differential pressure, connection type, and actuator.

Standard (Options)

Connection (Options)

Material (Options)

Stainless Steel

Pressure Rating (Options)

PN 63

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Const.: stainless steel CF8M (316) investment casting. Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211 with locking system.

1000 WOG -13ºF + 356ºF

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2026V

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2026V 30 04	V30 CONTROL VALVE 2026 3 PIECES 1/2"	1	0.68	1/1
2026V 30 05	V30 CONTROL VALVE 2026 3 PIECES 3/4"	1	0.792	1/1
2026V 30 06	V30 CONTROL VALVE 2026 3 PIECES 1"	1	1.02	1/1
2026V 30 07	V30 CONTROL VALVE 2026 3 PIECES 1 1/4"	1	1.888	1/1
2026V 30 08	V30 CONTROL VALVE 2026 3 PIECES 1 1/2"	1	2.477	1/1
2026V 30 09	V30 CONTROL VALVE 2026 3 PIECES 2"	1	3.562	1/1
2026V 30 10	V30 CONTROL VALVE 2026 3 PIECES 2 1/2"	1	8.814	1/1
2026V 30 11	V30 CONTROL VALVE 2026 3 PIECES 3"	1	12.637	1/1
2026V 30 12	V. 2026V	1	19.896	1/1
2026V 60 04	V60 CONTROL VALVE 2026 3 PIECES 1/2"	1	0.423	1/1
2026V 60 05	V60 CONTROL VALVE 2026 3 PIECES 3/4"	1	0.792	1/1
2026V 60 06	V60 CONTROL VALVE 2026 3 PIECES 1"	1	1.02	1/1
2026V 60 07	V60 CONTROL VALVE 2026 3 PIECES 1 1/4"	1	1.881	1/1
2026V 60 08	V60 CONTROL VALVE 2026 3 PIECES 1 1/2"	1	2.462	1/1
2026V 60 09	V60 CONTROL VALVE 2026 3 PIECES 2"	1	3.532	1/1
2026V 60 10	V60 CONTROL VALVE 2026 3 PIECES 2 1/2"	1	8.774	1/1
2026V 60 11	V60 CONTROL VALVE 2026 3 PIECES 3"	1	12.537	1/1
2026V 60 12	V60 CONTROL VALVE 2026 3 PIECES 4"	1	19.746	1/1
2026V 90 04	V90 CONTROL VALVE 2026 3 PIECES 1/2"	1	0.422	1/1
2026V 90 06	V90 CONTROL VALVE 2026 3 PIECES 1"	1	1.015	1/1
2026V 90 08	V90 CONTROL VALVE 2026 3 PIECES 1 1/2"	1	2.452	1/1
2026V 90 09	V90 CONTROL VALVE 2026 3 PIECES 2"	1	3.517	1/1
2026V 90 10	V90 CONTROL VALVE 2026 3 PIECES 2 1/2"	1	8.734	1/1
2026V 90 11	V90 CONTROL VALVE 2026 3 PIECES 3"	1	12.477	1/1
2026V 90 12	V90 CONTROL VALVE 2026 3 PIECES 4"	1	19.606	1/1
