Ball Valve V control - 2 pieces - ANSI 150 - 2526AV | Genebre

Name: Ball Valve V control - 2 pieces - ANSI 150 - 2526AV | Genebre
Brand: Genebre
SKU: Ball Valve V control - 2 pieces - ANSI 150 - 2526AV | Genebre

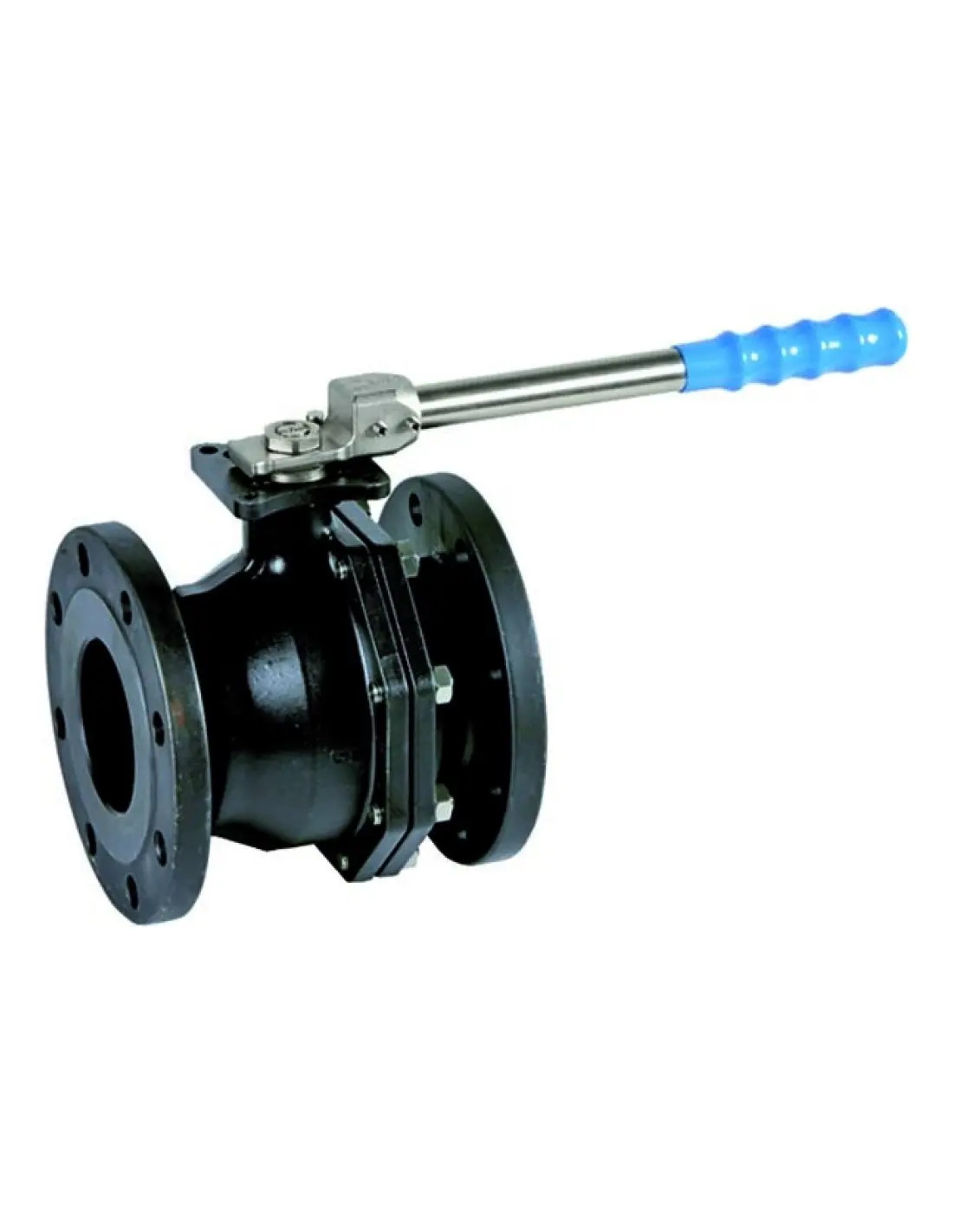

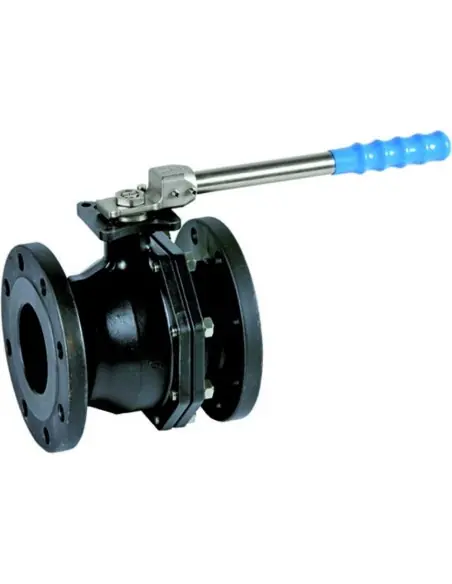

Genebre 2526AV ANSI 150 V-Port Control Ball Valve

The Genebre 2526AV is a two-piece V-port control ball valve with V-port ball and ANSI Class 150 flanged ends. Designed for flow modulation in process lines where throttling is required via opening angle, not just on/off isolation. Flow direction is fixed and must follow the arrow marked on the valve body.

Technical Data

Construction: 2-piece
Body: carbon steel WCB
Ball & stem: AISI 316
Seats: PTFE + 25% graphite
Stem O-ring: Viton / FKM
Connection: ANSI 150 flanged
Pressure: 275 psi / 19 kg/cm²
Temperature: -30°C to +220°C
Operation: lever with locking system
Automation: direct mounting ISO 5211
Design: fire-safe, antistatic device

V-Port Selection

Available V-port angles: 30°, 60°, 90°. V30 provides lower Kv and finer control at small openings. V60 is suitable for intermediate flow rates. V90 is selected for higher Kv at full open.

For DN50, Kv at 100%: 31.6 (V30), 68.4 (V60), 131.5 (V90). For DN100: 124.8 / 258.6 / 507.7 respectively.

Installation & Operation

Flanges must be clean, parallel, and aligned; avoid pipe stress on the valve body. Install a strainer upstream, especially in lines with particulates or welding residues. Do not allow fluids that solidify, crystallize, or polymerize to remain in the ball cavity.

FAQ

When to select over 2528V?
Use when the line requires ANSI 150 flanges, not DIN flanges.

What is needed for selection?
DN, V30/V60/V90, required Kv, ΔP, temperature, medium, seat material, actuator type.

Standard (Options)

ANSI

Connection (Options)

Flanged

Material (Options)

Carbon Steel

Pressure Rating (Options)

275 lbs

Seat (Options)

PTFE + 25 % Graphite

Datasheet and documents

Description

Direct mounting for actuators s/ISO 5211. Fire safe design. Antiestatic device. Body: carbon steel WCB (investment casting). Ball and stem: AISI 316. Seats: PTFE + 25 % Graphite. Stem o’ring: viton. Max. pressure: 19 kg/cm2. Temp. -30ºC +220ºC. Manually operated by handle with locking system.

275 Psi -22ºF + 356ºF

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2526AV

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2526AV 30 04	2 PIECES FULL BORE BALL VALVE WITH ANSI FLANGES WCB	1	1.535	1/1
2526AV 30 06	V30 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 1"	1	2.716	1/1
2526AV 30 11	2 PIECES FULL BORE BALL VALVE WITH ANSI FLANGES WCB	1	19.2	1/1
2526AV 30 12	V30 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 4"	1	31.364	1/1
2526AV 60 06	V60 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 1"	1	2.716	1/1
2526AV 60 08	V60 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 1 1/2"	1	5.53	1/1
2526AV 60 09	V60 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 2"	1	8.184	1/1
2526AV 60 11	V60 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 3"	1	18.923	1/1
2526AV 60 12	2 PIECES FULL BORE BALL VALVE WITH ANSI FLANGES WCB	1	31	1/1
2526AV 90 06	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 1"	1	2.711	1/1
2526AV 90 08	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 1 1/2"	1	5.52	1/1
2526AV 90 09	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 2"	1	8.17	1/1
2526AV 90 10	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 2 1/2"	1	15.21	1/1
2526AV 90 11	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 3"	1	18.87	1/1
2526AV 90 12	V90 CONTROL VALVE 2526A 2 PIECES ANSI FLANGES 4"	1	31.064	1/1
