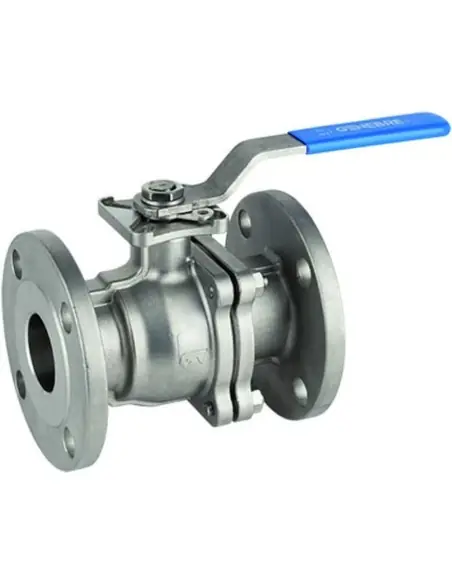

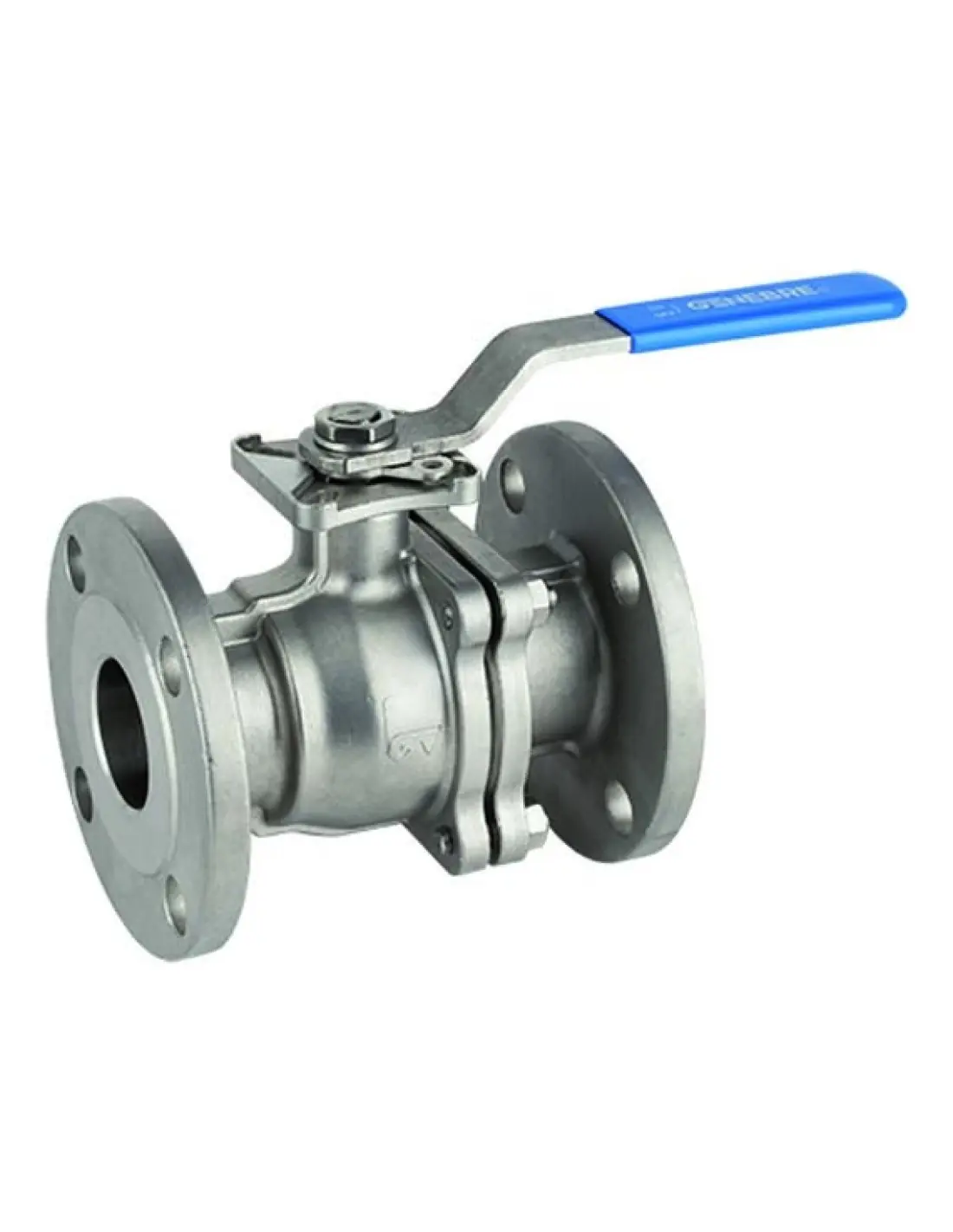

Genebre 2528AV ANSI 150 V-Port Control Ball Valve

The Genebre 2528AV is a two-piece V-port control ball valve with flanged ANSI Class 150 ends and a CF8M / 316 stainless steel body. Designed for proportional flow control in industrial process lines, it is not intended for simple on/off isolation.

Technical Data

Construction: 2-piece
Connection: ANSI Class 150 flanged
Body: stainless steel CF8M / 316
Seats: PTFE + 15% glass fibre
Max pressure: 275 psi / 19 kg/cm²
Operating temperature: -30°C to +180°C
Operation: lever
V-port: 30°, 60°, or 90°
Available sizes: 1/2" to 4", depending on V-port angle.

V-Port Selection

The V-port angle determines available Kv and flow response at partial openings. V30 is used for finer control at low openings and lower flow rates. V60 covers intermediate ranges. V90 provides higher Kv at full open.

For example, at DN50, Kv at 100% open is 31.6 / 68.4 / 131.5 for V30 / V60 / V90. At DN100, values are 124.8 / 258.6 / 507.7 respectively.

Difference from 2526AV

2528AV uses CF8M/316 stainless steel, while 2526AV is carbon steel WCB. 2528AV is selected where process media or environment require stainless steel construction.

Installation & Operation

Valve has defined flow direction and must be installed per the arrow on the body. Flanges should be clean, parallel, and free from misalignment stresses. A strainer is recommended upstream, especially in lines with particulates or welding debris.

FAQ

What is required for selection?
DN, V30/V60/V90, required Kv, differential pressure, media, temperature, ANSI class, and actuator or handle type.

When is it not suitable?
Not recommended for media that solidifies, crystallizes, or polymerizes and remains in the ball cavity without a flushing procedure.

Standard (Options)

ANSI

Connection (Options)

Flanged

Material (Options)

Stainless Steel

Pressure Rating (Options)

275 lbs

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Body: stainless steel CF8M (316). Seats: PTFE + 15% GF. Max. pressure: 19 kg/cm2. Temp.: -30ºC +180ºC. Manually operated by handle.

275 Psi -22ºF + 356ºF

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2528AV

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2528AV 30 04	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1/2"	1	1.517	1/1
2528AV 30 05	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 3/4"	1	1.943	1/1
2528AV 30 06	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1"	1	2.69	1/1
2528AV 30 07	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1 1/4"	1	4.08	1/1
2528AV 30 08	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1 1/2"	1	5.49	1/1
2528AV 30 09	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2"	1	8.106	1/3
2528AV 30 10	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2 1/2"	1	15.205	1/2
2528AV 30 11	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 3"	1	19.02	1/1
2528AV 30 12	V30 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 4"	1	31.364	1/1
2528AV 60 05	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 3/4"	1	1.943	1/1
2528AV 60 06	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1"	1	2.69	1/1
2528AV 60 07	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1 1/4"	1	4.075	1/1
2528AV 60 08	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1 1/2"	1	5.474	1/1
2528AV 60 09	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2"	1	8.076	1/3
2528AV 60 10	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2 1/2"	1	15.165	1/1
2528AV 60 11	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 3"	1	19.918	1/1
2528AV 60 12	V60 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 4"	1	31.204	1/1
2528AV 90 06	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1"	1	2.684	1/8
2528AV 90 08	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 1 1/2"	1	5.464	1/1
2528AV 90 09	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2"	1	8.06	1/3
2528AV 90 10	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 2 1/2"	1	15.125	1/1
2528AV 90 11	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 3"	1	18.858	1/1
2528AV 90 12	V90 CONTROL VALVE 2528A 2 PIECES ANSI FLANGES 4"	1	24	1/1
