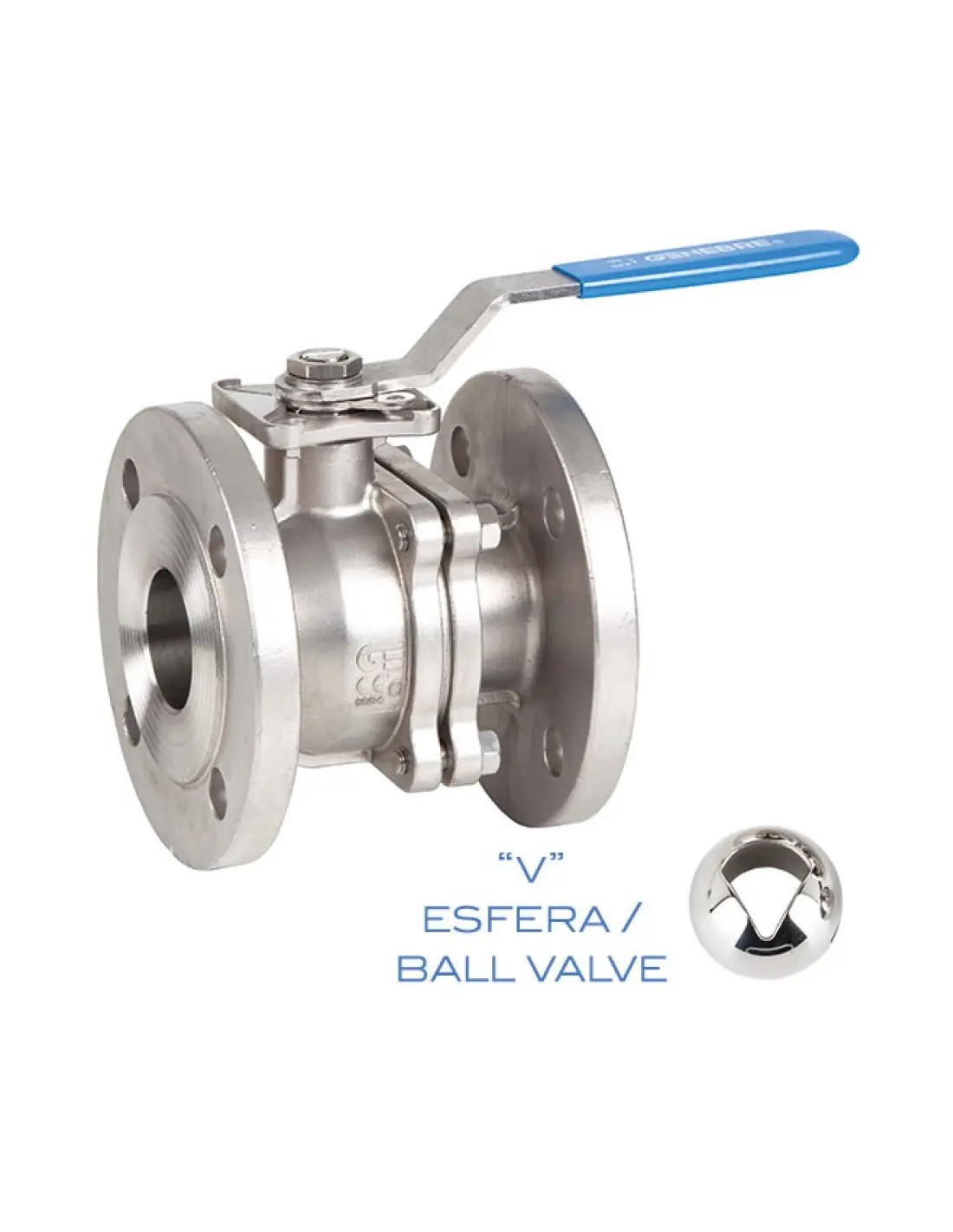

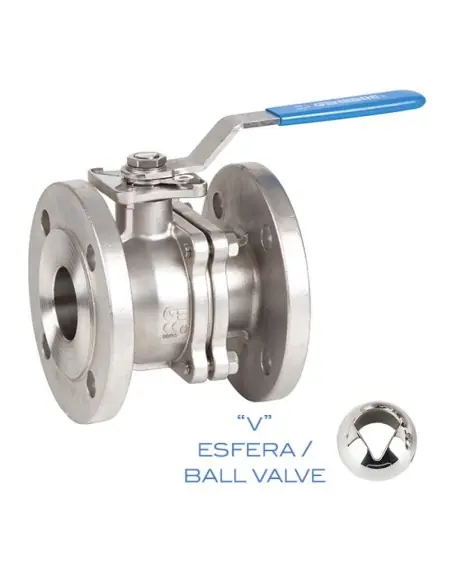

Genebre 2528V Analog V-Port Flanged Ball Valve

The Genebre 2528V is a two-piece V-port control ball valve with V-port ball, DIN flanged ends, and a body made from stainless CF8M / 316. Designed for modulating flow control in process lines, it is specified where throttling and proportional regulation are required, not just on/off isolation.

Technical Data

Construction: 2-piece
Connection: DIN flanged
Body material: stainless steel CF8M / 316 investment casting
Seats: PTFE + 15% glass fibre
Stem O-ring: Viton / FKM
Antistatic device
Pressure: 40 / 16 bar, depending on size
Temperature: -30°C to +180°C
Operation: lever, with direct-mount automation capability
V-port options: 30°, 60°, 90°
Face-to-face: DIN 3202 F4 for DN15–DN100

V-Port Selection

V-port angle determines available Kv and flow response at partial opening. V30 is used for low flow rates and finer control at small openings. V60 covers intermediate range. V90 provides higher Kv at full open. For DN50, typical Kv at 100% open: 31.6 / 68.4 / 131.5 for V30 / V60 / V90.

Installation & Operation

Valve has defined flow direction and must be installed per body arrow. Flanges should be aligned to avoid stress; use cross-tightening and suitable gaskets. Horizontal installation with stem upright and upstream filtration is recommended.

Media that solidify, crystallize, or polymerize should not remain in the ball cavity, as this affects seat integrity and operational life.

FAQ

When is 2528V selected over threaded V-control valves?
For DIN flanged lines requiring proportional flow control.

What is needed for selection?
DN, V30/V60/V90, required Kv, differential pressure, temperature, medium, PN, and actuator or handle type.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

Stainless Steel

Pressure Rating (Options)

PN 16
PN 40

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Body: Stainless steel. CF8M (316) investment casting.

Seats: PTFE + 15% GF stem o’ring: viton. Antiestatic device.

Max. pressure: 40/16 BAR depending on size.

Temp.: -30ºC +180ºC. manually operated by handle.

L: DIN 3202 F-4 DN 15 DN 100 F-5 DN 125 DN 200.

Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2528V

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2528V 30 04	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1/2"	1	2.192	1/1
2528V 30 05	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3/4"	1	3.025	1/10
2528V 30 06	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1"	1	3.85	1/1
2528V 30 07	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/4"	1	5.877	1/5
2528V 30 08	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/2"	1	6.95	1/4
2528V 30 09	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2"	1	9.571	1/3
2528V 30 10	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2 1/2"	1	15.28	1/1
2528V 30 11	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3"	1	19.471	1/1
2528V 30 12	V30 CONTROL VALVE 2528 2 PIECES DIN FLANGES 4"	1	27.419	1/1
2528V 60 04	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1/2"	1	2.193	1/1
2528V 60 05	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3/4"	1	3.025	1/10
2528V 60 06	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1"	1	3.85	1/1
2528V 60 07	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/4"	1	5.871	1/5
2528V 60 08	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/2"	1	6.935	1/1
2528V 60 09	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2"	1	9.541	1/1
2528V 60 10	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2 1/2"	1	15.24	1/2
2528V 60 11	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3"	1	19.371	1/1
2528V 60 12	V60 CONTROL VALVE 2528 2 PIECES DIN FLANGES 4"	1	27.259	1/1
2528V 90 04	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1/2"	1	2.192	1/1
2528V 90 05	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3/4"	1	3.024	1/10
2528V 90 06	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1"	1	3.845	1/8
2528V 90 07	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/4"	1	5.868	1/5
2528V 90 08	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 1 1/2"	1	6.925	1/4
2528V 90 09	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2"	1	9.526	1/3
2528V 90 10	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 2 1/2"	1	15.2	1/2
2528V 90 11	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 3"	1	19.31	1/1
2528V 90 12	V90 CONTROL VALVE 2528 2 PIECES DIN FLANGES 4"	1	25	1/1
