Unmatched Performance with Split-Body Valves Stainless Steel - V-Pack Series 760V | Valpres

Discover the precision and durability of the Split-Body Valves Stainless Steel - V-Pack Series 760V | Valpres. This advanced valve is engineered for exceptional reliability and smooth operation in even the toughest industrial environments. Crafted from robust stainless steel, it provides excellent resistance against corrosion and wear, making it the ideal solution for demanding applications across chemical, petrochemical, and water treatment sectors.

Features & Benefits of Split-Body Valves Stainless Steel - V-Pack Series 760V | Valpres

  • Stainless Steel Build: Manufactured with high-grade stainless steel, this valve ensures longevity and optimal protection against rust, chemical attacks, and extreme temperatures.
  • Innovative Split-Body Design: The split-body structure allows for easy maintenance and quick installation, reducing downtime and keeping operations running efficiently.
  • V-Pack Sealing System: Equipped with the advanced V-Pack sealing, it offers superior leak-tight performance, minimizing any risk of fluid or gas escape and promoting workplace safety.
  • Versatile Compatibility: Suitable for a wide range of fluids and gases, this valve adapts seamlessly to various industrial processes, from aggressive chemicals to neutral liquids.
  • Precision Control: The Series 760V delivers smooth flow regulation, ensuring accurate control and dependable shut-off, essential for process stability.
  • Robust Engineering: Designed for high-pressure and high-temperature use, it maintains its performance over the long term and under harsh conditions.

Upgrade your facility with the Split-Body Valves Stainless Steel - V-Pack Series 760V | Valpres and benefit from its reliable operation and user-friendly maintenance. The straightforward construction means less time spent on servicing and more time focused on productivity. Ideal for professionals who demand reliability and ease of use, this valve transforms routine industrial tasks into effortless operations.

Whether you’re managing vast pipelines or precise processing systems, this valve delivers peace of mind thanks to its proven strength and flexibility. Choose innovation and quality; choose the Split-Body Valves Stainless Steel - V-Pack Series 760V | Valpres for your industrial needs.


Type : 760V00
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 16
  • PN 40

Description

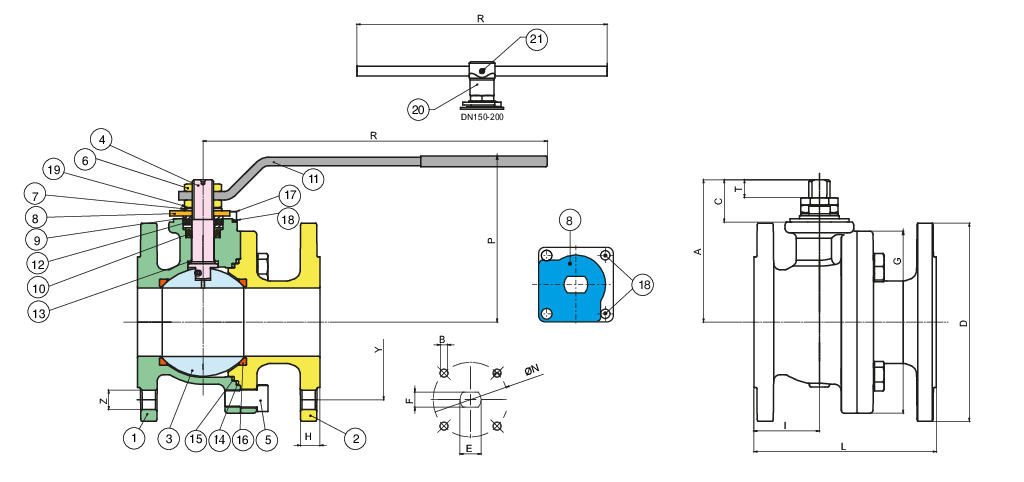

Valpres - Split-Body Valves - V-Pack PN16 - 760V00

Temperature range: -40°C +180°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA351-CF8M/A479-TP3161
4STEMA479-TP316/17-4-PH1
5SCREWA2-70*4-8-12
6NUTA2-70**2-1
7SPRING WASHERAISI 3044
890° STOPAISI 3161
9PACKING GLANDA479-TP3162
10V-PACKPTFE1
11HANDLEAISI 3161
12STEM SEALGRAPHOIL1
13THRUST WASHERPTFE1
14BODY SEATGRAPHOIL1
15BODY SEATPTFE1
16BALL SEATTFM-MPTFE2
17SCREWA2-702
18WASHERAISI 3042
19UNSCREWING GROWERAISI 3161
20BODY HANDLE DN150-200EN-GJL 2501
21SCREW8.8 CS2

*DN15-DN65=4 - DN80-125=8 - DN150-200=12

**DN15-DN125=2 - DN150-200=1

SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15760V000495654xØ141649115718813152198M10x1,25742-F04M519,2402,50
3/4"20760V0005105754xØ14185112073,59313156198M10x1,25742-F04M535403,20
1"25760V0006115854xØ14185412590,58917472,527,513M12x1,5850-F05M664,5404,50
1"1/432760V00071401004xØ18185513097931747627,513M12x1,5850-F05M6103,8405,80
1"1/240760V00081501104xØ181851,51401141332501073010M16x1,51050-F05M6174408,10
2"50760V00101651254xØ182057,5150136,514432112238,518M20x1,51470-F07M8301,34011,40
2"1/265760V00121851454xØ181861170167,615432113339,518M20x1,51470-F07M8545,71615,40
3"80760V00142001608xØ182075,5180178,61733811514318M24x218102-F10M10872,51620,50
4"100760V00182201808xØ182080190208,61873811654318M24x218102-F10M101363,31626,80
5"125760V00192502108xØ18221493252732093811874318M24x218102-F10M102360,31650,20
6"150760V00202852408xØ22221573503113057002456841M42x330125-F12M123671,11675,70
8"200760V002134029512xØ22241904004023487002886841M42x330125-F12M126816,616104,00

Valpres - Split-Body Valves - V-Pack PN40 - 760V40

Temperature range: -40°C +180°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA351-CF8M/A479-TP3161
4STEMA479-TP316/17-4-PH1
5SCREWA2-70*4-8-12
6NUTA2-70**2-1
7SPRING WASHERAISI 3044
890° STOPAISI 3161
9PACKING GLANDA479-TP3162
10V-PACKPTFE1
11HANDLEAISI 3161
12STEM SEALGRAPHOIL1
13THRUST WASHERPTFE1
14BODY SEATGRAPHOIL1
15BODY SEATPTFE1
16BALL SEATTFM-MPTFE2
17SCREWA2-702
18WASHERAISI 3042
19Unscrewing growerAISI 3161
20BODY HANDLE DN150-200EN-GJL 2501
21UNSCREWING GROWER8.8 CS2

*DN65=4 - DN80-100=8 - DN150-200=12

**DN65-125=2 - DN150-200=1

SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15760V400495654xØ141649115718813152198M10742-F04M516,3402,50
3/4"20760V4005105754xØ14185112073,59313156198M10742-F04M529,5403,20
1"25760V4006115854xØ14185412590,58917472,527,513M12850-F05M643404,50
1"1/432760V40071401004xØ18185513097931747627,513M12850-F05M689405,80
1"1/240760V40081501104xØ181851,51401141332501073010M161050-F05M6230408,10
2"50760V40101651254xØ182057,5150136,514432112238,518M201470-F07M82654011,40
2"1/265760V40121851454xØ182261170167,615432113339,518M201470-F07M85404015,40
3"80760V40142001608xØ182475,5180178,61733811514318M2418102-F10M108734021,60
4"100760V40182351908xØ2224801902191873811654318M2418102-F12M1013904031,20
6"150760V40203002508xØ25281633503063057002456835M4230125-F12M1236714082,70
8"*200760V402137532012xØ29342014004103487002906841M4230125-F12M12681640143,00

*TRUNNION ∆p=25 bar

**Art. 760V00

***Art. 760V01

Certifications

 TUV SIL 3 TUV SIL 3

 FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607

 F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1
