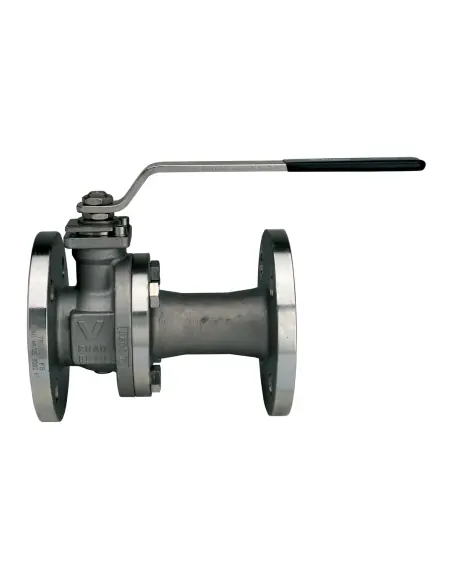

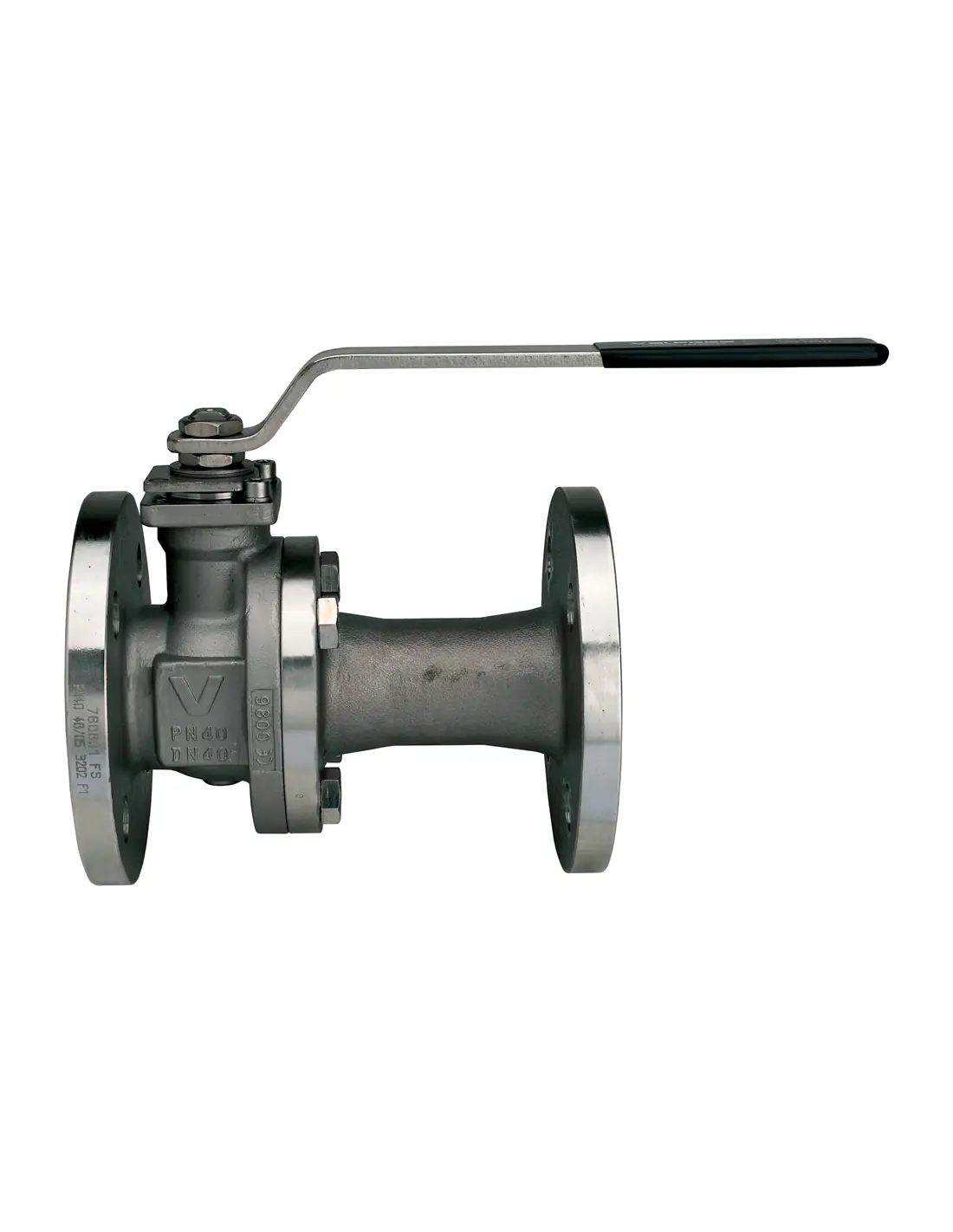

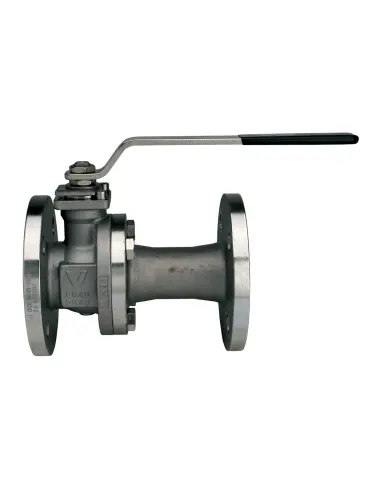

Split-Body Valves - Split-Body PN16 - F1 Series 7608 | Valpres

Advanced Performance and Reliability: Features & Benefits of Split-Body Valves - Split-Body PN16 - F1 Series 7608 | Valpres

Discover a new standard in industrial fluid control with the Split-Body Valves - Split-Body PN16 - F1 Series 7608 | Valpres. This valve stands out for its reliable design and advanced engineering, making it the go-to solution for demanding applications. Its split-body construction ensures easy maintenance and robust sealing, offering efficient operation even in challenging environments.

The F1 Series 7608 is built to deliver consistent results. Its precision engineering and high-grade materials guarantee durability and long-lasting performance. Whether you’re managing water, gas, or other industrial fluids, this valve minimizes downtime and keeps your system running smoothly.

Main Features & Benefits

  • Split-Body Construction: The two-piece body allows for quick access and straightforward maintenance, saving time and effort.
  • Pressure Rating PN16: Designed to handle pressures up to 16 bar, ensuring safe and effective performance under stress.
  • Reliable Sealing: Engineered to provide robust sealing, reducing the risk of leaks and protecting your system’s integrity.
  • Versatile Connections: Compatible with a wide range of industrial piping, making installation simple and flexible.
  • Corrosion Resistance: High-quality materials protect against rust and wear, extending the valve’s lifespan even in aggressive environments.
  • Easy Operation: The user-friendly design makes it simple to operate, even for those new to industrial equipment.

The Split-Body Valves - Split-Body PN16 - F1 Series 7608 | Valpres is ideal for those seeking reliability, straightforward maintenance, and safety in daily operation. Its advanced features deliver peace of mind and help prevent unexpected interruptions, making it an excellent choice for industrial facilities of all sizes.

Upgrade your system with a valve engineered for stability and ease—choose the Valpres F1 Series 7608 for unyielding performance and protection every step of the way.


Type : 760801
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4408
  • ASTM A351 CF8M
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 16
  • PN 40

Description

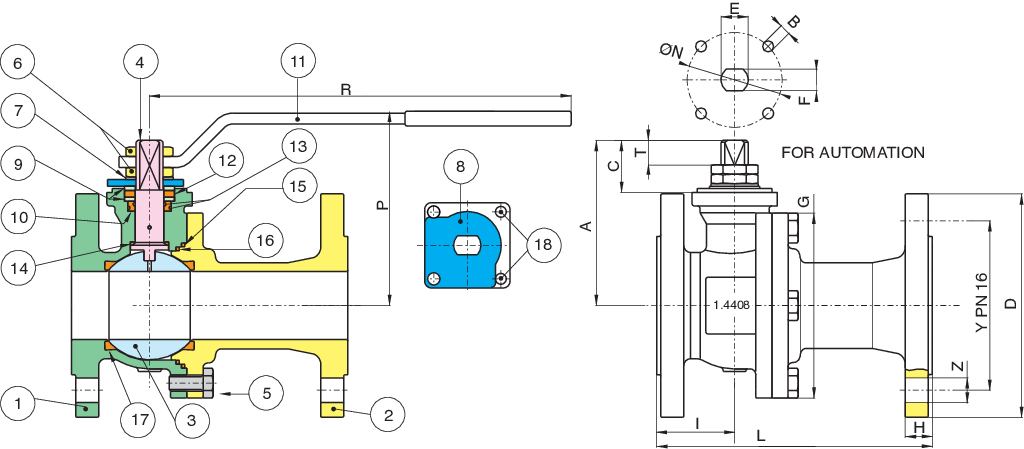

Valpres - Split-Body Valves - Split-Body PN16-F1 - 760801

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODY1.4408/A351-CF8M1
2END CONNECTION1.4408/A351-CF8M1
3BALLA479-TP316/A351-CF8M1
4STEMA479-TP316/17-4-PH1
5SCREWSTAINLESS STEEL4-8
6NUTSTAINLESS STEEL2
7SPRING WASHERSTAINLESS STEEL2
890° STOPA182-F3161
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLEA182-F3161
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE2
18SCREWSTAINLESS STEEL2
SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"157608010495654xØ141649130718813152198M10742-F04M519,2403,00
3/4"2076080105105754xØ141851,515073,59313156198M10742-F04M535403,50
1"2576080106115854xØ14185316090,58917472,527,513M12850-F05M664,5404,00
1"1/432760801071401004xØ181855180971121747627,513M12850-F05M6103,8406,10
1"1/240760801081501104xØ181851,52001141332501073010M161050-F05M61744010,00
2"50760801101651254xØ182057,5230136,514432112238,518M201470-F07M8301,34012,50
2"1/265760801121851454xØ181861290167,615432113339,518M201470-F07M8545,71615,00
3"80760801142001608xØ182075,5310178,61733811514318M2418102-F10M10872,51623,00
4"100760801182201808xØ182080350208,61873811654318M2418102-F10M101363,31631,00

Valpres - Split-Body Valves - Split-Body PN16-F1 - 760802

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4STEMA479-TP304/17-4-PH1
5SCREWCARBON STEEL4-8
6NUTCARBON STEEL2
7SPRING WASHERCARBON STEEL2
890° STOPCARBON STEEL1
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLECARBON STEEL1
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE2
18SCREWCARBON STEEL2
SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"157608020495654XØ141649130718813152198M10742-F04M519,2403,00
3/4"2076080205105754XØ141851,515073,59313156198M10742-F04M535403,50
1"2576080206115854XØ14185316090,58917472,527,513M12850-F05M664,5404,00
1"1/432760802071401004XØ181855180971121747627,513M12850-F05M6103,8406,10
1"1/240760802081501104XØ181851,52001141332501073010M161050-F05M61744010,00
2"50760802101651254XØ182057,5230136,514432112238,518M201470-F07M8301,34012,50
2"1/265760802121851454XØ181861290167,615432113339,518M201470-F07M8545,71615,00
3"80760802142001608XØ182075,5310178,61733811514318M2418102-F10M10872,51623,00
4"100760802182201808XØ182080350208,61873811654318M2418102-F10M101363,31631,00

Certifications

TUV SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607

F.E. TESTED ISO15848-1
