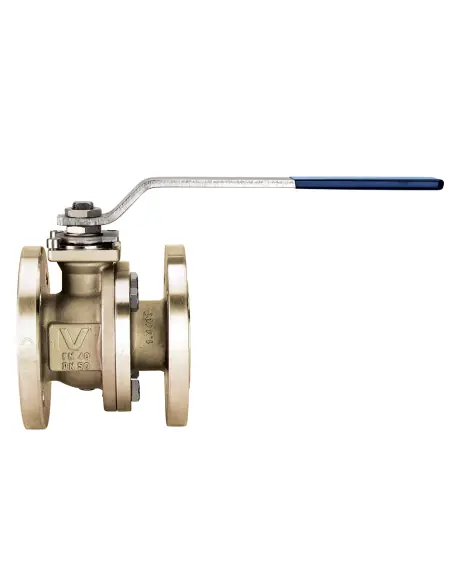

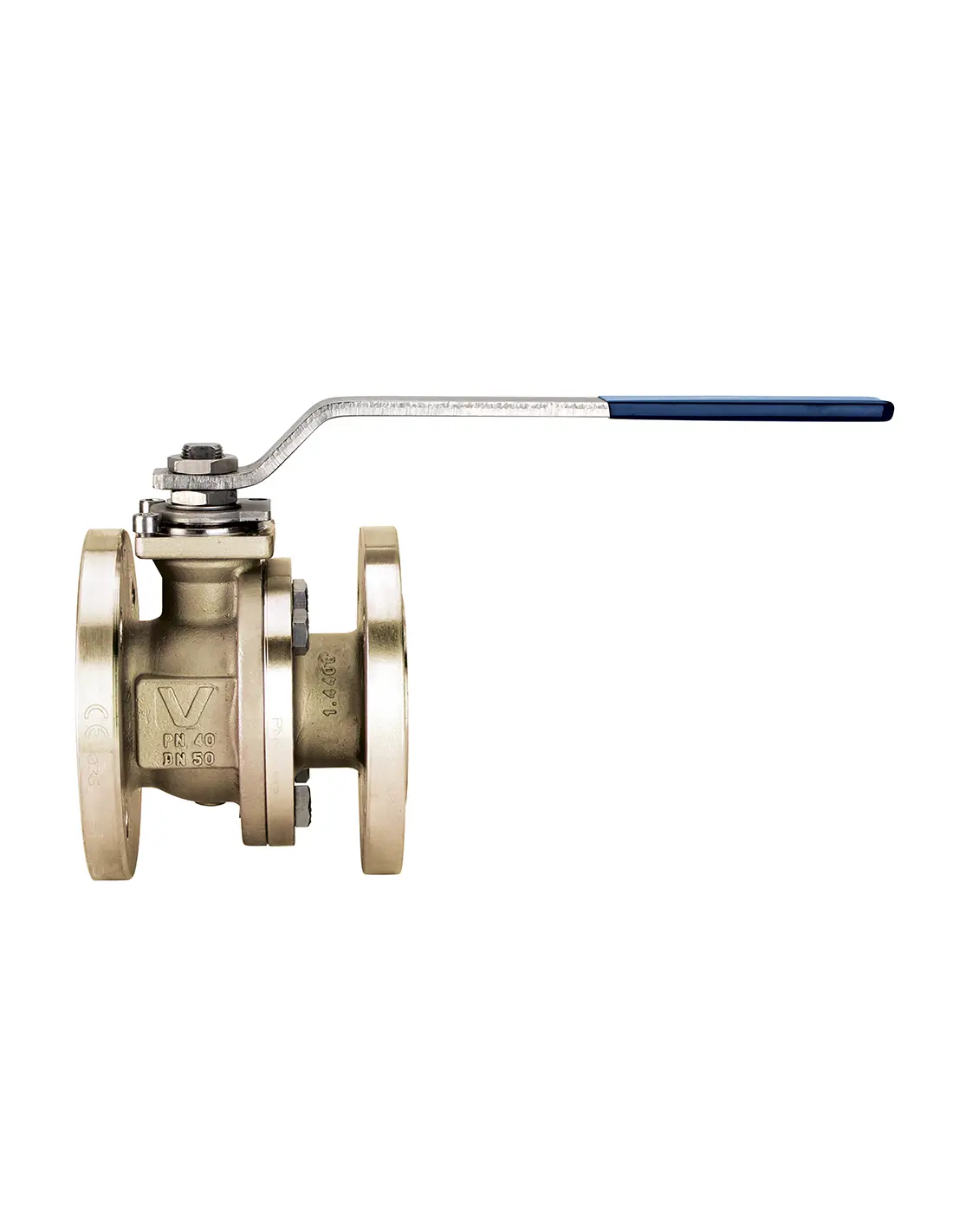

Split-Body Valves Carbon Steel - 760V Series | Valpres: Engineered Strength for Industrial Control

The Split-Body Valves Carbon Steel - 760V Series | Valpres are an outstanding choice for businesses seeking robust and reliable flow control. Designed for heavy-duty industrial applications, these valves offer a smart solution for managing liquid and gas lines with confidence and efficiency. Whether you’re in manufacturing, energy production, or processing, these valves deliver long-lasting service and trustworthy performance.

Features & Benefits of the Split-Body Valves Carbon Steel - 760V Series | Valpres

  • Durable Carbon Steel Construction: Built from high-grade carbon steel, these valves stand up to high pressure, heat, and wear. Their tough design resists corrosion, which means fewer replacements and less maintenance.
  • Split-Body Design for Easy Maintenance: The split-body structure allows for quick access to internal parts. This makes routine inspection, cleaning, and part replacement faster, reducing downtime and saving on labor costs.
  • Leak-Proof Operation: With precision-engineered seals, you can expect reliable closure, minimizing the risk of leaks and product loss. Safety in your pipeline is assured even in challenging industrial environments.
  • Wide Range of Applications: Suitable for a variety of fluids and gases, the 760V Series can be adapted to many processes. Their flexibility makes them a smart investment for multiple tasks.
  • High Flow Efficiency: The internal mechanics ensure smooth operation and consistent flow rates. This helps maintain steady production processes and optimal equipment performance.
  • Proven Valpres Quality: Manufactured by Valpres, a trusted name in industrial valve solutions, you benefit from proven engineering standards and a reputation for reliability.

Upgrade your industrial control system with the Split-Body Valves Carbon Steel - 760V Series | Valpres. Experience extended valve life, fewer interruptions, and dependable results. Perfect for demanding industrial workplaces, these valves combine strength, safety, and ease of use, making them the right choice for professionals who value quality and efficiency.


Type : 760V01
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 16
  • PN 40

Description

Valpres - Split-Body Valves - V-Pack PN16 - 760V01

Temperature range: -40°C +180°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA351-CF8M/A479-Tp3041
4STEMA479-TP304/17-4-PH1
5SCREW8.8 ENP CS*4-8-12
6NUT6S ENP CS**1-2
7SPRING WASHER50CRV42
890° STOPA37 ENP CS1
9PACKING GLANDA479-TP3162
10STEM SEATPTFE1
11HANDLEA37 ENP CS1
12STEM SEALGRAPHOIL1
13THRUST WASHERPTFE1
14BODY SEATGRAPHOIL1
15BODY SEATPTFE1
16BALL SEATTFM-MPTFE2
17SCREWA2-702
18WASHERAISI 3042
19UNSCREWING GROWERAISI 3161
20BODY HANDLE DN150-200EN-GJL 2501
21SCREW8.8 CS1

*DN15-DN65=4 - DN80-125=8 - DN150-200=12

**DN15-DN125=2 - DN150-200=1

SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15760V010495654xØ141649115718813152198M10x1,25742-F04M519,2402,50
3/4"20760V0105105754xØ14185112073,59313156198M10x1,25742-F04M535403,20
1"25760V0106115854xØ14185412590,58917472,527,513M12x1,5850-F05M664,5404,50
1"1/432760V01071401004xØ18185513097931747627,513M12x1,5850-F05M6103,8405,80
1"1/240760V01081501104xØ181851,51401141332501073010M16x1,51050-F05M6174408,10
2"50760V01101651254xØ182057,5150136,514432112238,518M20x1,51470-F07M8301,34011,40
2"1/265760V01121851454xØ181861170167,615432113339,518M20x1,51470-F07M8545,71615,40
3"80760V01142001608xØ182075,5180178,61733811514318M24x218102-F10M10872,51620,50
4"100760V01182201808xØ182080190208,61873811654318M24x218102-F10M101363,31626,80
5"125760V01192502108xØ18221493252732093811874318M24x218102-F10M102360,31650,20
6"150760V01202852408xØ22221573503113057002456841M42x330125-F12M123671,11675,70
8"200760V012134029512xØ22241904004023487002886841M42x330125-F12M126816,616104,00

Valpres - Split-Body Valves - V-Pack PN16 - 760V01

Temperature range: -40°C +180°C.

Vacuum: 10-2 torr.

1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA351-CF8M/A479-Tp3041
4STEMA479-TP304/17-4-PH1
5SCREW8.8 ENP CS*4-8-12
6NUT6S ENP CS**2-1
7SPRING WASHER50CRV44
890° STOPA37 ENP CS1
9PACKING GLANDA479-TP3162
10STEM SEATPTFE1
11HANDLEA37 ENP CS1
12STEM SEALGRAPHOIL1
13THRUST WASHERPTFE1
14BODY SEATGRAPHOIL1
15BODY SEATPTFE1
16BALL SEATTFM-MPTFE2
17SCREWA2-702
18WASHERAISI 3042
19UNSCREWING GROWERAISI 3161
20BODY HANDLE DN150-200EN-GJL 2501
21UNSCREWING GROWER8.8 CS2
SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15760V410495654xØ141649115718813152198M10742-F04M516,3402,50
3/4"20760V4105105754xØ14185112073,59313156198M10742-F04M529,5403,20
1"25760V4106115854xØ14185412590,58917472,527,513M12850-F05M643404,50
1"1/432760V41071401004xØ18185513097931747627,513M12850-F05M689405,80
1"1/240760V41081501104xØ181851,51401141332501073010M161050-F05M6230408,10
2"50760V41101651254xØ182057,5150136,514432112238,518M201470-F05M82654011,40
2"1/265760V41121851454xØ182261170167,615432113339,518M201470-F07M85404015,40
3"80760V41142001608xØ182475,5180178,61733811514318M2418102-F10M108734021,60
4"100760V41182351908xØ2224801902191873811654318M2418102-F10M1013904031,20
6"150760V41203002508xØ25281633503063057002456835M4230125-F12M1236714082,70
8"200760V412137532012xØ29342014004103487002906841M4230125-F12M12681640143,00

*TRUNNION ∆p=25 bar

**Art. 760V00. - ***Art. 760V01.

Certifications 760V01

ADR BS 14432 ADR BS 14432

TUV TUV

SIL 3 SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607

ATEX FIRE-SAFE ATEX FIRE-SAFE

F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1

Certifications 760V41

TUV SIL 3 TUV SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607

F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1
