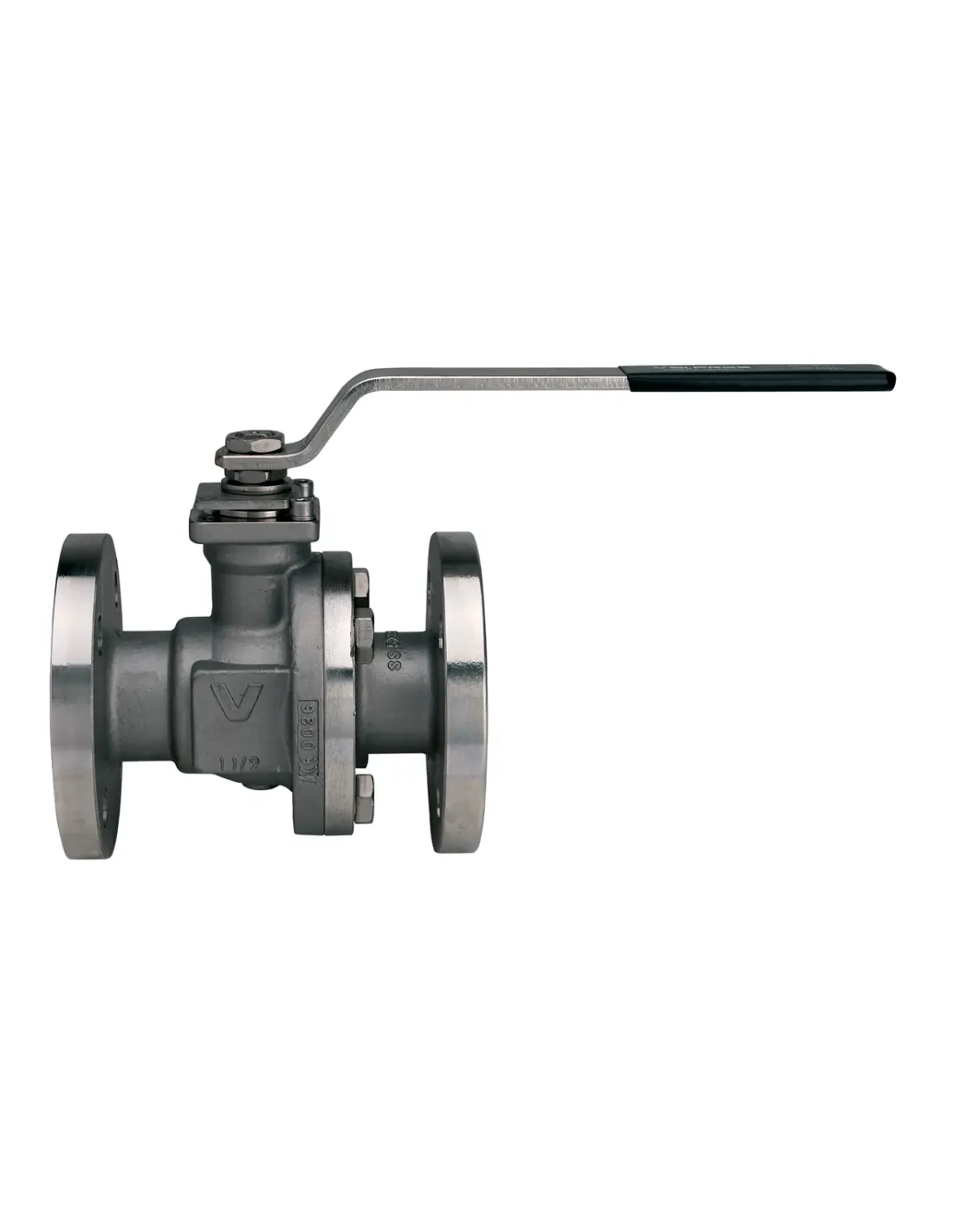

Split-Body Valves - Split-Body ANSI300 - 761030 | Valpres

Unlock Efficiency and Reliability with Split-Body Valves - Split-Body ANSI300 - 761030 | Valpres

Upgrade your industrial systems with the Split-Body Valves - Split-Body ANSI300 - 761030 | Valpres, engineered for outstanding performance and durability. Designed to ensure seamless fluid control, these valves offer maximum reliability and are perfect for demanding applications. Whether handling gas, water, or corrosive media, this product delivers consistent results and peace of mind.

Features & Benefits of Split-Body Valves - Split-Body ANSI300 - 761030 | Valpres

  • Superior Construction: Manufactured with high-grade materials, these valves withstand intense pressure and temperature, reducing wear and tear over time.
  • Easy Maintenance: The split-body design allows for quick inspection, cleaning, and component replacement without removing the whole valve from the pipeline.
  • Leak-Proof Performance: Precision engineering ensures a tight seal, minimizing leaks and helping maintain workplace safety and product integrity.
  • Versatile Use: Compatible with a wide range of industrial settings, including chemical plants, water treatment facilities, and energy sectors. Fits seamlessly into both new systems and upgrades.
  • High Pressure Handling: Rated for ANSI300 class, this valve can comfortably manage high pressures, ensuring system stability even under challenging conditions.
  • Corrosion Resistance: Built to resist the damaging effects of chemicals and harsh environments, ensuring a long operational life and reducing replacement costs.
  • Precise Flow Control: Enjoy smooth and accurate regulation of liquids and gases for optimal process efficiency.
  • Simple Operation: User-friendly design enables quick manual or automated operation, making it ideal for both novice operators and seasoned professionals.

Experience hassle-free installation and outstanding support with the Split-Body Valves - Split-Body ANSI300 - 761030 | Valpres. It’s the perfect solution for achieving safe, efficient, and reliable valve operation in any industrial pipeline. Enhance your system’s performance and enjoy the lasting benefits of premium technology, designed for both simplicity and efficiency.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 25
  • PN 50

Datasheet and documents

Description

v-ball option
v-pack option
low-temp-40-eng-ONDEMAND

Technical specifications

761030

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4STEMA479-TP316/17-4-PH1
5SCREWSTAINLESS STEEL4-8-12
6NUTSTAINLESS STEEL1-2
7SPRING WASHERSTAINLESS STEEL2
890° STOPA182-F3161
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLEA182-F3161
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE+FIBERGLASS2
18SCREWSTAINLESS STEEL2
19SCREWSTAINLESS STEEL2
20BODY HANDLE DN150EN-GJL 2501
21UNSCREWING GROWERA182-F3161
SIZEDNCODEDYZHILGRPACTEFØNBKvPNKg
1/2"15761030049566,54xØ1614,561,5140851318852198M10742-F04M519,2502,30
3/4"207610300511582,54xØ191661152781319356198M10742-F04M535503,50
1"2576103006125894xØ2017,570,51659617410972,527,513M12850-F05M664,5505,20
1"1/24076103008155114,54xØ222178,51901262501331073010M161050-F05M61745010,00
2"50761030101651278xØ2022,586216136,532114412238,518M201470-F07M8301,35012,00
3"8076103014210168,58xØ222981283178,53811731514318M2418102-F10M10872,55027,00
4"100761030182552008xØ223288,53052193811871654318M2418102-F10M101363,35041,00
6"1507610302032027012xØ23371724033067003052456841M4230125-F12M123671,15093,00
8"*2007610302138133012xØ2641,525150241070034828868,541M4230125-F12M126816,625151,00

*TRUNNION ∆p=25 bar

Certifications

 F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1
