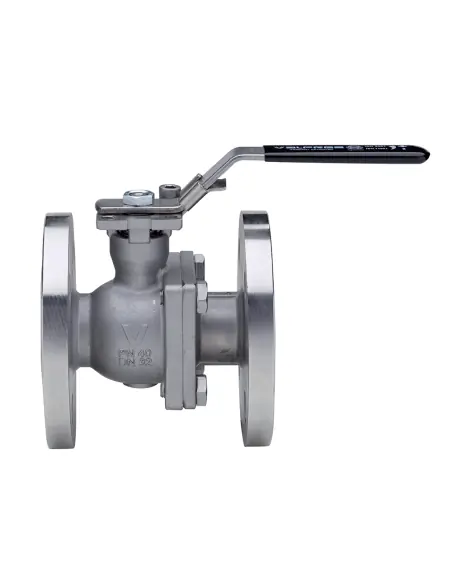

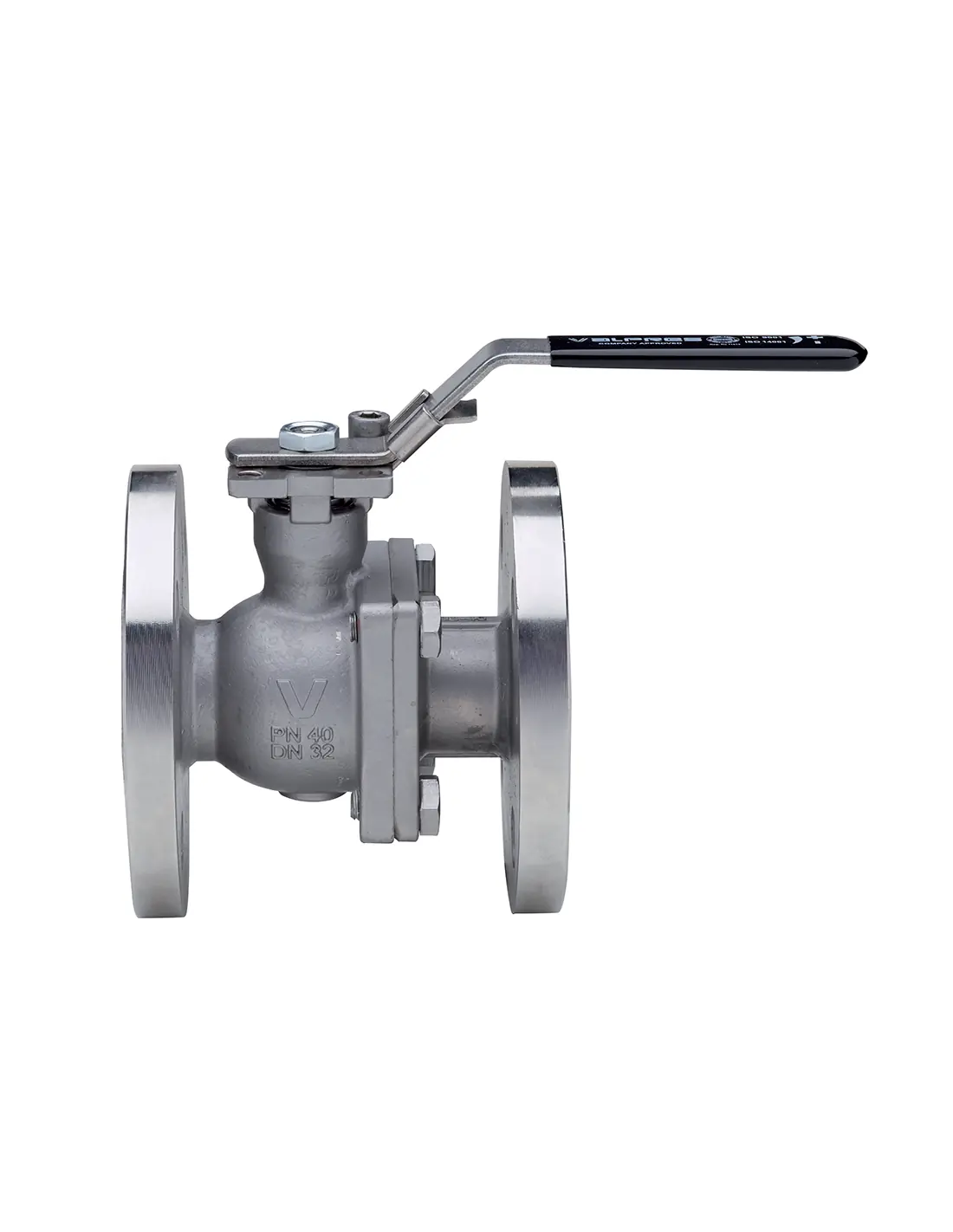

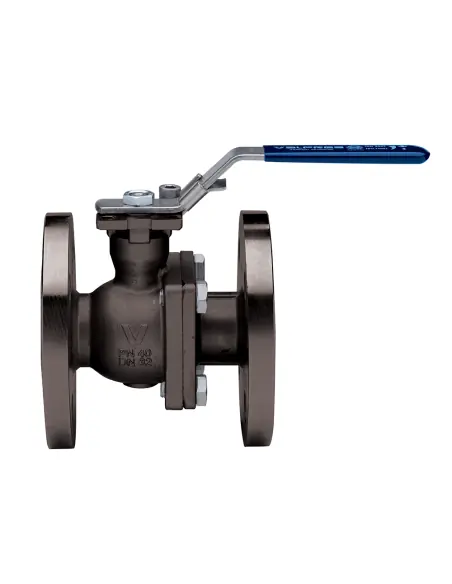

Split-Body Valves - Split-Body PN16 - 7650 Series | Valpres

Reliable Performance with Split-Body Valves - Split-Body PN16 - 7650 Series | Valpres

Experience peace of mind in your industrial operations with the Split-Body Valves - Split-Body PN16 - 7650 Series | Valpres. Engineered for efficiency and endurance, these valves are the trusted choice for demanding applications that require both safety and precision. If you are looking to improve flow control with minimal maintenance, this series offers all the advanced features you need—effortlessly packaged in a robust, easy-to-use design.

Features and Benefits of Split-Body Valves - Split-Body PN16 - 7650 Series | Valpres

  • Durable Split-Body Design: Built for long-term reliability, the split-body construction ensures easy access for servicing without disconnecting the pipeline. This design helps reduce downtime and keeps your systems running smoothly.
  • Secure PN16 Pressure Rating: Handle pressures up to 16 bar with confidence. The PN16 rating provides a safe solution for most industrial fluid control needs.
  • Easy Installation: Lightweight yet sturdy, these valves are quick to install, saving you time and resources. Flanged connections make integration into existing lines straightforward.
  • Low Maintenance: Designed to resist wear and corrosion, the high-quality materials extend the lifetime of the valve and minimize the need for replacements or repairs.
  • Precise Flow Control: The advanced ball valve technology delivers smooth, accurate regulation of liquid or gas. Reliable sealing ensures no leaks and optimum efficiency for your operations.
  • Wide Application Range: Perfectly suited for water treatment, chemical processing, heating systems, and more. This versatility means one valve can serve a variety of roles in your facility.
  • Safety Tested: Each valve undergoes rigorous quality checks to meet strict industry standards. You get dependable performance every time you operate it.

Upgrade your process control with the Split-Body Valves - Split-Body PN16 - 7650 Series | Valpres. With easy maintenance, robust safety, and a user-friendly design, it’s the smart investment for any industrial environment. Enjoy reliable operation year after year—choose Valpres for your next project.


Type : 765000
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A351 CF8M
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 16
  • PN 40

Description

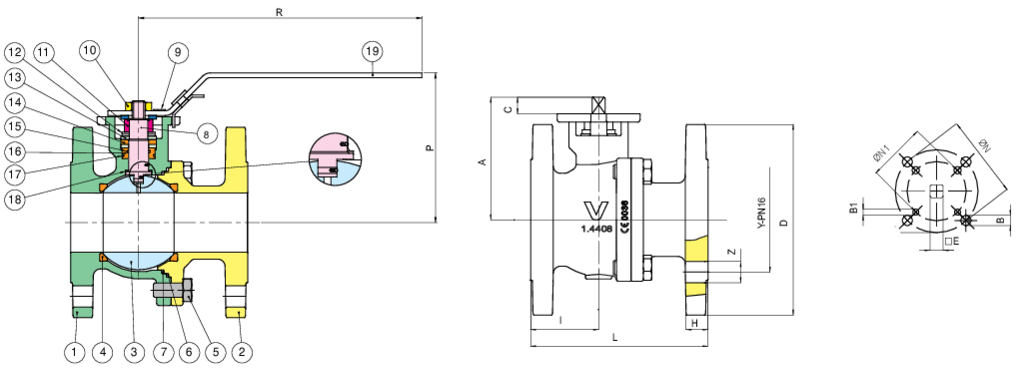

Valpres - Split-Body Valves - Split-Body PN16 - 765000

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5SCREWSTAINLESS STEEL4-8
6BODY SEATGRAPHOIL1
7BODY SEATPTFE1
8STEM17-4-PH1
9SCREWSTAINLESS STEEL1
10NUTSTAINLESS STEEL1
11NUTSTAINLESS STEEL1
12SPRING WASHERSTAINLESS STEEL2
13BUSHA182-F3163
14STEM SEATGRAPHOIL1
15O-RINGFKM1
16STEM SEATPTFE1
17O-RINGFKM1
18THRUST WASHERPTFE1
19HANDLESTAINLESS STEEL1
SIZEDNCODEDYZHILPRACEØNBØN1B1KvPNKg
1/2"1576000004------------------
3/4"2076000005------------------
1"2576500006115854xØ141853125941616911950-F057--64,5403,70
1"1/432765000071401004xØ1818551301081618211950-F057--103,8405,00
1"1/240765000081501104xØ18185214011924194141170-F078,550-F05M6174406,70
2"50765000101651254xØ181857,515012824110313,51170-F078,550-F05M6301,3409,30
2"1/265765000121851454xØ181863170154321128,517,51470-F078,5--545,71613,20
3"80765000142001608xØ182075,5180163321137,517,514102-F101170-F07M10872,51617,20
4"100765000182201808xØ182080190177380153,51917102-F101170-F07M101363,31623,40

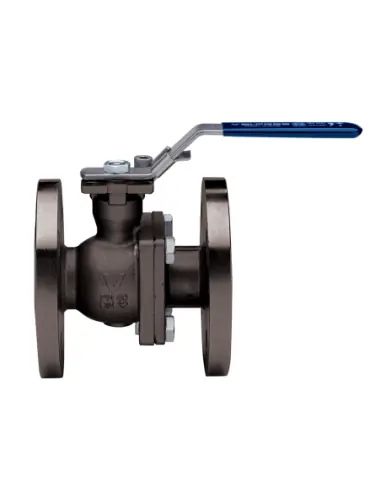

Valpres - Split-Body Valves - Split-Body PN16 - 765001

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4BALL SEATPTFE2
5SCREWCARBON STEEL4-8
6BODY SEATGRAPHOIL1
7BODY SEATPTFE1
8STEM17-4-PH1
9SCREWCARBON STEEL1
10NUTCARBON STEEL1
11NUTCARBON STEEL1
12SPRING WASHERCARBON STEEL2
13BUSHA182-F3163
14STEM SEATGRAPHOIL1
15O-RINGFKM1
16STEM SEATPTFE1
17O-RINGFKM1
18THRUST WASHERPTFE1
19HANDLESTAINLESS STEEL1
SIZEDNCODEDYZHILPRACEØNBØN1B1KvPNKg
1/2"1576000104------------------
3/4"2076000105------------------
1"2576500106115854xØ141853125941616911950-F057--64,5403,70
1"1/432765001071401004xØ1818551301081618211950-F057--103,8405,00
1"1/240765001081501104xØ18185214011924194141170-F078,550-F05M6174406,70
2"50765001101651254xØ181857,515012824110313,51170-F078,550-F05M6301,3409,30
2"1/265765001121851454xØ181863170154321128,517,51470-F078,5--545,71613,20
3"80765001142001608xØ182075,5180163321137,517,514102-F101170-F07M10872,51617,20
4"100765001182201808xØ182080190177380153,51917102-F101170-F07M101363,31623,40

Certifications

TUV SIL 3 TUV SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607
