Experience Superior Fluid Control: Split-Body Valves - Split-Body ANSI150 Series 7660 | Valpres

Unlock precise and reliable flow management with the Split-Body Valves - Split-Body ANSI150 Series 7660 | Valpres. Tailored for industrial environments, these valves deliver consistent performance and lasting durability, making them an essential choice for professionals across various sectors.

Features and Benefits of Split-Body Valves - Split-Body ANSI150 Series 7660 | Valpres

  • Robust Construction: Crafted from high-quality materials, these valves withstand harsh industrial conditions and resist corrosion, ensuring a long operational life with minimal maintenance.
  • Easy Installation & Maintenance: The split-body design allows for quick access to internal parts, making inspections and repairs straightforward. This saves valuable time and reduces downtime in operations.
  • Reliable Sealing: Built-in advanced seals prevent leaks even under fluctuating pressures, safeguarding your system and enhancing workplace safety.
  • Accurate Flow Control: The precise engineering of the valve ensures smooth regulation of liquids or gases, optimizing performance and efficiency for your application.
  • International Standards: Meeting the ANSI150 standard, these valves offer compatibility across a wide range of existing systems and global projects.

The Split-Body Valves - Split-Body ANSI150 Series 7660 | Valpres are designed to simplify the flow process. Their user-friendly structure means anyone can operate or maintain them with confidence, even without advanced technical knowledge. Whether your focus is chemical processing, water treatment, oil and gas, or any other demanding industry, these valves provide the reliability and adaptability you need.

Maximize your system’s performance with a valve that champions efficiency and safety. Trust in the Split-Body ANSI150 Series 7660 | Valpres for excellent value and peace of mind in every operation.


Type : 766000-760005
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A351 CF8M
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 20

Description

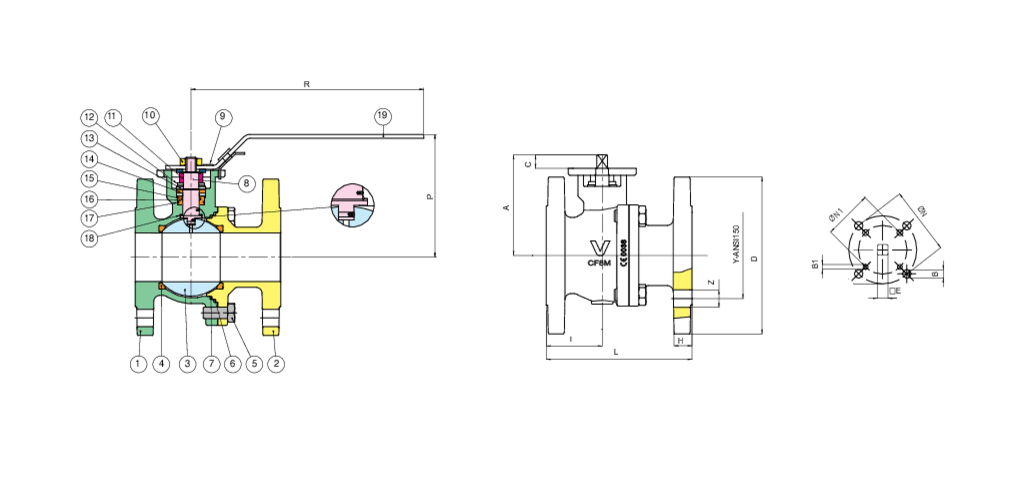

Valpres - Split-Body Valves - Split-Body ANSI150 - 766000

Stainless steel temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4BALL SEATPTFE2
5SCREWSTAINLESS STEEL4-8
6BODY SEATGRAPHOIL1
7BODY SEATPTFE1
8STEM17-4-PH1
9SCREWSTAINLESS STEEL1
10NUTSTAINLESS STEEL1
11NUTSTAINLESS STEEL1
12SPRING WASHERSTAINLESS STEEL2
13BUSHA182-F3162
14STEM SEATGRAPHOIL1
15O-RINGFKM1
16STEM SEATPTFE1
17O-RINGFKM1
18THRUST WASHERPTFE1
19HANDLESTAINLESS STEEL1
SIZEDNCODEDYZHILPRAC□EØNBØN1B1KvPNKg
1/2"1576000504------------------
3/4"2076000505------------------
1"257660000611079,54xØ1614,754127931606911950-F057--64,5203,80
1"1/2407660000813098,54xØ1617,97616511824094141170-F078,550-F05M6174207,00
2"5076600010150102,54xØ1919,584,517812724010313,51170-F078,550-F05M6301,3209,60
2" 1/26576600012180139,74xØ192375190154321128,517,51470-F078,5--545,72015,7
3"8076600014190152,54xØ1924,393203162320137,517,514102-F101170-F07M10872,52017,90
4"10076600018230190,58xØ1924,399,5229177380153,51917102-F101170-F07M101363,32024,30

Valpres - Split-Body Valves - Split-Body ANSI150 - 766001

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4BALL SEATPTFE2
5SCREWCARBON STEEL4-8
6BODY SEATGRAPHOIL1
7BODY SEATPTFE1
8STEM17-4-PH1
9SCREWCARBON STEEL1
10NUTCARBON STEEL1
11NUTCARBON STEEL1
12SPRING WASHERCARBON STEEL2
13BUSHA182-F3162
14STEM SEATGRAPHOIL1
15O-RINGFKM1
16STEM SEATPTFE1
17O-RINGFKM1
18THRUST WASHERPTFE1
19HANDLESTAINLESS STEEL1
SIZEDNCODEDYZHILPRAC□EØNBØN1B1KvPNKg
1/2"1576200004------------------
3/4"2076200005------------------
1"257660010611079,54xØ1614,754127931606911950-F057--64,5203,80
1"1/2407660010813098,54xØ1617,97616511824094141170-F078,550-F05M6174207,00
2"5076600110150102,54xØ1919,584,517812724010313,51170-F078,550-F05M6301,3209,60
2"1/26576600112180139,74xØ192375190154321128,517,51470-F078,5--545,72015,7
3"8076600114190152,54xØ1924,393203162320137,517,514102-F101170-F07M10872,52017,90
4"10076600118230190,58xØ1924,399,5229177380153,51917102-F101170-F07M101363,32024,30

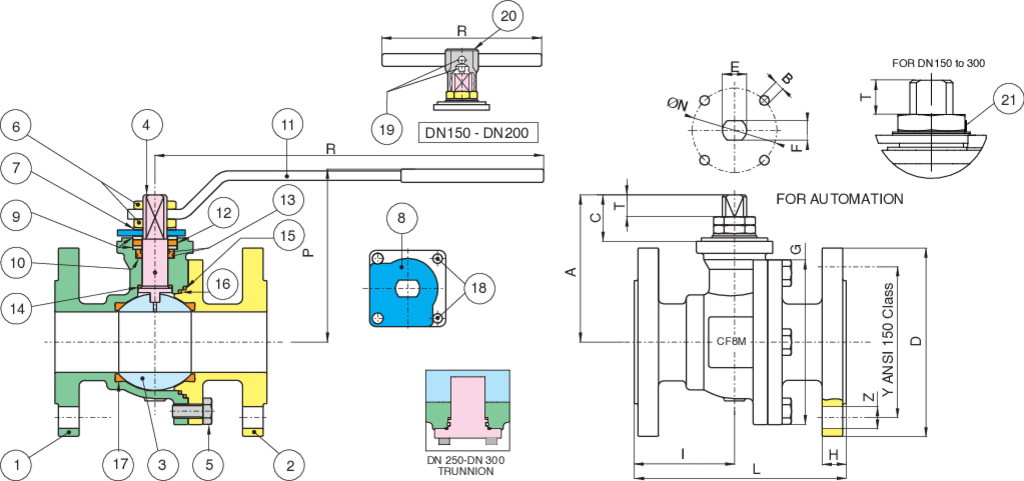

Valpres - Split-Body Valves - Split-Body ANSI150 - 760005

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA351-CF8M1
2END CONNECTIONA351-CF8M1
3BALLA479-TP316/A351-CF8M1
4STEMA479-TP316/17-4-PH1
5SCREWSTAINLESS STEEL4-8-12
6NUTSTAINLESS STEEL1-2
7SPRING WASHERSTAINLESS STEEL2
890° STOPA182-F3161
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLEA182-F3161
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE2
18SCREWSTAINLESS STEEL2
19SCREWSTAINLESS STEEL2
20BODY HANDLE DN150-200EN-GJL 2501
21Unscrewing growerA182-F3161
SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15760005049060,54xØ1611,546,5108718813152198M10742-F04M519,2201,91
3/4"2076000505100704xØ16135311773,59313156198M10742-F04M535202,43
1"257600050611079,54xØ1614,559,512790,58917472,527,513M12850-F05M664,5203,70
1"1/2407600050812598,54xØ1617,5771651141332501063010M161050-F05M6174207,10
2"5076000510150120,54xØ1919,586178136,514432112238,518M201470-F07M8301,32010,80
3"8076000514190152,54xØ192479,5203178,61733811514318M2418102-F10M10872,52021,60
4"10076000518230190,58xØ1924110229208,61873811654318M2418102-F10M101363,32030,40
6"15076000520280241,58xØ2225,51813943113057002456841M4230125-F12M123671,12078,00
8"20076000521345298,58xØ22292124574023487002886841M4230125-F12M126816,620124,60
10"*2507600057740536212xØ2632,2301,8533500--3538147M5238140-F14M1611170,720195,00
12"*30076000578485431,812xØ2633,8353,8610560--3848147M5238140-F14M1616805,620254,00

*TRUNNION supplied without handle.

Certifications

 TUV SIL 3 TUV SIL 3

 FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607
