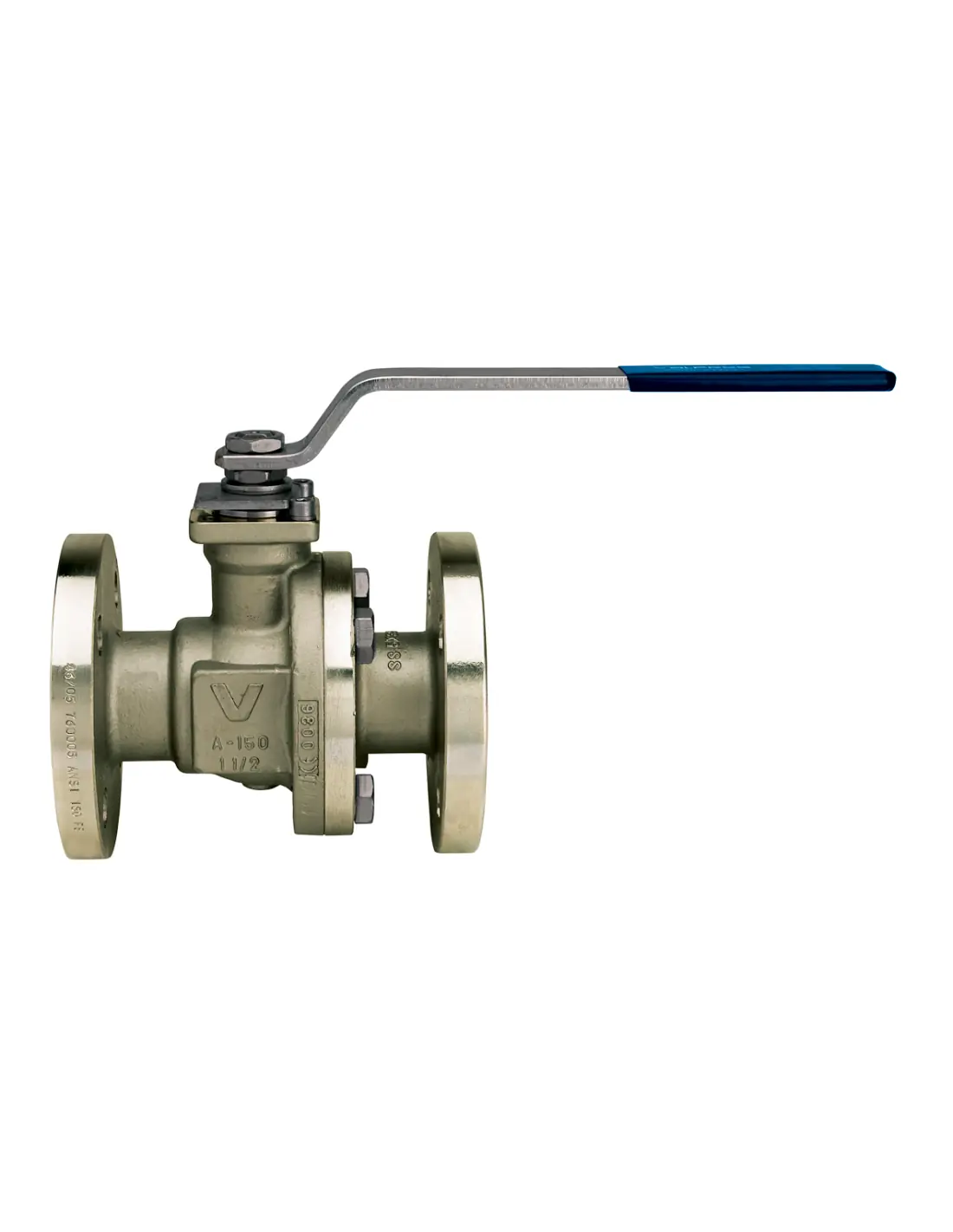

Split-Body Valves - Split-Body ANSI150 - 762000 | Valpres

Reliable Performance with Split-Body Valves - Split-Body ANSI150 - 762000 | Valpres

The Split-Body Valves - Split-Body ANSI150 - 762000 | Valpres are engineered for industries that demand consistent, reliable, and efficient fluid control. Designed for ease-of-use and long-lasting operation, these valves offer an exceptional balance of strength and functionality. Whether your application involves water, chemicals, or gases, the Split-Body ANSI150 guarantees smooth flow regulation and trustworthy leak prevention — all in a compact, user-friendly design.

Key Features & Benefits of Split-Body Valves - Split-Body ANSI150 - 762000 | Valpres

  • Robust Construction: Crafted from high-quality materials, these valves are built to withstand tough industrial conditions, reducing maintenance and replacement needs.
  • Precise Control: The split-body design allows for accurate flow management, making it easy to start, stop, or adjust fluid flow with minimal effort.
  • ANSI150 Compliance: Meeting the ANSI150 standard means guaranteed compatibility and performance, ensuring hassle-free integration into existing systems.
  • Easy Maintenance: The split-body feature enables straightforward access to internal components, simplifying routine inspections, cleaning, and repair.
  • Leak-Proof Sealing: Advanced sealing technology ensures zero leakage, safeguarding your processes and workplace from unexpected spills or contamination.
  • Industrial Versatility: Suitable for various applications, from water purification plants to chemical processing, thanks to its reliable and adaptable design.

With the Split-Body Valves - Split-Body ANSI150 - 762000 | Valpres, you benefit from streamlined operations and reduced downtime. Installation is quick and user-friendly, and ongoing servicing is simple thanks to the accessible split-body layout. These valves deliver high flow capacity and dependable performance, helping you keep your system running smoothly day in, day out.

Engineered by Valpres, a trusted name in industrial valve technology, the Split-Body ANSI150 - 762000 model stands out for its smart design and practical features. Experience clear, controllable, and consistent results with a valve that's built for today’s demanding environments.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 20

Datasheet and documents

Description

v-ball option
v-pack option
low-temp-40-eng-ONDEMAND

Technical specifications

760005

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4STEMA479-TP304/17-4-PH1
5SCREWCARBON STEEL4-8-12
6NUTCARBON STEEL1-2
7SPRING WASHERCARBON STEEL2
890° STOPCARBON STEEL1
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLECARBON STEEL1
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE2
18SCREWCARBON STEEL2
19SCREWCARBON STEEL2
20BODY HANDLE DN150-200EN-GJL 2501
21Unscrewing growerA182-F3161
SIZEDNCODEDYZHILGPRACTEFØNBKvPNKg
1/2"15762000049060,54xØ1611,546,5108718813152198M10742-F04M519,2201,91
3/4"2076200005100704xØ16135311773,59313156198M10742-F04M535202,43
1"257620000611079,54xØ1614,559,512790,58917472,527,513M12850-F05M664,5203,70
1"1/2407620000812598,54xØ1617,5771651141332501063010M161050-F05M6174207,10
2"5076200010150120,54xØ1919,586178136,514432112238,518M201470-F07M8301,32010,80
3"**8076200014190152,54xØ192479,5203178,61733811514318M2418102-F10M10872,52021,60
4"10076200018230190,58xØ1924110229208,61873811654318M2418102-F10M101363,32030,40
6"15076200020280241,58xØ1925,51813943113057002456841M4230125-F10M123671,12078,00
8"20076200021345298,58xØ22292124574023487002886841M4230125-F12M126816,620124,60
10"*2507620007740536212xØ2632,2301,8533500--3538147M5238140-F14M1611170,720195,00
12"*30076200078485431,812xØ2633,8353,8610560--3848147M5238140-F14M1616805,620254,00

*TRUNNION supplied without handle.

**Art. 762000: body and closure A216-WCB. Temperature range: -10°C/-20°C +160°C.

Certifications

TUV SIL 3 TUV SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607

F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1
