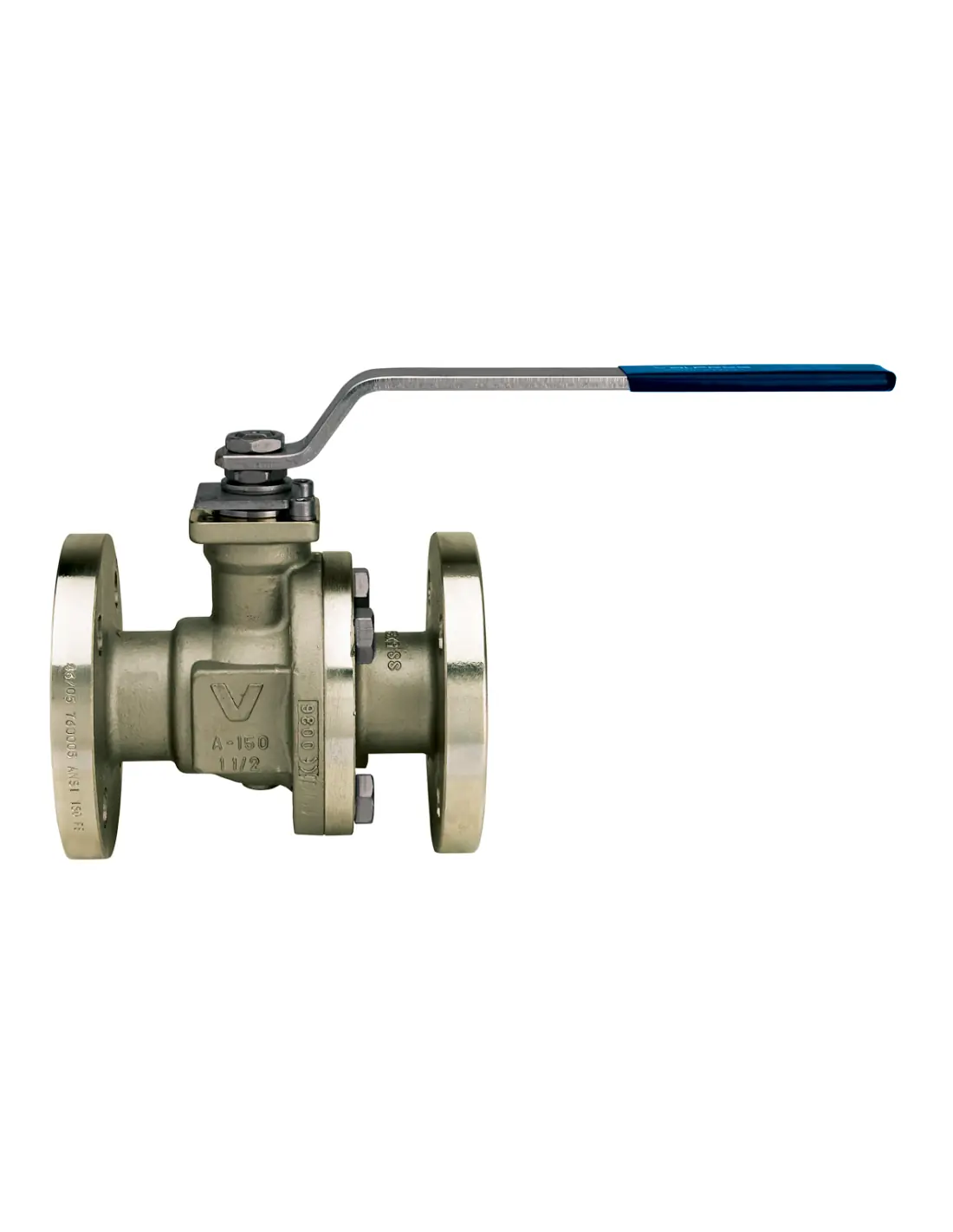

Split-Body Valves - ANSI300 - 761031 | Valpres: Reliable Flow Control for Industrial Demands

The Split-Body Valves - ANSI300 - 761031 | Valpres are expertly crafted to deliver dependable flow management in the most demanding industrial settings. These valves are engineered to provide superior performance, safety, and durability, giving you total confidence for your process control needs.

Features & Benefits of the Split-Body Valves - ANSI300 - 761031 | Valpres

  • High Pressure Performance: Designed for ANSI300 ratings, these valves handle higher pressures with ease, ensuring your system stays secure and efficient even under demanding conditions.
  • Leak-Proof Reliability: The split-body design features tight, precise sealing, minimizing leak risks and helping maintain optimal process control, which is crucial for safety and product quality.
  • Simple Maintenance: Thanks to the split-body construction, inspection and repair are straightforward, reducing downtime and overall maintenance costs.
  • Corrosion Resistance: Manufactured using robust materials, these valves stand up to harsh chemicals and environments, increasing service life and reducing replacement needs.
  • Easy Installation: Thoughtful engineering and user-friendly connections make the installation process quick and hassle-free, saving time during setup.
  • Consistent Operation: Engineered for smooth, reliable opening and closing, these valves help ensure uninterrupted flow and reduce the risks of system failure.

With the Split-Body Valves - ANSI300 - 761031 | Valpres, you get more than just flow control. You gain peace of mind knowing your operations are protected by a valve built for safety, longevity, and ease of use. Experience stress-free maintenance, dependable sealing, and robust construction—all designed to keep your processes running smoothly day after day.

Whether managing water, gas, or chemicals, these valves meet the high standards required for industrial use, giving you the flexibility and trust you need. Choose the Split-Body Valves - ANSI300 - 761031 | Valpres to maximize efficiency, boost operational safety, and enjoy reliable flow control every step of the way.

Datasheet and documents

Description

v-ball option
v-pack option
low-temp-40-eng-ONDEMAND

Technical specifications

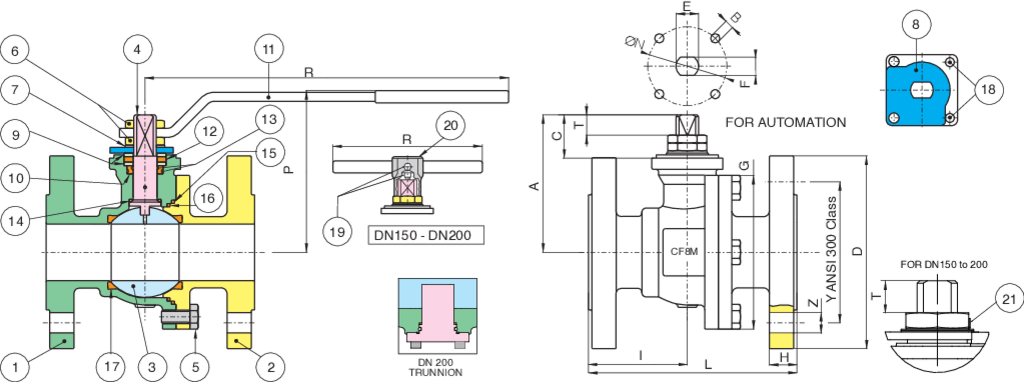

761030

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4STEMA479-TP304/17-4-PH1
5SCREWCARBON STEEL4-8-12
6NUTCARBON STEEL1-2
7SPRING WASHERCARBON STEEL2
890° STOPCARBON STEEL1
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLECARBON STEEL1
12STEM SEALGRAPHOIL1
13O-RINGFKM2
14THRUST WASHERPTFE1
15BODY SEATGRAPHOIL1
16BODY SEATPTFE1
17BALL SEATPTFE+FIBERGLASS2
18SCREWCARBON STEEL2
19SCREWCARBON STEEL2
20BODY HANDLE DN150EN-GJL 2501
21UNSCREWING GROWERA182-F3161
SIZEDNCODEDYZHILGRPACTEFØNBKvPNKg
1/2"15761031049566,54xØ1614,561,5140851318852198M10742-F05M519,2502,30
3/4"207610310511582,54xØ191661152781319356198M10742-F04M535503,50
1"2576103106125894xØ2017,570,51659617410972,527,513M12850-F05M664,5505,20
1"1/24076103108155114,54xØ222178,51901262501331073010M161050-F05M61745010,00
2"50761031101651278xØ2022,586216136,532114412238,518M201470-F07M8301,35012,00
3"8076103114210168,58xØ222981283178,53811731514318M2418102-F10M10872,55027,00
4"100761031182552008xØ223288,53052193811871654318M2418102-F10M101363,35041,00
6"1507610312032027012xØ23371724033067003052456841M4230125-F12M123671,15093,00
8"*2007610312138133012xØ2641,525150241070034828868,541M4230125-F12M126816,625151,00

*TRUNNION ∆p=25 bar

Certifications

TUV SIL 3 TUV SIL 3

 FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607

 F.E. TESTED ISO15848-1 F.E. TESTED ISO15848-1
