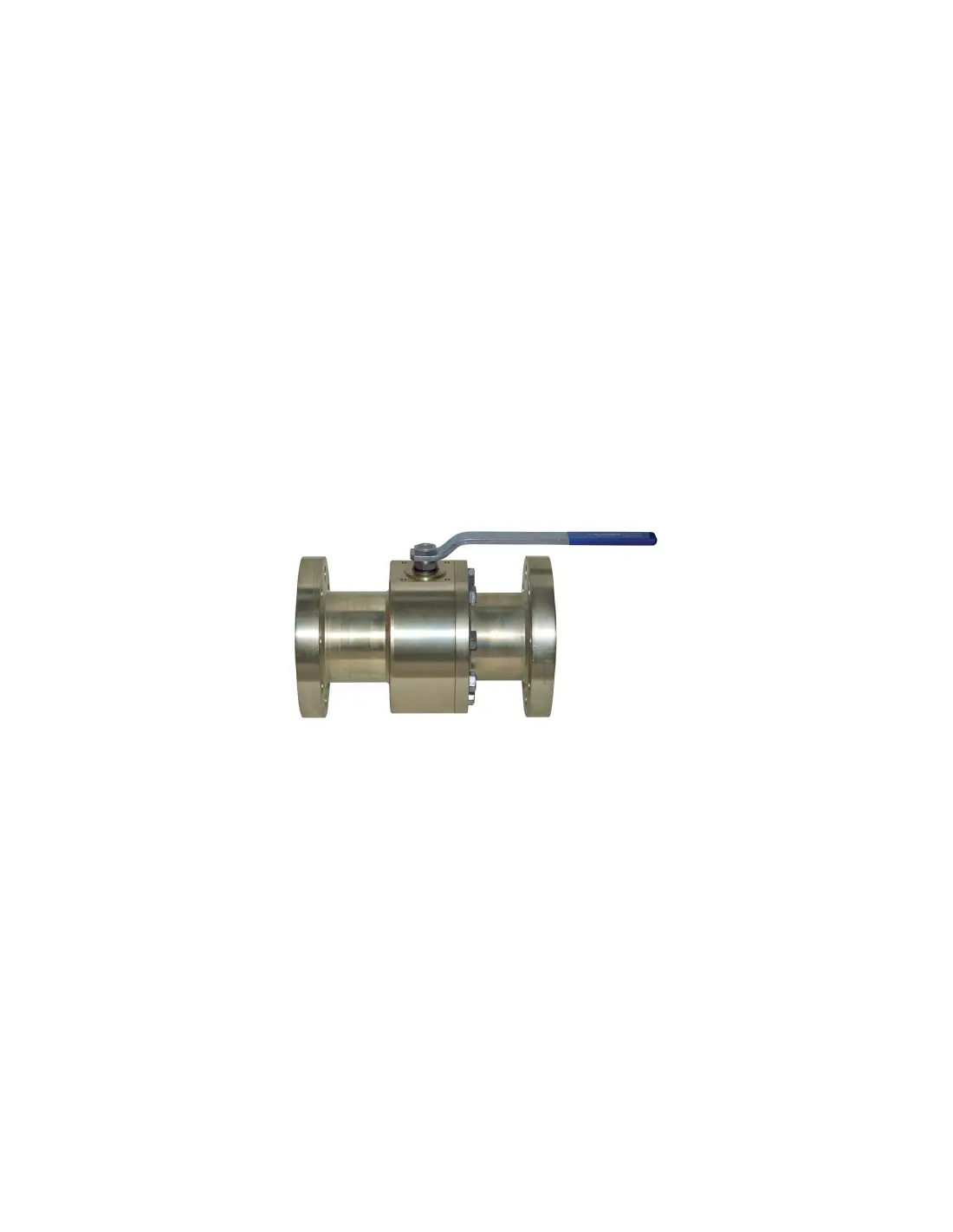

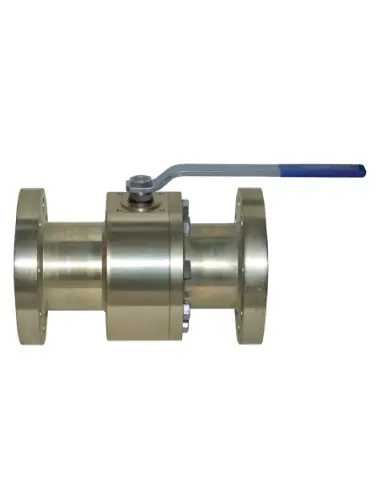

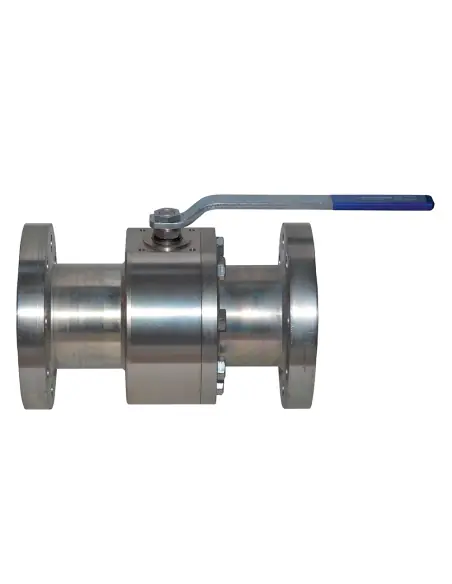

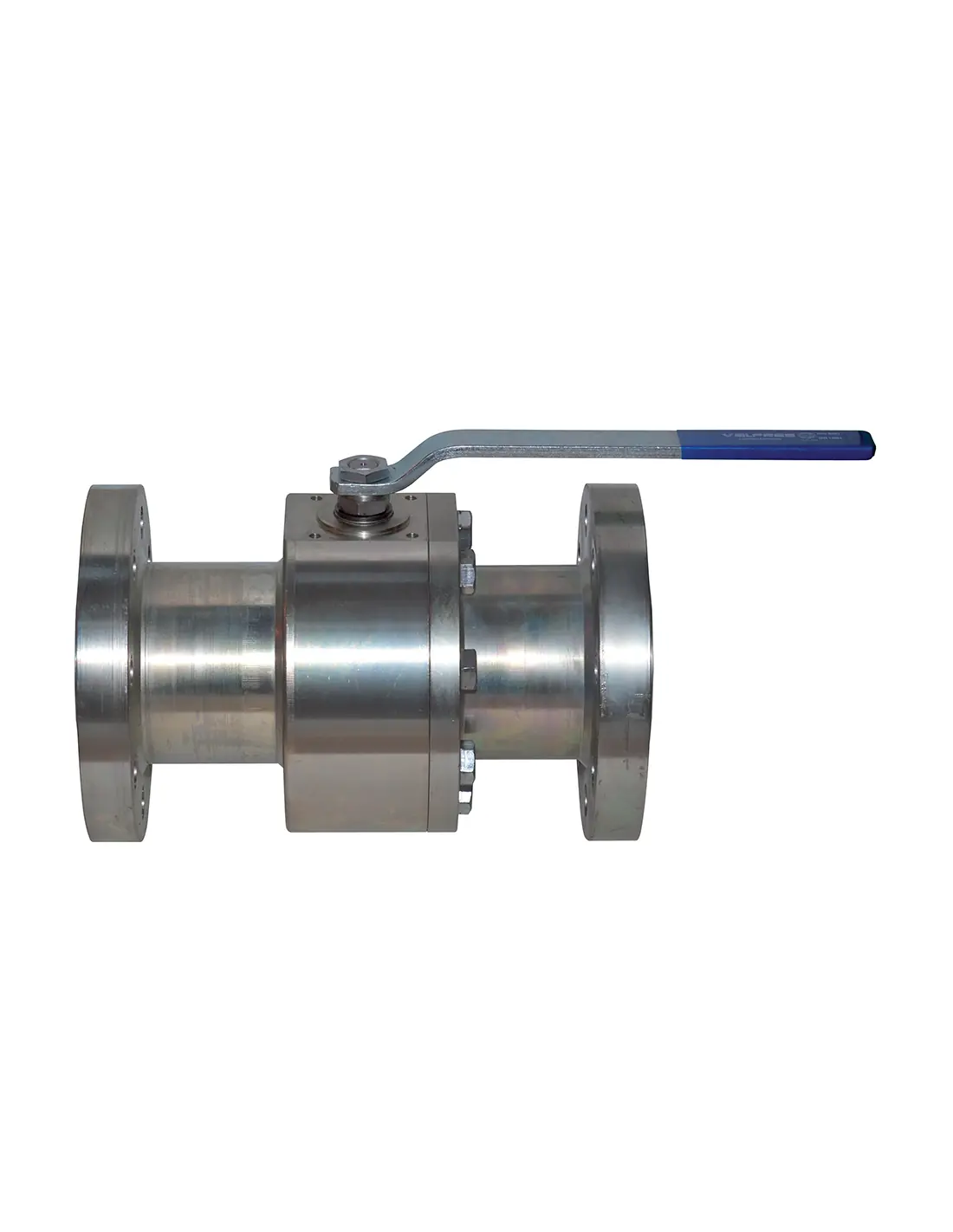

Split-Body Valves - ANSI600 Series 760 | Valpres: Unmatched Performance for Industrial Needs

Discover reliability and high performance with the Split-Body Valves - ANSI600 Series 760 | Valpres. Designed for demanding industrial environments, this valve delivers precise control and safety in every operation. Crafted with quality materials and advanced engineering, it’s the smart choice for professionals who need a robust and trustworthy solution.

Features and Benefits of Split-Body Valves - ANSI600 Series 760 | Valpres

  • Durable Design: The split-body construction ensures lasting strength and stability, even when used under high pressure. This valve is built to withstand challenging conditions, reducing the need for frequent maintenance.
  • Safe Operations: Engineered to meet the ANSI600 standard, it guarantees a high level of safety and leak protection, giving you confidence in every use.
  • Easy Installation: With a straightforward design, the valve can be fitted or replaced quickly, minimizing downtime and increasing productivity on any site.
  • Corrosion Resistance: Made with premium stainless steel, this valve resists rust and chemical damage, ensuring long-term value and fewer replacements over time.
  • Precision Control: The advanced internal mechanisms provide smooth, accurate control over fluid flow, making operations seamless and efficient.

The Split-Body Valves - ANSI600 Series 760 | Valpres stands out for its user-friendly performance. Whether regulating oil, gas, water, or other industrial fluids, it delivers consistent results without hassle. The compact split-body design means it fits easily into most systems, saving space and simplifying upgrades.

Maintenance is straightforward, thanks to accessible parts and a reliable sealing mechanism that minimizes leaks. Every valve undergoes strict quality testing, ensuring it meets the highest standards for strength, safety, and functionality.

Choose the Split-Body Valves - ANSI600 Series 760 | Valpres for impressive durability, optimal control, and secure operation. Experience less downtime, increased efficiency, and peace of mind with a product designed for today’s industrial challenges.


Type : 760200
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A350 LF2
Pressure Rating (Options)
  • PN 100

Description

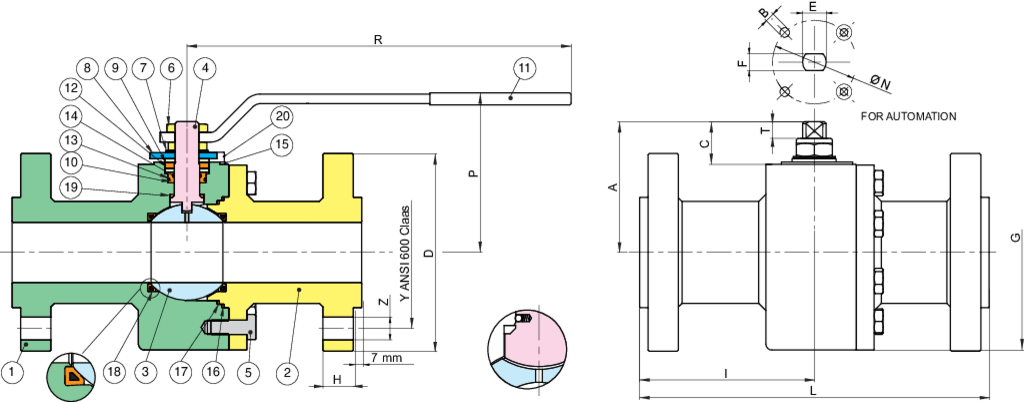

Valpres - Split-Body Valves - ANSI600 - 760200

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA182-F316/F316L1
2END CONNECTIONA182-F316/F316L1
3BALLA479-TP316/A351-CF8M1
4STEMA479-TP316/17-4-PH1
5SCREWSTAINLESS STEEL4-8
6NUTSTAINLESS STEEL2
7SPRING WASHERSTAINLESS STEEL2
890° STOPSTAINLESS STEEL1
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLESTAINLESS STEEL1
12STEM SEALGRAPHOIL1
13O-RINGFKM1
14O-RINGFKM1
15WASHERA182-F3042
16BODY SEATGRAPHOIL1
17BODY SEATPTFE1
18BALL SEATPTFE+MET/R PTFE2
19THRUST WASHERPTFE1
20SCREWSTAINLESS STEEL2
SIZEDNCODEDYZHILGRPACTEFØNBKvPNKg
1/2"15760200049566,74xØ1614,382,5165851318852,519,58M10742-F04M519,21004,10
3/4"207602000511582,64xØ1915,995,519195131925619,58,5M10742-F04M5351006,00
1"2576020006125894xØ1917,510821610817411072,527,513M12850-F05M664,51008,90
1"1/24076020008155114,54xØ2222,3120,52411592511311073213M161050-F05M617410020,00
2"50760200101651278xØ1925,414629216332113310935,514M201470-F07M8301,310025,50
3"8076020014210168,58xØ2231,81783562083811561324016M2418102-F10M10872,510052,00
4"100760200182752168xØ2638,12164322613811861654318M2418102-F10M101363,310097,00

Valpres - Split-Body Valves - ANSI600 - 760150

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYA350-LF21
2END CONNECTIONA350-LF21
3BALLA479-TP304/A351-CF81
4STEMA479-TP304/17-4-PH1
5SCREWCARBON STEEL4-8
6NUTCARBON STEEL2
7SPRING WASHERCARBON STEEL2
890° STOPCARBON STEEL1
9PACKING GLANDA182-F3162
10STEM SEATPTFE1
11HANDLECARBON STEEL1
12STEM SEALGRAPHOIL1
13O-RINGFKM1
14O-RINGFKM1
15WASHERA182-F3042
16BODY SEATGRAPHOIL1
17BODY SEATPTFE1
18BALL SEATPTFE+MET/RPTFE2
19THRUST WASHERPTFE1
20SCREWSTAINLESS STEEL2
SIZEDNCODEDYZHILGRPACTEFØNBKvPNKg
1/2"15760150049566,74XØ1614,382,5165851318852,519,58M10742-F04M519,21004,10
3/4"207601500511582,64XØ1915,995,519195131925619,58,5M10742-F04M5351006,00
1"2576015006125894XØ1917,510821610817411072,527,513M12850-F05M664,51008,90
1"1/24076015008155114,54XØ2222,3120,52411592511311073213M161050-F05M617410020,00
2"50760150101651278XØ1925,414629216332113310935,514M201470-F07M8301,310025,50
3"8076015014210168,58XØ2231,81783562083811561324016M2418102-F10M10872,510052,00
4"100760150182752168XØ2638,12164322613811861654318M2418102-F10M101363,310097,00

Certifications

TUV SIL 3 TUV SIL 3

FIRE-SAFE Acc. EN ISO 10497/API 607 FIRE-SAFE Acc. EN ISO 10497/API 607
