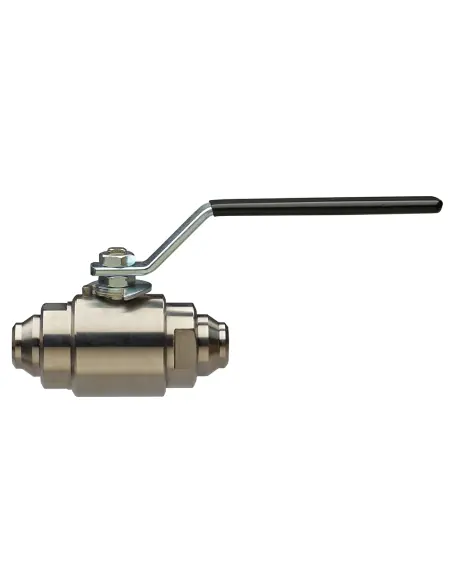

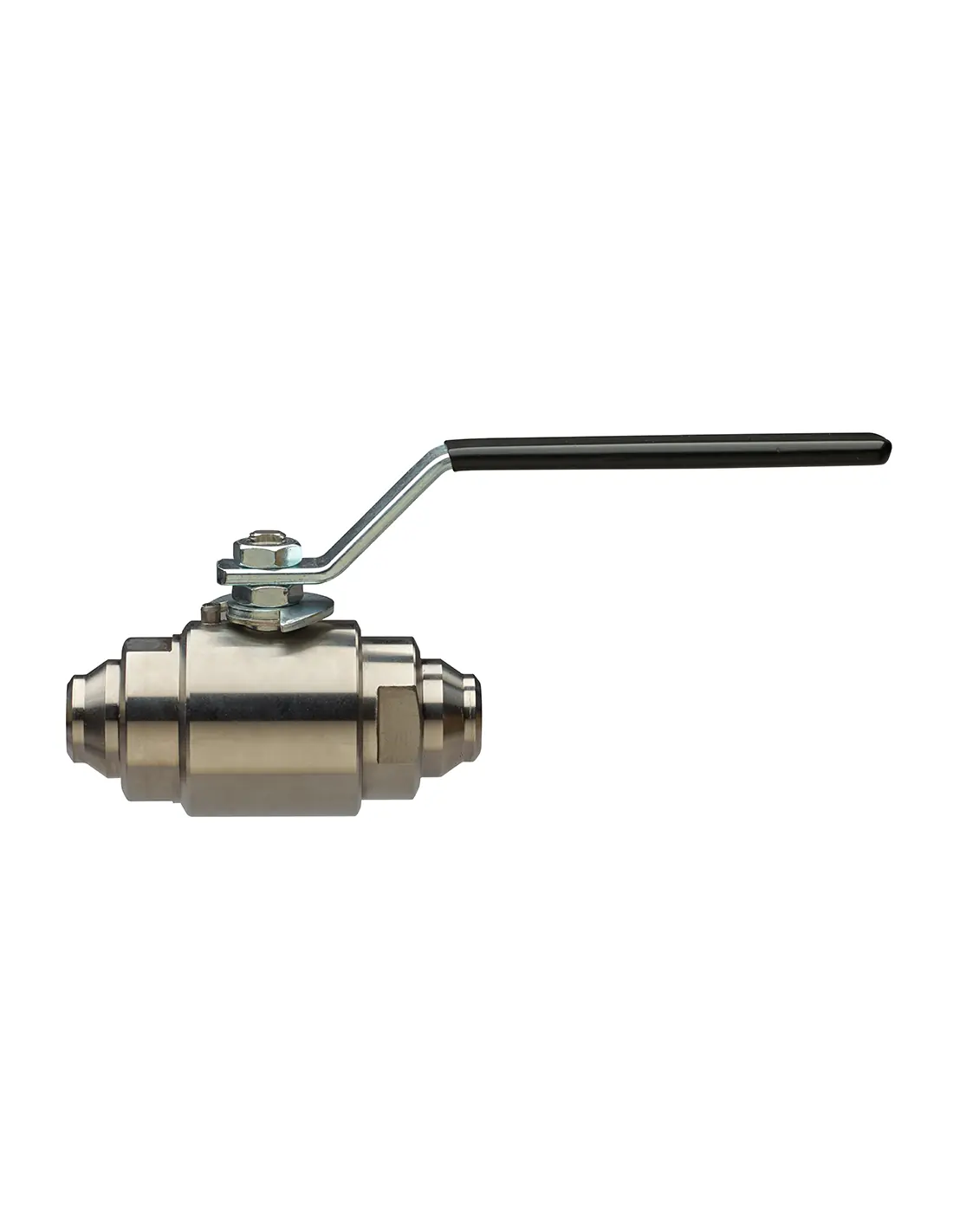

Inox-val 2 Piece Ball Valves - 709 Series | Valpres

Reliable Performance & Efficiency: Discover Inox-val 2 Piece Ball Valves - 709 Series | Valpres

Upgrade your industrial fluid control with the Inox-val 2 Piece Ball Valves - 709 Series | Valpres, designed for seamless operation and lasting durability. Engineered for a wide range of industrial applications, this 2-piece ball valve brings together advanced technology and practical design, making it an ideal choice for those seeking safety and efficiency.

Features & Benefits of Inox-val 2 Piece Ball Valves - 709 Series | Valpres

  • Superior Material Quality: Crafted from premium stainless steel, the Inox-val 709 Series offers unmatched resistance to corrosion, ensuring longevity even in demanding environments.
  • Two-Piece Construction: The smart two-piece design simplifies installation and maintenance, minimizing downtime and effort for your team.
  • Bubble-Tight Shutoff: The precision-engineered ball guarantees a perfect seal, eliminating leaks and ensuring maximum safety for all fluid types.
  • Wide Pressure and Temperature Range: This valve operates reliably under high pressure and extreme temperatures, making it versatile for various industrial tasks.
  • Easy Operation: Enjoy smooth on/off control with a user-friendly lever handle. The handle has a locking device for added security and to prevent accidental operation.
  • Low Maintenance: The robust design and quality materials mean fewer replacements and less upkeep, reducing overall operational costs.
  • Safe for Multiple Media: Whether it’s water, oil, gas, or chemicals, the Inox-val 2 Piece Ball Valves are built to handle different media with ease and reliability.

The Inox-val 2 Piece Ball Valves - 709 Series | Valpres stand out for their reliability and precision. Their user-friendly layout means anyone can operate them confidently—even if you’re new to valve systems. Installation is straightforward, and the sturdy build ensures your processes run smoothly and safely, shift after shift.

Choose lasting performance, zero leaks, and effortless maintenance—choose the Inox-val 2 Piece Ball Valves - 709 Series | Valpres for your next industrial project.


Type : 709B00 BW-709S00 SW
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Socket Weld
  • Butt Weld
Material (Options)
  • ASTM A105
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 138

Description

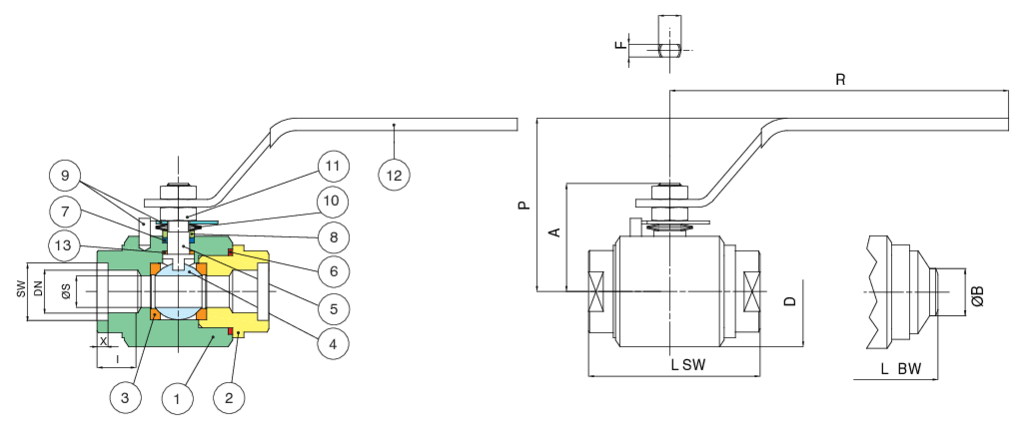

Valpres - Inox-val 2 Piece Ball Valves - 709B00 BW-709S00 SW

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYASTM A479 316/316L1
2END CONNECTIONASTM A479 316/316L1
3BALL SEATPTFE+ CARBOGRAFITE2
4BALLASTM A479 316/316L1
5ANTISTATIC STEMASTM A479 316/316L1
6BODY SEATPTFE+CARBOGRAFITE1
7STEM SEATPTFE+CARBOGRAFITE2
8PACKING GLANDAISI 3161
9END STOPAISI 3161
10SPRING WASHER51CrV4+Z/P1
11NUT6S+Z/P1
12HANDLEA37+Z/P1
13ANTIFRICTION RINGPTFE+CARBOGRAFITE1
SIZEDNCODEADL SWL BWRPEFØSØBSWXkvPNKg
1/4"8709B0002 BW-709S0002 SW384267951487285101414,29,55,51380,60
3/8"10709B0003 BW-709S0003 SW3842679514872851017,217,79,58,51380,60
1/2"15709B0004 BW-709S0004 SW44507510514875105,51521,421,81019,21380,80
3/4"20709B0005 BW-709S0005 SW55,5599012518085127,52026,727,311,833,31381,50
1"25709B0006 BW-709S0006 SW616810514018095127,52533,433,9-64,51382,00
1"1/432709B0007 BW-709S0007 SW70801201602401001493042,242,714103,81383,30
1"1/240709B0008 BW-709S0008 SW82,5931351802401051493848,348,816,61741384,50
2"50709B0010 BW-709S0010 SW901041552202801151494860,361,2172781386,00

Available class 1500 on request.

Valpres - Inox-val 2 Piece Ball Valves - 709B01 BW-709S01 SW

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

PositionPart nameMaterialN.° pieces
1BODYASTM A1051
2END CONNECTIONASTM A1051
3BALL SEATPTFE+ CARBOGRAFITE2
4BALLASTM A479 316/316L1
5ANTISTATIC STEMASTM A479 316/316L1
6BODY SEATPTFE+CARBOGRAFITE1
7STEM SEATPTFE+CARBOGRAFITE2
8PACKING GLANDCARBON STEEL+Z/P1
9END STOPA37+Z/P1
10SPRING WASHER51CrV4+Z/P1
11NUT6S+Z/P1
12HANDLEA37+Z/P1
13ANTIFRICTION RINGPTFE+CARBOGRAFITE1
SIZEDNCODEADL SWL BWRPEFØSØBSWXkvPNKg
1/4"8709B0002 BW-709S0002 SW384267951487285101414,29,55,51380,60
3/8"10709B0003 BW-709S0003 SW3842679514872851017,217,79,58,51380,60
1/2"15709B0004 BW-709S0004 SW44507510514875105,51521,421,81019,21380,80
3/4"20709B0005 BW-709S0005 SW55,5599012518085127,52026,727,311,833,31381,50
1"25709B0006 BW-709S0006 SW616810514018095127,52533,433,9-64,51382,00
1"1/432709B0007 BW-709S0007 SW70801201602401001493042,242,714103,81383,30
1"1/240709B0008 BW-709S0008 SW82,5931351802401051493848,348,816,61741384,50
2"50709B0010 BW-709S0010 SW901041552202801151494860,361,2172781386,00

Available class 1500 on request.

Certifications

 FIRE-SAFE 10497-2010 FIRE-SAFE 10497-2010
