Inox-val 2 Piece Ball Valves - 709G FF 7/1-709N FF NPT Series | Valpres

Discover Reliability: Inox-val 2 Piece Ball Valves - 709G FF 7/1-709N FF NPT Series | Valpres

The Inox-val 2 Piece Ball Valves - 709G FF 7/1-709N FF NPT Series | Valpres are built for those who demand both performance and robust construction in industrial applications. Trusted worldwide, these stainless steel ball valves bring together innovation, durability, and smooth operation to elevate your fluid control systems.

Features & Benefits of Inox-val 2 Piece Ball Valves - 709G FF 7/1-709N FF NPT Series | Valpres

  • Unmatched Durability: Crafted from premium stainless steel, these valves resist corrosion, ensuring long-lasting and safe use even in the toughest industrial environments.
  • Leak-Proof Assurance: The precision-engineered two-piece design delivers a tight, reliable seal, effectively minimizing risks of leaks and loss of valuable materials.
  • Effortless Operation: With a smooth-turning lever and low-torque mechanism, users enjoy easy, consistent flow control—saving time and effort during daily operations.
  • Wide Compatibility: The FF NPT series offers versatile connection options that fit seamlessly into various piping systems, making installation straightforward and hassle-free.
  • Safe for High Pressure: Designed to withstand substantial fluid pressures, these valves keep your working environment secure and your processes running smoothly.

The Inox-val 2 Piece Ball Valves stand out by combining sturdy architecture with efficient performance. The two-piece structure allows for easier maintenance and cleaning, so any downtime is kept to a minimum. This means more productivity and fewer interruptions for industrial facilities.

The high-grade stainless steel body is resistant to chemicals and temperature extremes, protecting both your equipment and your operators. The modular build also supports various industrial fluids and gases, proving to be as versatile as it is dependable.

Clear on/off positions and a robust handle promote safer handling and reduce the chance of misoperation. Whether controlling water, oil, or other industrial substances, the Inox-val 2 Piece Ball Valves - 709G FF 7/1-709N FF NPT Series | Valpres deliver reliable results every time.

Upgrade your installation with a valve system that pairs technical excellence with everyday practicality. Trust in the strength and simplicity of Valpres—where precision meets peace of mind.


Type : 709G00 FF 7/1-709N00 FF NPT
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • NPT
Material (Options)
  • ASTM A105
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 138

Description

Valpres - Inox-val 2 Piece Ball Valves - 709G00 FF 7/1-709N00 FF NPT

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

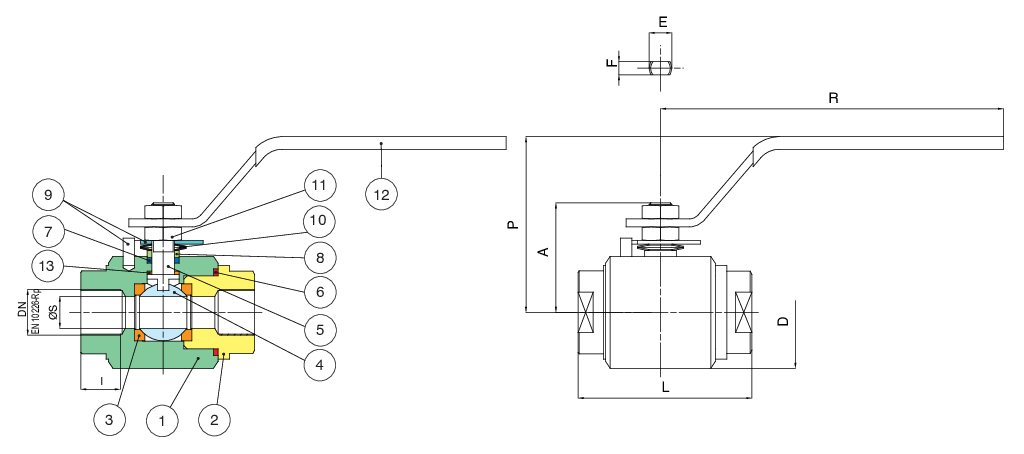

PositionPart nameMaterialN.° pieces
1BODYASTM A479 316/316L1
2END CONNECTIONASTM A479 316/316L1
3BALL SEATPTFE+ CARBOGRAFITE2
4BALLASTM A479 316/316L1
5ANTISTATIC STEMASTM A479 316/316L1
6BODY SEATPTFE+CARBOGRAFITE1
7STEM SEATPTFE+CARBOGRAFITE2
8PACKING GLANDAISI 3161
9END STOPAISI 3161
10SPRING WASHER51CrV4+Z/P1
11NUT6S+Z/P1
12HANDLEA37+Z/P1
13ANTIFRICTION RINGPTFE+CARBOGRAFITE1
SIZEDNCODEADIL ISO 7/1 NPTRPEFØSkvPNKg
1/4"8709G0002-709N0002384211671487285105,51380,60
3/8"10709G0003-709N0003384211,4671487285108,51380,60
1/2"15709G0004-709N00044450157514875105,51519,21380,80
3/4"20709G0005-709N000555,55916,39018085127,519,533,31381,50
1"25709G0006-709N0006616819,110518095127,52564,51382,00
1"1/432709G0007-709N0007708021,412024010014930103,81383,30
1"1/240709G0008-709N000882,59321,4135240105149381741384,50
2"50709G0010-709N00109010425,7155280115149482781386,00

Available class 1500 on request.

Valpres - Inox-val 2 Piece Ball Valves - 709G01 FF 7/1-709N01 FF NPT

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYASTM A1051
2END CONNECTIONASTM A1051
3BALL SEATPTFE+ CARBOGRAFITE2
4BALLASTM A479 316/316L1
5ANTISTATIC STEMASTM A479 316/316L1
6BODY SEATPTFE+CARBOGRAFITE1
7STEM SEATPTFE+CARBOGRAFITE2
8PACKING GLANDCARBON STEEL+Z/P1
9END STOPA37+Z/P1
10SPRING WASHER51CrV4+Z/P1
11NUT6S+Z/P1
12HANDLEA37+Z/P1
13ANTIFRICTION RINGPTFE+CARBOGRAFITE1
SIZEDNCODEADIL ISO 7/1 NPTRPEFØSkvPNKg
1/4"8709G0002-709N0002384211671487285105,51380,60
3/8"10709G0003-709N0003384211,4671487285108,51380,60
1/2"15709G0004-709N00044450157514875105,51519,21380,80
3/4"20709G0005-709N000555,55916,39018085127,519,533,31381,50
1"25709G0006-709N0006616819,110518095127,52564,51382,00
1"1/432709G0007-709N0007708021,412024010014930103,81383,30
1"1/240709G0008-709N000882,59321,4135240105149381741384,50
2"50709G0010-709N00109010425,7155280115149482781386,00

Available class 1500 on request.

Certifications

 FIRE-SAFE 10497-2010 FIRE-SAFE 10497-2010
