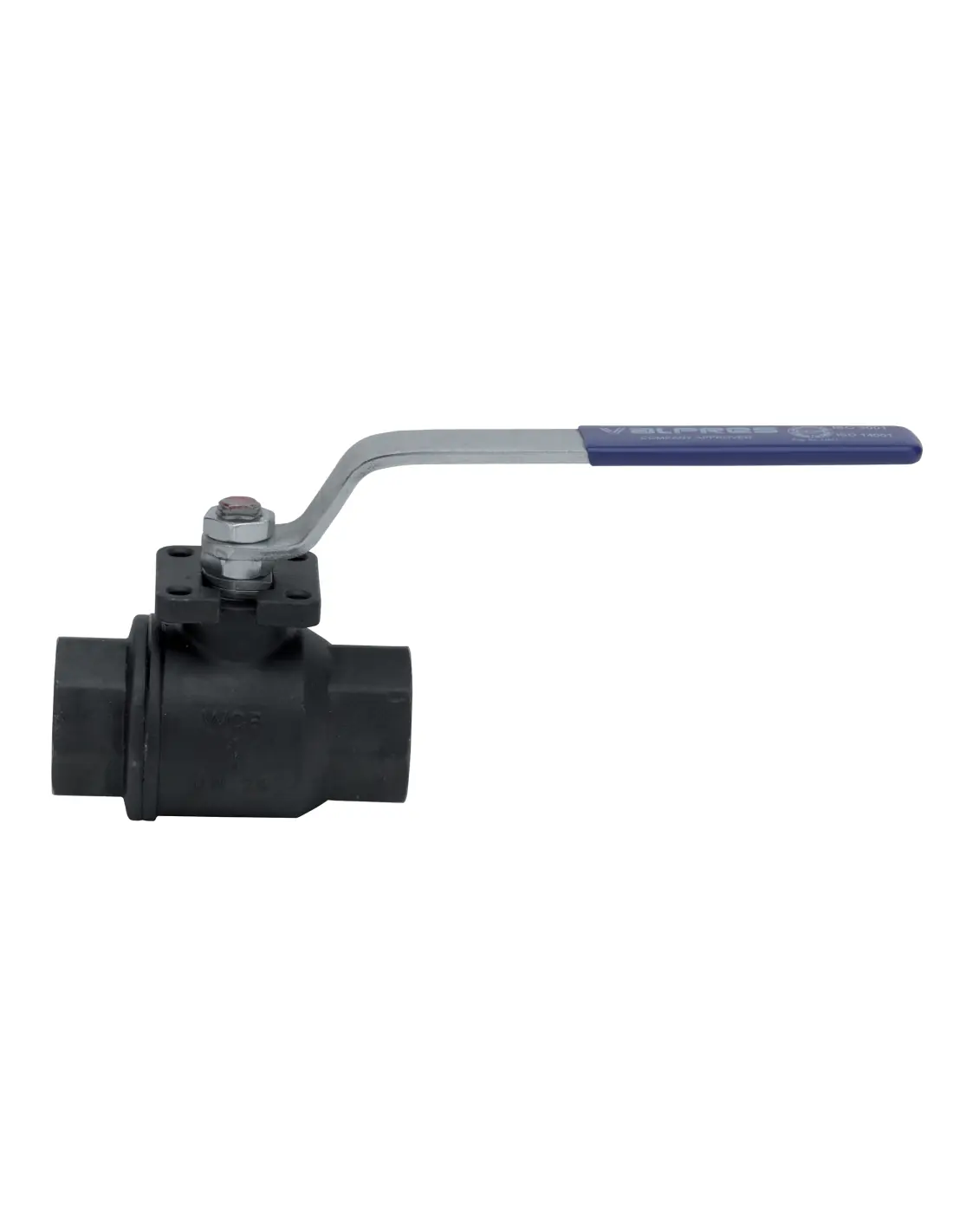

Inox-val 2 Piece Ball Valves - 705000 | Valpres

Reliable Control, Superior Engineering: Inox-val 2 Piece Ball Valves - 705000 | Valpres

The Inox-val 2 Piece Ball Valves - 705000 | Valpres is the ultimate solution for dependable flow control in demanding industrial environments. Expertly crafted from premium stainless steel, this valve stands out for its robust design, smooth operation, and long-lasting performance. Engineered by Valpres, a trusted name in industrial valve technology, this product ensures your operations run efficiently, safely, and without unnecessary downtime.

Features and Benefits of Inox-val 2 Piece Ball Valves - 705000 | Valpres

  • Durable Stainless Steel Construction: Built with high-quality inox (stainless steel), this valve is resistant to corrosion, rust, and harsh chemicals—making it ideal for tough industrial settings.
  • Two-Piece Body Design: The clever two-piece construction allows for easier installation and servicing, saving both time and maintenance costs.
  • Reliable Shut-Off: With its precision-engineered ball mechanism, you get a tight seal every time, minimizing leaks and maximizing efficiency.
  • Wide Range of Applications: Suitable for processing plants, chemical facilities, and water treatment systems—wherever quality and reliability are critical.
  • Easy Operation: The smooth lever handle enables quick and simple flow control, even for users with minimal experience.
  • Safe and Secure: Designed to handle high pressure and temperature, providing peace of mind in intensive applications.
  • Compact and Efficient: Its streamlined design fits easily into piping systems without taking up excess space.

Every detail of the Inox-val 2 Piece Ball Valves - 705000 | Valpres is focused on providing reliable performance with minimal effort. The stainless steel body protects against the wear and tear of industrial use. Its two-piece construction means you can quickly replace or service the valve without disrupting the entire system. The lever handle is ergonomically designed for comfort and effectiveness, so you spend less time worrying about your equipment and more time focusing on your work.

Ideal for anyone seeking a balance of high quality, durability, and effortless performance, the Inox-val 2 Piece Ball Valves - 705000 | Valpres is a smart investment for any modern industrial setup. Experience flawless flow control with a valve you can trust—day in, day out.

Standard (Options)
  • DIN
Connection (Options)
  • ISO 7 Rp
Material (Options)
  • ASTM A352 LCB
Pressure Rating (Options)
  • PN 64

Datasheet and documents

Description

v-ball option
low-temp-40-eng-ONDEMAND

Technical specifications

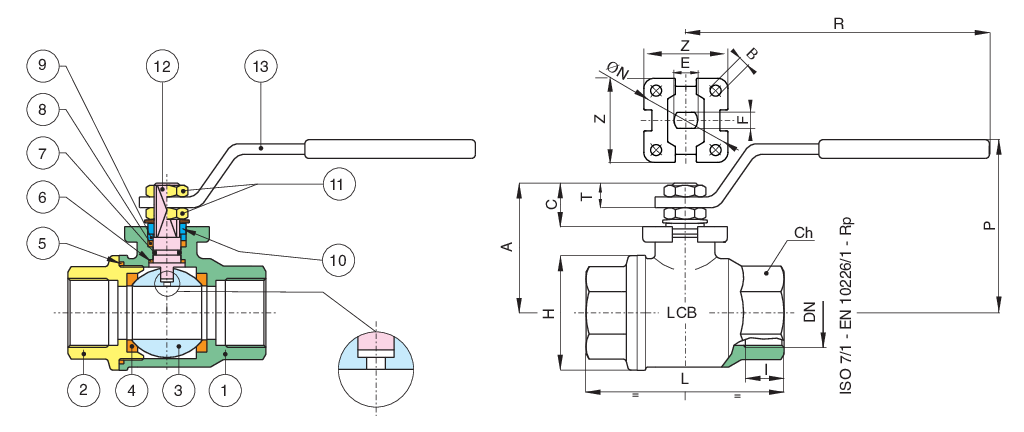

705000ts

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

PositionPart nameMaterialN.° pieces
1BODYA352-LCB1
2END CONNECTIONA352-LCB1
3BALLA479-TP304/A351-CF81
4BALL SEATPTFE2
5SEATPTFE1
6THRUST WASHERPTFE1
7O-RINGFKM1
8STEM SEATPTFE1
9PACKING GLANDCARBON STEEL1
10END STOPINOX AISI 4302
11NUTCARBON STEEL2
12STEMA479-TP304/17-4-PH1
SIZEDNCODEBOXILHChRPACTEFØNBZKvPNKg
1/4"87050000210115530ES.22110503513,5885365,5365,5640,27
3/8"10705000031011,45530ES.22110503513,5885365,5368,5640,26
1/2"157050000410156636ES.27110533813,5885365,53619,2640,35
3/4"2070500005516,37945ES.3213168511510107425,54235640,65
1"2570500006619,19354OT.41174796019,512,5128425,54264,5641,02
1"1/43270500007221,49864OT.50174836419,512,5128425,542103,8641,40
1"1/24070500008221,411080OT.55250100792416,51610506,550174642,35
2"5070500010225,713095OT.70250107862416,51610506,550301,3643,54

Suitable for Methane Gas.

Certifications

SIL 3  SIL 3

TUV TUV

 ATEX FIRE-SAFE (On request) ATEX FIRE-SAFE (On request)
