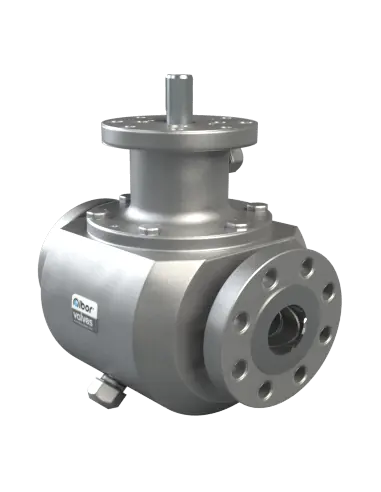

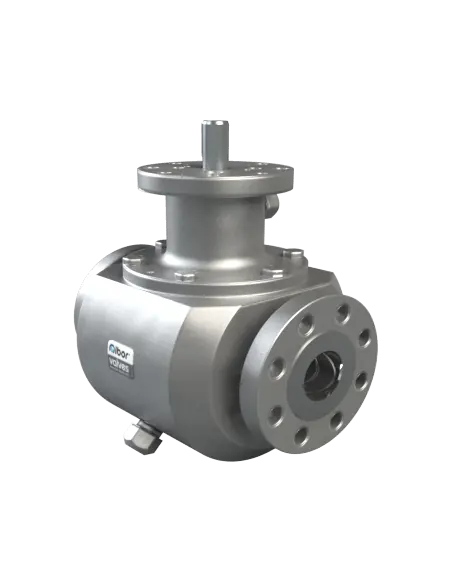

Ball Valve - Type 36005 | Ibor Valves

Ball Valve - Type 36005 | Ibor Valves: Industrial Precision for Reliable Flow Control

The Ball Valve - Type 36005 | Ibor Valves is crafted to deliver exceptional control and dependable shut-off for industrial applications. Designed for strength and efficiency, it stands out as a robust solution for professionals requiring precise flow management.

Key Features & Benefits of Ball Valve - Type 36005 | Ibor Valves

  • High-Quality Material: Built from corrosion-resistant metals, this valve ensures long-lasting performance even in harsh industrial conditions.
  • Reliable Leak-Tight Seal: The advanced ball design provides a tight shut-off, greatly reducing the risk of leaks and ensuring safety throughout your system.
  • Effortless Operation: With a smooth turning mechanism, opening and closing the valve is quick and easy, saving crucial time during operation.
  • Minimal Maintenance: Durable construction means less wear and tear, lowering the need for frequent maintenance and reducing downtime.
  • Broad Compatibility: Fits seamlessly into various industrial pipe systems with standard sizing, making upgrades and replacements easy.
  • Accurate Flow Control: Enables users to fine-tune water, gas, or chemical flow with precision, protecting equipment and boosting operational efficiency.

This ball valve is ideal for industries such as chemical processing, water treatment, and manufacturing. It operates reliably under pressure, providing peace of mind for demanding tasks. Its straightforward design allows even those new to industrial plumbing to install and operate it with confidence.

Upgrade your facility with the Ball Valve - Type 36005 | Ibor Valves—a trusted partner for controlling flow with confidence, safety, and efficiency in every application.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Bidirectional

Stem

  • Stem sealing injector
  • Locking device

Others

  • Drain plug
  • Nipple & Needle
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Butt Weld End: ASME B16.25

**integral nipples and available

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1,3.1, (3.2 upon request)
