IBOR Valves – Technical profile of a forged ball valve and industrial valve manufacturer

IBOR Valves is a Spanish manufacturer of industrial valves, with a strong focus on forged ball valves for oil & gas, petrochemical, pipeline, LNG, offshore, onshore, refinery, mining, chemical and power applications.

The main product range includes:

  • floating ball valves,
  • trunnion mounted ball valves,
  • twin ball valves,
  • high-temperature fluid ball valves,
  • cryogenic ball valves,
  • pig valves,
  • butterfly valves,
  • check valves,
  • gate valves,
  • globe valves.

IBOR forged ball valves are used for primary isolation in demanding process and energy systems. Floating ball valves are suitable for smaller sizes and moderate pressure differentials. Trunnion mounted ball valves are used for larger diameters or higher differential pressures, where the ball must be mechanically supported to reduce seat loading and operating torque.

Soft-seated versions are used for tight shut-off in clean fluids within the temperature limits of the seat material. Metal-seated versions are selected for higher temperatures, abrasive fluids, solids, erosion or services where polymer seats are not suitable.

Cryogenic ball valves require low-temperature materials, extended bonnet design, cavity relief, stem sealing and suitable test procedures. HTF valves must be evaluated for thermal expansion, seat behaviour and fluid compatibility at elevated temperature.

IBOR valves are selected according to service conditions, not only size and class. Required data include pressure, temperature, medium, corrosion conditions, fire-safe requirements, fugitive emissions, NACE / sour service, leakage class, actuator interface, material certificates and testing plan.

For process engineers and valve application engineers, IBOR valves should be treated as pressure-retaining and safety-relevant components in pipeline, LNG, refinery and petrochemical systems.

Ball Valve - Type 13000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 13000 | Ibor Valves

Ball Valve - Type 13000 | Ibor Valves
Ibor Valves

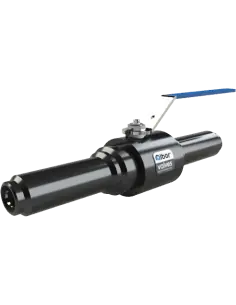

Ibor Type 13000 Ball Valve The Ibor 13000 is a 2-way ball valve used for on/off isolation in industrial liquid and gas services. Selection should be based on process medium, pipe connection, design pressure, operating temperature, seat material, leakage class, and maintenance requirements. Construction and Sealing The valve can be specified with:...
View
Ball Valve - Type 19000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 19000 | Ibor Valves

Ball Valve - Type 19000 | Ibor Valves
Ibor Valves

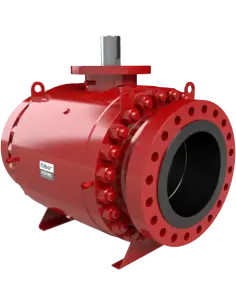

Ibor Type 19000 Ball Valve The Ibor 19000 is a 2-way ball valve used for on/off isolation in industrial piping systems handling liquids, gases, steam auxiliaries and process utility services. Selection is normally based on pressure class, temperature, fluid compatibility, leakage requirements and cavity isolation philosophy. Technical Configuration DIB...
View
Ball Valve - Type 19001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 19001 | Ibor Valves

Ball Valve - Type 19001 | Ibor Valves
Ibor Valves

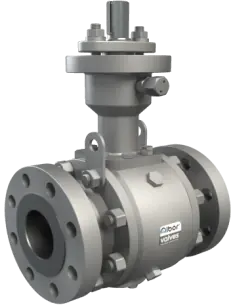

Ibor Type 19001 Ball Valve The Ibor 19001 is a 2-way ball valve used for on/off isolation in industrial liquid and gas lines. The valve can be configured with DIB I or DIB II seat arrangements, depending on the required cavity sealing philosophy, pressure direction, and maintenance isolation requirements. Seat and Stem Configuration DIB I: double...
View
Ball Valve - Type 19002 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 19002 | Ibor Valves

Ball Valve - Type 19002 | Ibor Valves
Ibor Valves

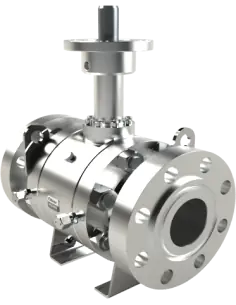

Ibor Type 19002 Ball Valve The Ibor 19002 is a 2-way ball valve used for flow isolation in industrial liquid and gas systems. Selection is primarily based on seat sealing philosophy, pipe-end connection, operating media, leakage requirements and maintainability under plant conditions. Seat Configurations DIB I: double piston effect on both downstream and...
View
Ball Valve - Type 19005 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 19005 | Ibor Valves

Ball Valve - Type 19005 | Ibor Valves
Ibor Valves

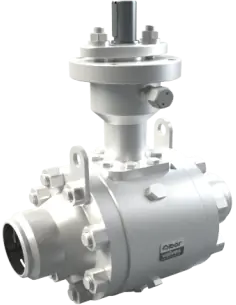

Ibor Type 19005 Ball Valve The Ibor 19005 is a 2-way ball valve used for flow isolation in industrial piping systems. It is specified with DIB I or DIB II seat configuration and may include auxiliary stem sealing injection for maintenance or emergency sealing during operation. Seat Configuration and Sealing DIB I: double piston effect on both downstream...
View
Ball Valve - Type 24000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 24000 | Ibor Valves

Ball Valve - Type 24000 | Ibor Valves
Ibor Valves

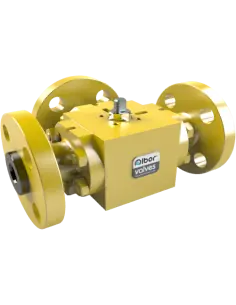

IBOR Type 24000 Ball Valve The IBOR 24000 is a 2-way ball valve used for industrial flow isolation in liquid and gas services. It is applied on process lines, utility headers and auxiliary circuits where tight on/off duty, low pressure drop and defined isolation points are required. Stem, Body Cavity and Sealing Options Extended stem or bonnet for...
View

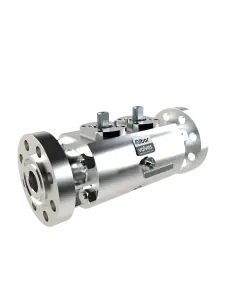

Ball Valve - Type 28000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 28000 | Ibor Valves

Ball Valve - Type 28000 | Ibor Valves
Ibor Valves
Ibor Type 28000 Ball Valve The Ibor 28000 is a 2-way ball valve used for flow isolation in industrial piping. The self-relieving seat allows pressure in the ball cavity to vent to the line, which is relevant where trapped liquid may expand due to temperature increase. Sealing, Stem and Body Options Self-relieving seat for cavity pressure relief Stem...
View

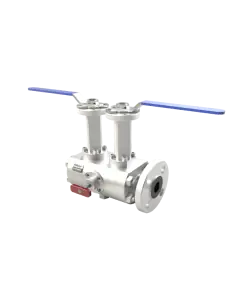

Ball Valve - Type 28001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 28001 | Ibor Valves

Ball Valve - Type 28001 | Ibor Valves
Ibor Valves
Ibor Type 28001 Ball Valve The Ibor 28001 is a 2-way isolation ball valve for industrial liquid and gas services. The configuration combines a self-relieving seat for cavity pressure relief with a secondary soft seat where additional shut-off tightness is required. Sealing System and Stem Arrangement Self-relieving seat to reduce trapped cavity...
View

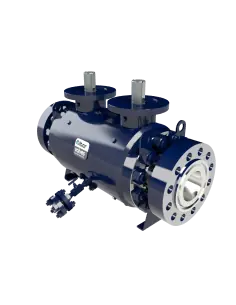

Ball Valve - Type 29000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 29000 | Ibor Valves

Ball Valve - Type 29000 | Ibor Valves
Ibor Valves
Ibor Type 29000 Ball Valve The Ibor 29000 is a 2-way ball valve used for industrial flow isolation in liquid, gas, steam, hydrocarbon and utility systems. The DIB seat arrangement defines how the valve seals against line pressure and how pressure trapped in the ball cavity is managed. Seat Design and Sealing Logic DIB I: double piston effect on both...
View
Ball Valve - Type 29001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 29001 | Ibor Valves

Ball Valve - Type 29001 | Ibor Valves
Ibor Valves

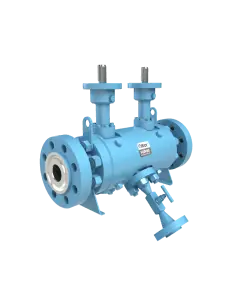

Ibor Type 29001 Ball Valve The Ibor 29001 is a 2-way ball valve for on/off isolation in industrial liquid and gas piping. Compared with the 29000 series, the 29001 includes a secondary soft seat, providing an additional sealing interface where tighter shutoff is required and the process medium is compatible with soft-seat materials. Seat Design and...
View

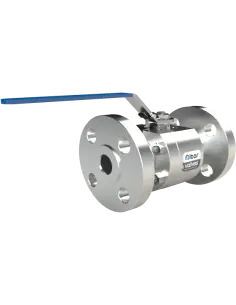

Ball Valve - Type 32000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 32000 | Ibor Valves

Ball Valve - Type 32000 | Ibor Valves
Ibor Valves
Ibor Type 32000 Ball Valve The Ibor 32000 is a 2-way ball valve used for on/off isolation in industrial liquid and gas pipelines. The design includes a self-relieving seat arrangement to vent excess pressure from the ball cavity when trapped fluid expands thermally. Technical Characteristics Self-relieving seat for cavity pressure relief Stem extension...
View
Ball Valve - Type 32001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 32001 | Ibor Valves

Ball Valve - Type 32001 | Ibor Valves
Ibor Valves

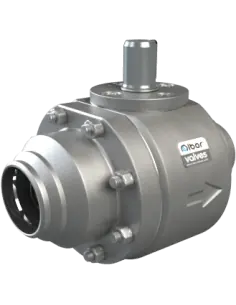

Ibor Type 32001 Ball Valve The Ibor 32001 is a 2-way ball valve used for flow isolation in industrial liquid and gas services. It is specified where tight shut-off, cavity pressure relief, and defined end-connection standards are required in process or utility pipework. Sealing and Operating Features Self-relieving seat for cavity pressure relief caused...
View
Ball Valve - Type 32002 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 32002 | Ibor Valves

Ball Valve - Type 32002 | Ibor Valves
Ibor Valves
Spherical Ball Valve Ibor Type 32002 The Ibor 32002 is a 2-way industrial ball valve used for flow isolation in liquid and gas pipelines. The design is based on a self-relieving seat arrangement, with provision for supplementary seat sealing through an injector when required. Sealing and Maintenance Features Self-relieving seat for cavity pressure...
View
Ball Valve - Type 32005 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 32005 | Ibor Valves

Ball Valve - Type 32005 | Ibor Valves
Ibor Valves
Ibor Type 32005 Ball Valve The Ibor 32005 is a 2-way ball valve used for flow isolation in industrial liquid and gas piping. The self-relieving seat arrangement allows pressure trapped in the ball cavity to be discharged to the line, reducing the risk of cavity overpressure. The bidirectional design permits installation for flow in either direction,...
View
Ball Valve - Type 36000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 36000 | Ibor Valves

Ball Valve - Type 36000 | Ibor Valves
Ibor Valves
Ibor Type 36000 Ball Valve The Ibor 36000 is a 2-way ball valve used for flow isolation in industrial liquid and gas services. The self-relieving seat arrangement allows pressure trapped in the ball cavity to vent, which is relevant where thermal expansion of an isolated medium can occur. Design Features Self-relieving seat for cavity pressure relief...
View
Ball Valve - Type 36001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 36001 | Ibor Valves

Ball Valve - Type 36001 | Ibor Valves
Ibor Valves
Ibor Type 36001 Ball Valve The Ibor 36001 is a 2-way ball valve used for flow isolation in industrial piping. It is specified for clean liquids and gases where tight shut-off, bidirectional service and controlled cavity pressure are relevant to valve selection. Sealing and Body Design Self-relieving seat for cavity pressure relief in closed-valve...
View
Ball Valve - Type 36002 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 36002 | Ibor Valves

Ball Valve - Type 36002 | Ibor Valves
Ibor Valves
Ibor Type 36002 Ball Valve The Ibor 36002 is a 2-way ball valve used for industrial isolation service in liquid and gas lines. The valve includes a self-relieving seat arrangement to relieve pressure from the ball cavity when trapped fluid expands thermally. Seat Design and Cavity Relief Self-relieving seat / cavity relief design. Reduces the risk of...
View
Ball Valve - Type 36005 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 36005 | Ibor Valves

Ball Valve - Type 36005 | Ibor Valves
Ibor Valves
Ibor Type 36005 Ball Valve The Ibor 36005 is a 2-way industrial ball valve used for flow isolation in process piping. The design includes a self-relieving seat for cavity pressure relief and bidirectional shut-off, subject to the selected seat, seal, body material, pressure class, and temperature rating. Sealing and Operation Self-relieving seat for...
View
Ball Valve - Type 37000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 37000 | Ibor Valves

Ball Valve - Type 37000 | Ibor Valves
Ibor Valves
Ibor Type 37000 Ball Valve The Ibor 37000 is a two-way ball valve for isolation service in industrial liquid and gas piping. The DIB seat arrangement is used where controlled sealing of the ball cavity and defined upstream/downstream seat behaviour are required. Seat design and DIB variants DIB I: double piston effect on both upstream and downstream...
View
Ball Valve - Type 37001 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 37001 | Ibor Valves

Ball Valve - Type 37001 | Ibor Valves
Ibor Valves
Spherical Ball Valve Ibor Type 37001 The Ibor 37001 is a 2-way industrial ball valve used for on/off isolation in process piping. The design is applicable where tight shut-off, cavity pressure management and seat sealing philosophy must be defined during valve selection. The valve can be specified with DIB seat arrangements and a secondary soft seat to...
View
Ball Valve - Type 37002 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 37002 | Ibor Valves

Ball Valve - Type 37002 | Ibor Valves
Ibor Valves
Ibor Ball Valve Type 37002 The Ibor 37002 is a 2-way ball valve for industrial isolation of liquid and gas lines. It is intended for on/off service, not continuous throttling. Seat configuration is selected according to cavity pressure behavior, leakage acceptance, maintenance philosophy, and upstream/downstream isolation requirements. Seat and Cavity...
View
Ball Valve - Type 37005 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 37005 | Ibor Valves

Ball Valve - Type 37005 | Ibor Valves
Ibor Valves
Ibor Type 37005 Ball Valve The Ibor 37005 is a 2-way ball valve used for industrial flow isolation. The DIB configuration allows cavity sealing verification and maintenance intervention at the stem area through a stem sealing injector. Seats and Sealing Arrangement DIB I: double piston effect on both downstream and upstream seats. DIB II: double piston...
View
Ball Valve - Type 39000 | Ibor Valves | Philippopoulos s.a.

Ball Valve - Type 39000 | Ibor Valves

Ball Valve - Type 39000 | Ibor Valves
Ibor Valves
Ibor Type 39000 Ball Valve The Ibor 39000 is a 2-way industrial ball valve used for flow isolation in liquid and gas lines. The valve is intended for on/off service where cavity sealing, seat leakage control and maintainability are part of the valve selection criteria. Seat Configuration DIB I: double piston effect on both downstream and upstream seats....
