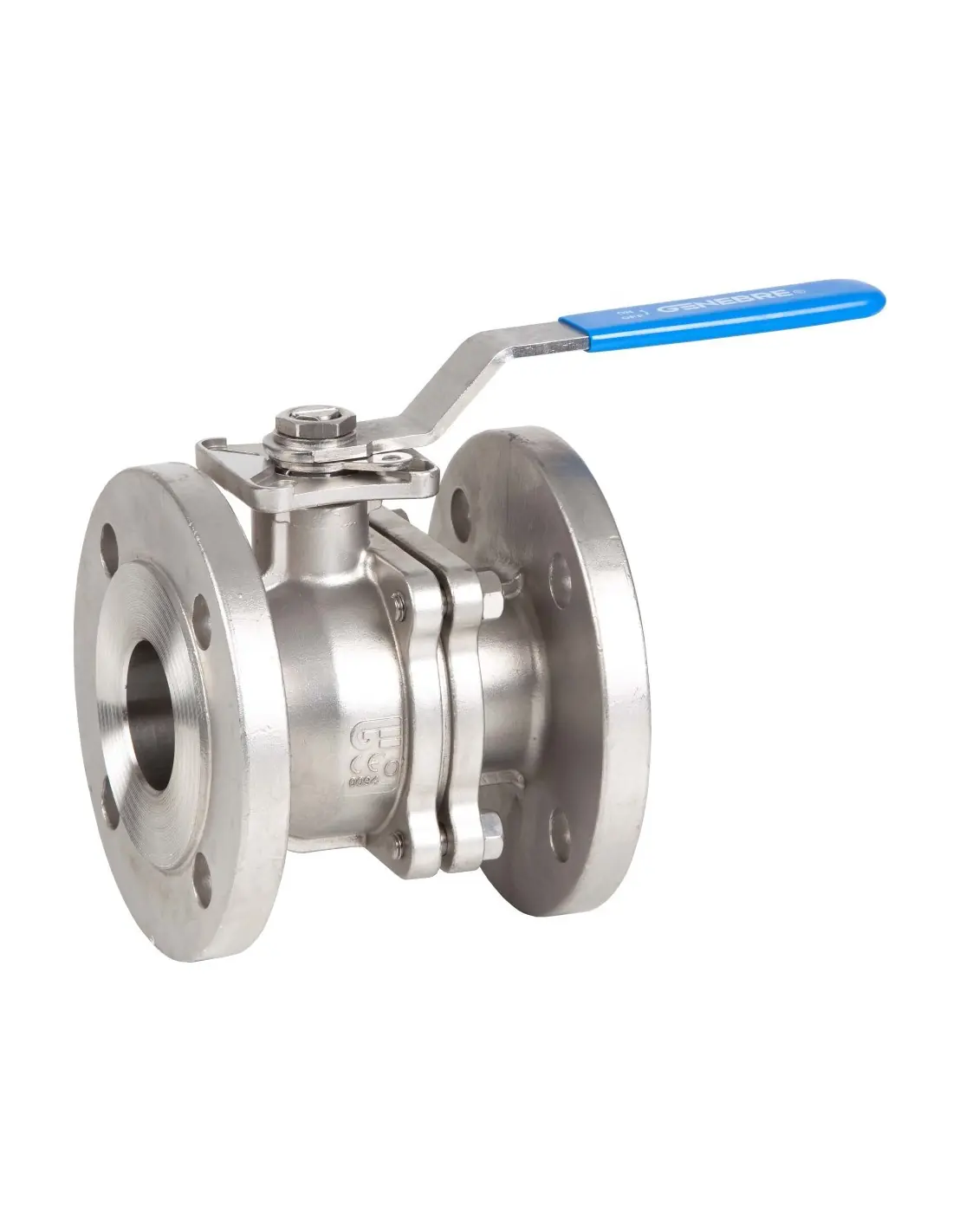

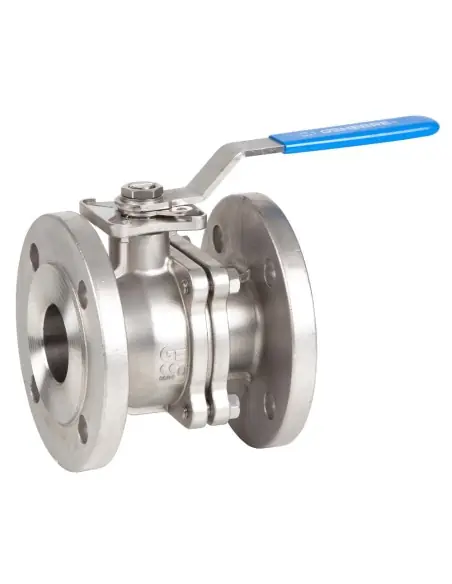

Ball Valve flanged ends - 2 pcs full bore ball valve flanges DIN FIRE-SAFE Certification - 2528 | Genebre

Features & Benefits of Ball Valve flanged ends - 2 pcs full bore ball valve flanges DIN FIRE-SAFE Certification - 2528 | Genebre

Upgrade your industrial piping systems with the Ball Valve flanged ends - 2 pcs full bore ball valve flanges DIN FIRE-SAFE Certification - 2528 | Genebre. Designed to deliver supreme reliability and efficiency, this robust valve is the perfect solution for professionals seeking secure and seamless flow control under even the most demanding conditions. Its advanced engineering ensures both safety and top-tier performance every time.

Full Bore Design: Thanks to its full bore structure, this valve allows maximum flow with minimal pressure drop, making it perfect for operations where efficiency counts.
Two-Piece Construction: Easy to install and maintain, the two-piece design ensures durability and simplified servicing, reducing downtime and maintenance costs.
DIN Flanged Ends: The standardized DIN flanges guarantee a secure and straightforward connection to your piping systems, enhancing compatibility and safety.
FIRE-SAFE Certification: Meeting strict international safety standards, the FIRE-SAFE certification provides exceptional peace of mind, protecting systems during critical situations and ensuring safe shutoff even under high temperatures.
Heavy-Duty Performance: Constructed from high-quality materials, the valve offers excellent resistance to corrosion, extreme temperatures, and high pressure, making it suitable for various industrial applications.

Easy to operate, the lever handle allows smooth, quick opening and closing, giving you complete control over the flow. The reliable sealing system minimizes leaks, helping you save on resources and protect the environment. Whether managing water, chemicals, gases, or other industrial fluids, the Ball Valve flanged ends - 2 pcs full bore ball valve flanges DIN FIRE-SAFE Certification - 2528 | Genebre is built to meet the demands of intensive use.

Trust in Genebre’s reputation for quality and innovation. With intuitive installation, robust safety features, and operational excellence, this valve is the smart addition to any industrial setup. Make your processes safer, faster, and more reliable today.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

1.4408

Pressure Rating (Options)

PN 16
PN 40

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Flanges DIN PN -40 ≤ DN -50

Flanges DIN PN -16 >DN -50

Direct mounting for actuators ISO 5211. Body: Stainless steel. CF8M (316) investment casting. Seats: PTFE + 15% GF stem o’ring: viton. Antiestatic device.

Max. pressure: 40/16 BAR depending on size.

Temp.: -30ºC +180ºC. manually operated by handle.

L: DIN 3202 F-4 DN 15 DN 100 F-5 DN 125 DN 200.

Reference: 2528

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2528 04	2PC FULL BORE BALL VALVE 1/2" PN40	1	2.157	1/10
2528 05	2PC FULL BORE BALL VALVE 3/4" PN40	1	3.008	1/8
2528 06	2PC FULL BORE BALL VALVE 1" PN40	1	3.842	1/5
2528 07	2PC FULL BORE BALL VALVE 1 1/4" PN40	1	5.899	1/4
2528 08	2PC FULL BORE BALL VALVE 1 1/2" PN40	1	6.883	1/3
2528 09	2PC FULL BORE BALL VALVE 2" PN40	1	9.468	1/1
2528 10	2PC FULL BORE BALL VALVE 2 1/2" PN16	1	15.192	1/1
2528 11	2PC FULL BORE BALL VALVE 3" PN16	1	19.312	1/1
2528 12	2PC FULL BORE BALL VALVE 4" PN16	1	26.783	1/1
2528 13	2PC FULL BORE BALL VALVE 5" PN16	1	38.119	1/1
2528 14	2PC FULL BORE BALL VALVE 6" PN16	1	51.417	1/1
2528 16	2PC FULL BORE BALL VALVE 8" PN16	1	115	1/1
