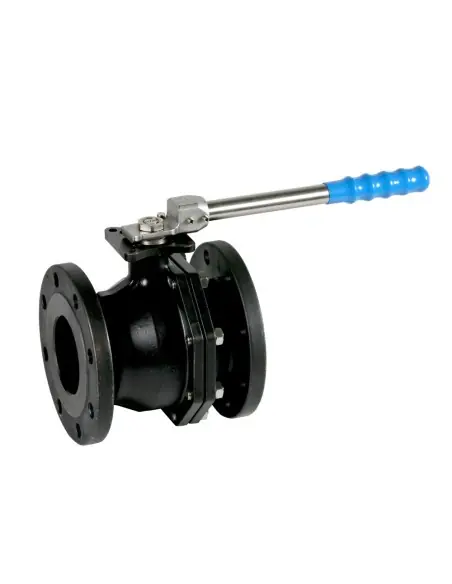

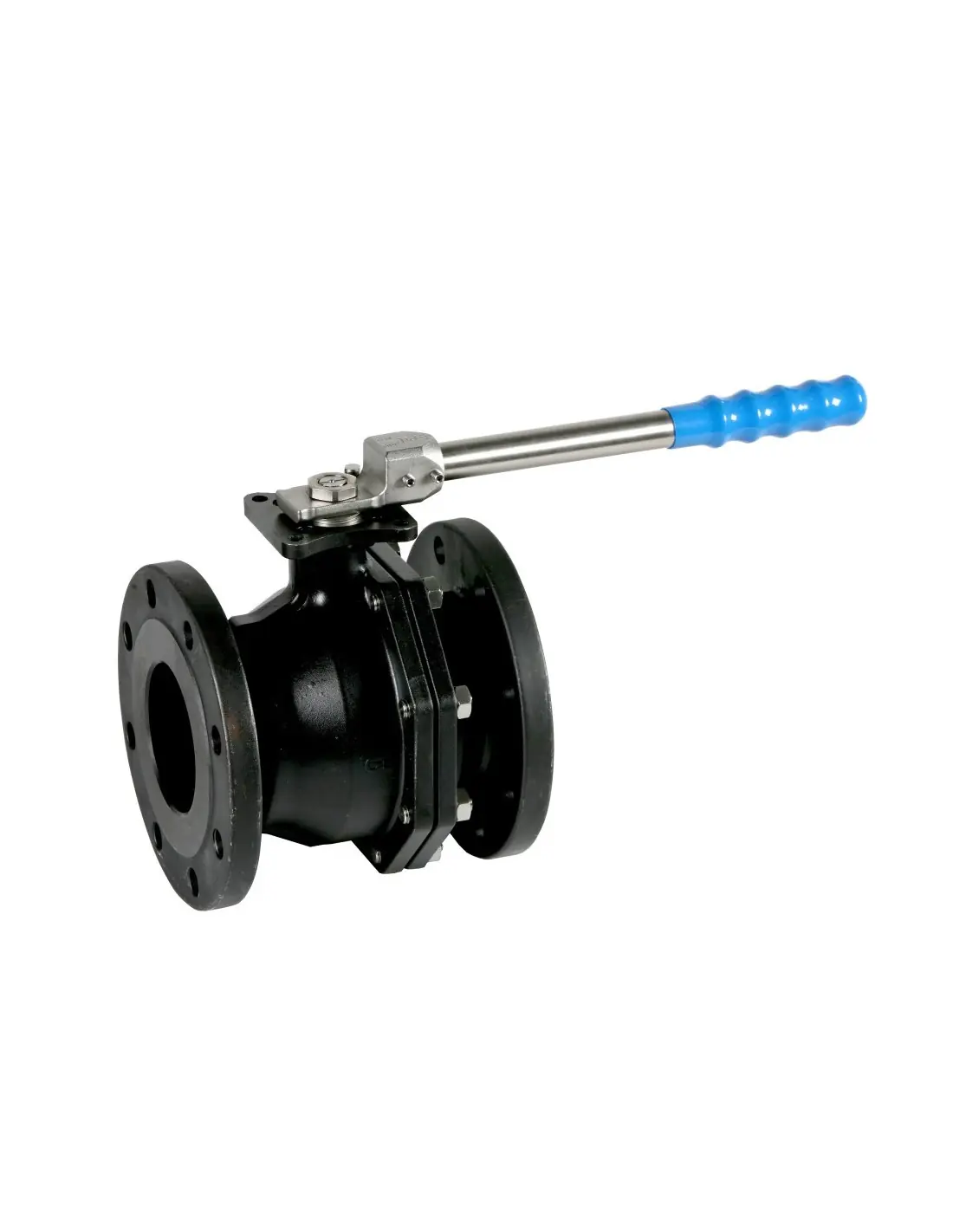

Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges ANSI B 16.5 S-150. FIRE SAFE Certification - 2526A | Genebre

Features and Benefits of Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges ANSI B 16.5 S-150. FIRE SAFE Certification - 2526A | Genebre

Upgrade your industrial pipeline system with the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges ANSI B 16.5 S-150. FIRE SAFE Certification - 2526A | Genebre. Designed for excellence, this robust valve brings precision control, maximum safety, and lasting reliability to every project.

Full Flow Efficiency: The full bore design ensures there’s no restriction to the flow, letting liquids or gases pass through smoothly. It’s the perfect choice when you need to keep your operations running at peak performance, reducing pressure drops and energy costs.
Sturdy Flanged Connections: With flanged ends that comply with ANSI B 16.5 S-150 standards, installation is secure and simple. These standardized flanges promise a leak-free setup and are compatible with most industrial pipeline systems.
Reliable Fire Safe Certification: Safety comes first. This valve boasts FIRE SAFE Certification (2526A), protecting your system in accidental high-heat situations and ensuring your facility meets strict safety regulations.
Easy Operation & Maintenance: Thanks to the two-piece construction, maintenance is fast and hassle-free. The handle offers smooth, reliable operation, making opening and closing effortless every time.
Durable Materials: Built from high-quality, corrosion-resistant materials, this valve stands up to tough industrial environments and provides a long service life, helping you avoid unnecessary downtime.
Versatile Applications: Ideal for use with water, gas, oil, and other industrial fluids, the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges ANSI B 16.5 S-150. FIRE SAFE Certification - 2526A | Genebre is a smart investment for any demanding application.

Choose the Ball Valve flanged ends - 2 pcs. Full bore ball valve flanges ANSI B 16.5 S-150. FIRE SAFE Certification - 2526A | Genebre to elevate your pipeline system and enjoy peace of mind with every operation. Trust in proven performance, trusted safety, and lasting durability—your ideal solution for industrial control and protection.

Standard (Options)

ANSI

Connection (Options)

Flanged

Material (Options)

Carbon Steel

Pressure Rating (Options)

270 lbs

Seat (Options)

PTFE + 25 % Graphite

Datasheet and documents

Technical Sheet

Description

Direct mounting for actuators s/ISO 5211. Antiestatic device. Body: carbon steel WCB (investment casting). Ball and stem: AISI 316. Seats: PTFE + 25 % Graphite. Stem o’ring: viton. Max. pressure: 19 kg/cm2. Temp. -30ºC +220ºC. Manually operated by handle with locking system.

275 Psi -22ºF + 356ºF

Reference: 2526A

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2526A 04	2PIECES BALL VALVE WITH ANSI FLANGES WCB 1/2"	1	1.524	1/14
2526A 05	2PIECES BALL VALVE WITH ANSI FLANGES WCB 3/4"	1	1.944	1/10
2526A 06	2PIECES BALL VALVE WITH ANSI FLANGES WCB 1"	1	2.717	1/8
2526A 07	2PIECES BALL VALVE WITH ANSI FLANGES WCB 1 1/4"	1	4.069	1/5
2526A 08	2PIECES BALL VALVE WITH ANSI FLANGES WCB 1 1/2"	1	5.516	1/4
2526A 09	2 PIECES BALL VALVE WITH ANSI FLANGES WCB 2"	1	8.194	1/3
2526A 10	2PIECES BALL VALVE WITH ANSI FLANGES WCB 2 1/2"	1	15.193	1/2
2526A 11	2PIECES BALL VALVE WITH ANSI FLANGES WCB 3"	1	19.244	1/1
2526A 12	2 PIECES BALL VALVE WITH ANSI FLANGES WCB 4"	1	30.66	1/1
2526A 14	2 PIECES BALL VALVE WITH ANSI FLANGES WCB 6"	1	57.15	1/1

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY

	AENOR - Homologación y Marcado N de AENOR para la línea de válvulas de gas.
	OLIVER RODÉS Water Quality - Certificados de agua potable, confirmando el cumplimiento de los criterios sanitarios de la calidad del agua para el conusmo humano RD 140/2003 de 07 de febrero (legislación española) y Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020, relativa a la calidad de las aguas destinadas al consumo humano por el Laboratorio Oliver Rodés.
	HOMOLOGACIÓN CE - Homologación CE y otras específicas para mercados como Bielorrusia, Chile, Polonia, Rusia, Ucrania, Singapur y Arabia Saudí.
	NORMA UNE-EN-ISO 9001 - Este sistema está certificado de acuerdo a la norma UNE-EN-ISO 9001: 2015, por parte del prestigioso organismo certificador alemán TÜV Rheinland..
