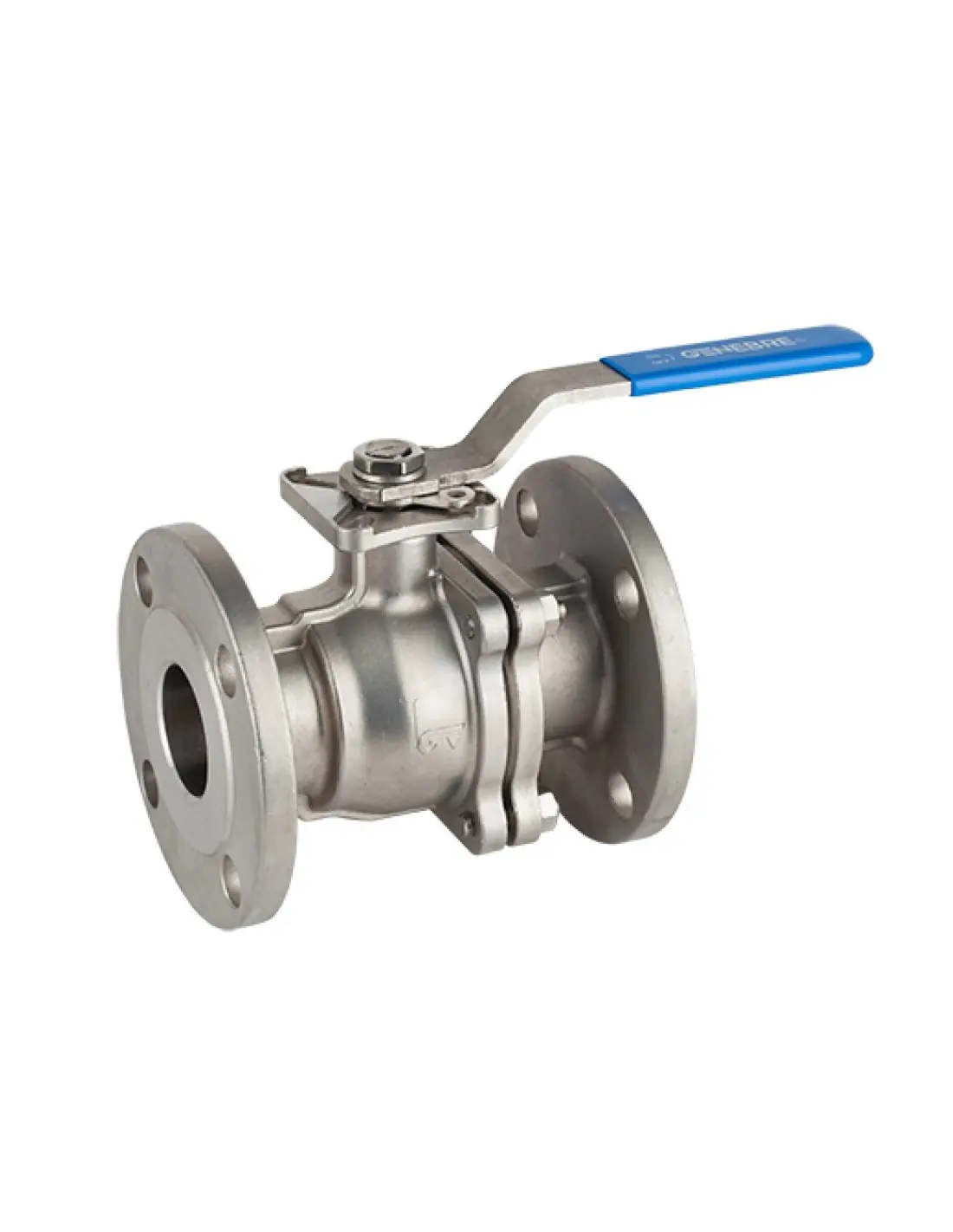

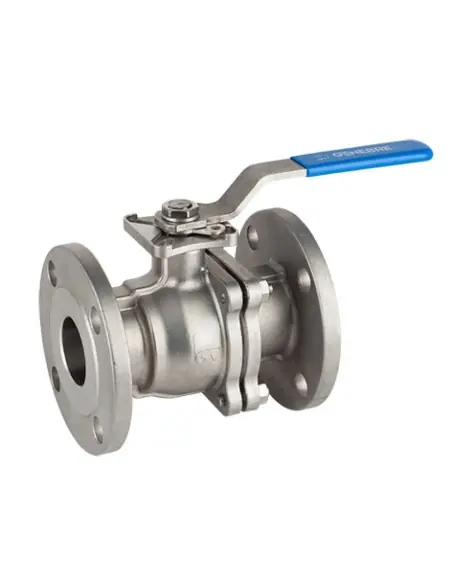

Ball Valve flanged ends - 2 pcs full bore ball valve flanges ANSI B-16.5 s-150. FIRE SAFE Certification - 2528A | Genebre

Advanced Performance Features & Benefits – Ball Valve flanged ends - 2 pcs full bore ball valve flanges ANSI B-16.5 s-150. FIRE SAFE Certification - 2528A | Genebre

Experience top-tier reliability and seamless control with the Ball Valve flanged ends - 2 pcs full bore ball valve flanges ANSI B-16.5 s-150. FIRE SAFE Certification - 2528A | Genebre. Designed for industrial applications, this valve stands out for its superior construction and advanced safety standards, making it the optimal choice for professionals who require dependable shut-off and flow control.

Robust Flanged Connection: Built according to ANSI B-16.5 s-150 standards, these flanged ends guarantee easy installation and a secure, leak-tight fit, perfect for complex piping infrastructures.
Full Bore Design: The 2-piece full bore configuration allows unobstructed flow, minimizing pressure losses and ensuring maximum efficiency during operation.
Fire Safe Certified: Safety comes first with FIRE SAFE Certification. This valve adheres to strict fire safety regulations, offering peace of mind against accidental fire hazards in demanding environments.
Heavy Duty Construction: Engineered from premium materials, this ball valve resists corrosion and stands up to continuous use, ensuring durability even under harsh industrial conditions.
Effortless Operation: The precision-engineered ball mechanism provides smooth, low-torque operation. Open and close the valve quickly and easily, reducing manual effort and downtime.
Reliable Shut-off: Achieve tight sealing every time. Its advanced design helps prevent leakage, protecting expensive equipment and supporting efficient process management.

Trust the Ball Valve flanged ends - 2 pcs full bore ball valve flanges ANSI B-16.5 s-150. FIRE SAFE Certification - 2528A | Genebre for consistent, high-performance flow control. Whether handling water, steam, oils, or gases, this valve delivers steadfast results you can count on. Upgrade to reliable technology that supports productivity and safeguards your operations.

Standard (Options)

ANSI

Connection (Options)

Flanged

Material (Options)

Stainless Steel

Pressure Rating (Options)

275 lbs

Seat (Options)

PTFE + 15 % G.F

Description

Direct mounting for actuators ISO 521.

Body: stainless steel CF8M (316). Seats: PTFE + 15% GF. Max. pressure: 19 kg/cm2. Temp.: -30ºC +180ºC. Manually operated by handle.

275 Psi -22ºF + 356ºF

Reference: 2528A

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2528A 04	2PIECES FULL BORE BALL VALVE WITH FLANGES INOX-316 1/2" S-15	1	1.523	1/10
2528A 05	2 PIECES FULL BORE BALL VALVE FLANGES INOX-316 3/4" S-150	1	1.945	1/10
2528A 06	2 PIECES FULL BORE BALL VALVE WITH FLANGES INOX-316 1" S-150	1	2.696	1/8
2528A 07	2 PIECES FULL BORE BALL VALVE WITH FLANGES INOX-316 1 1/4"S	1	4.067	1/5
2528A 08	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 1 1/2"S-150	1	5.482	1/4
2528A 09	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 2" S-150	1	8.113	1/3
2528A 10	2PIECES FULL BORE BALL VALVE FLANGE INOX-316 2 1/2"S-150	1	15.101	1/1
2528A 11	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 3" S-150	1	18.939	1/1
2528A 12	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 4" S-150	1	30.474	1/1
2528A 14	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 6" S-150	1	56.313	1/1
2528A 16	2PIECES FULL BORE BALL VALVE FLANGES INOX-316 8" S-150	1	129.2	1/1
